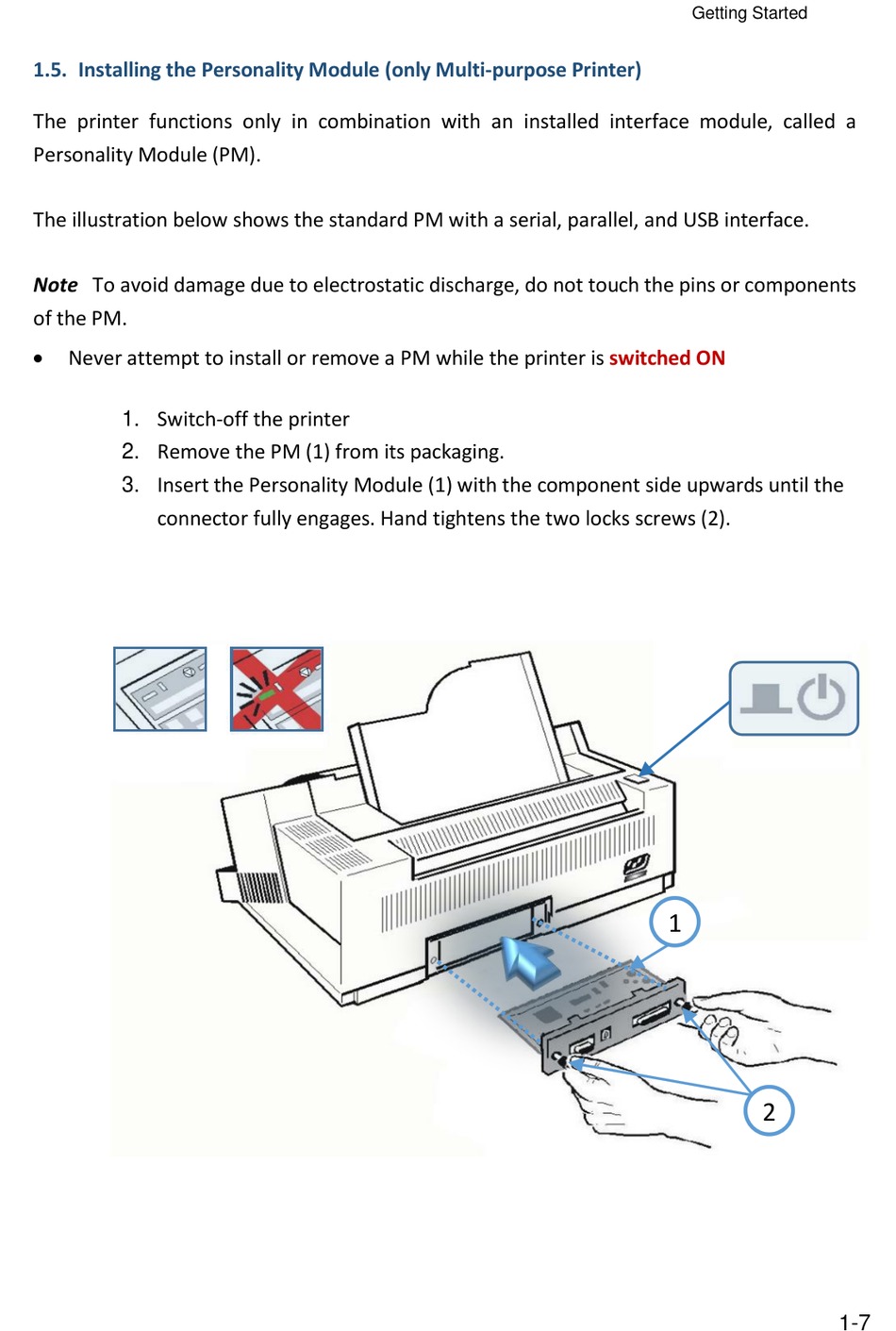

1.5. Installing the Personality Module (only Multi-purpose Printer)

The printer functions only in combination with an installed interface module, called a
Personality Module (PM).
The illustration below shows the standard PM with a serial, parallel, and USB interface.
Note To avoid damage due to electrostatic discharge, do not touch the pins or components
of the PM.

Never attempt to install or remove a PM while the printer is
1. Switch-off the printer
2. Remove the PM (1) from its packaging.
3. Insert the Personality Module (1) with the component side upwards until the
connector fully engages. Hand tightens the two locks screws (2).
Getting Started
switched ON
1
2
