4.2 Diagrams of Errors

4.2.1

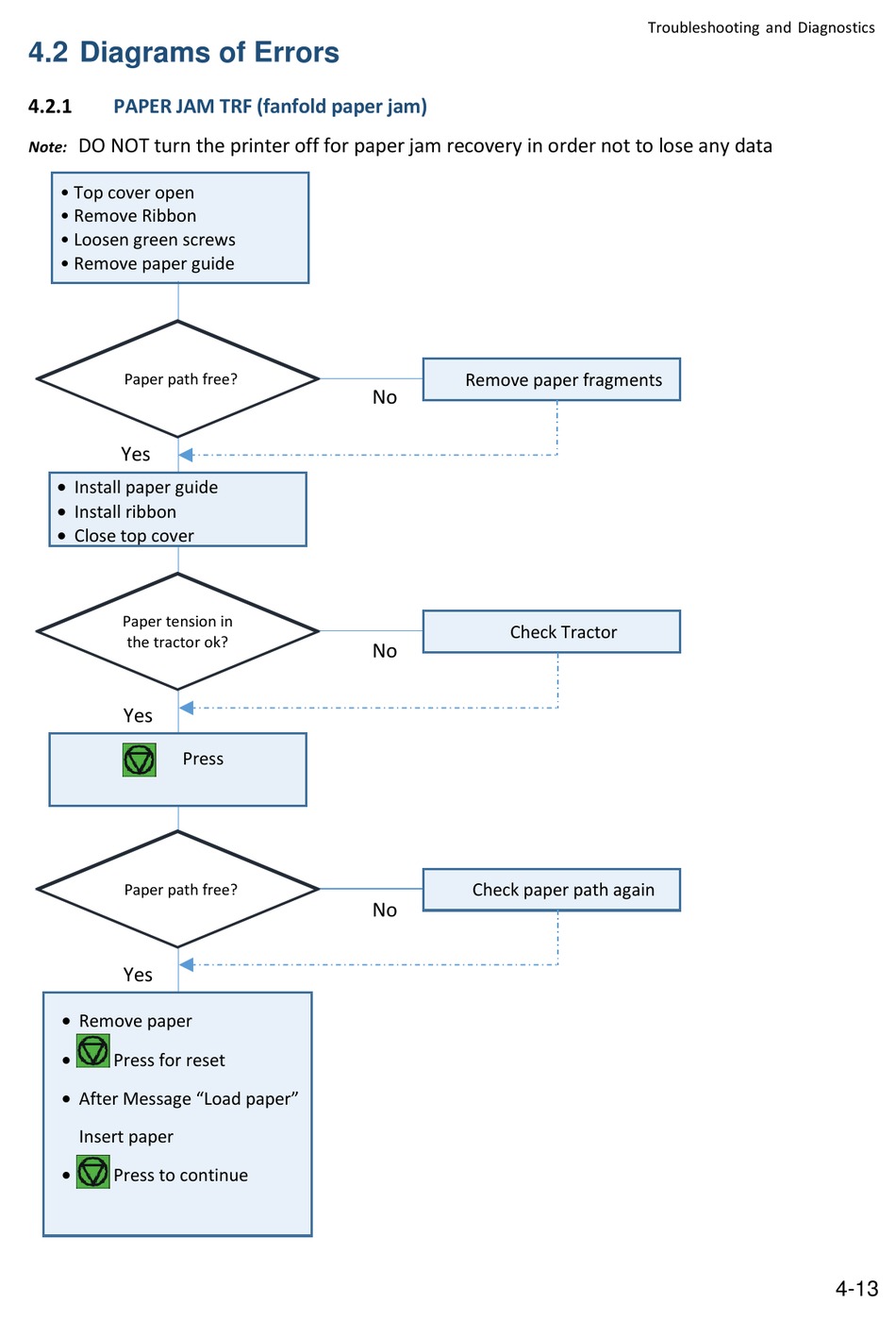

PAPER JAM TRF (fanfold paper jam)

DO NOT turn the printer off for paper jam recovery in order not to lose any data
Note:
• Top cover open
• Remove Ribbon
• Loosen green screws
• Remove paper guide
Papierweg
Paper path free?
frei?
Yes
 Install paper guide
 Install ribbon
 Close top cover
Papierweg
Paper tension in
the tractor ok? frei?
Yes
Press
Papierweg
Paper path free?
frei?
Yes
 Remove paper

Press for reset
 After Message "Load paper"
Insert paper

Press to continue
Remove paper fragments
No
Check Tractor
No
Check paper path again
No
