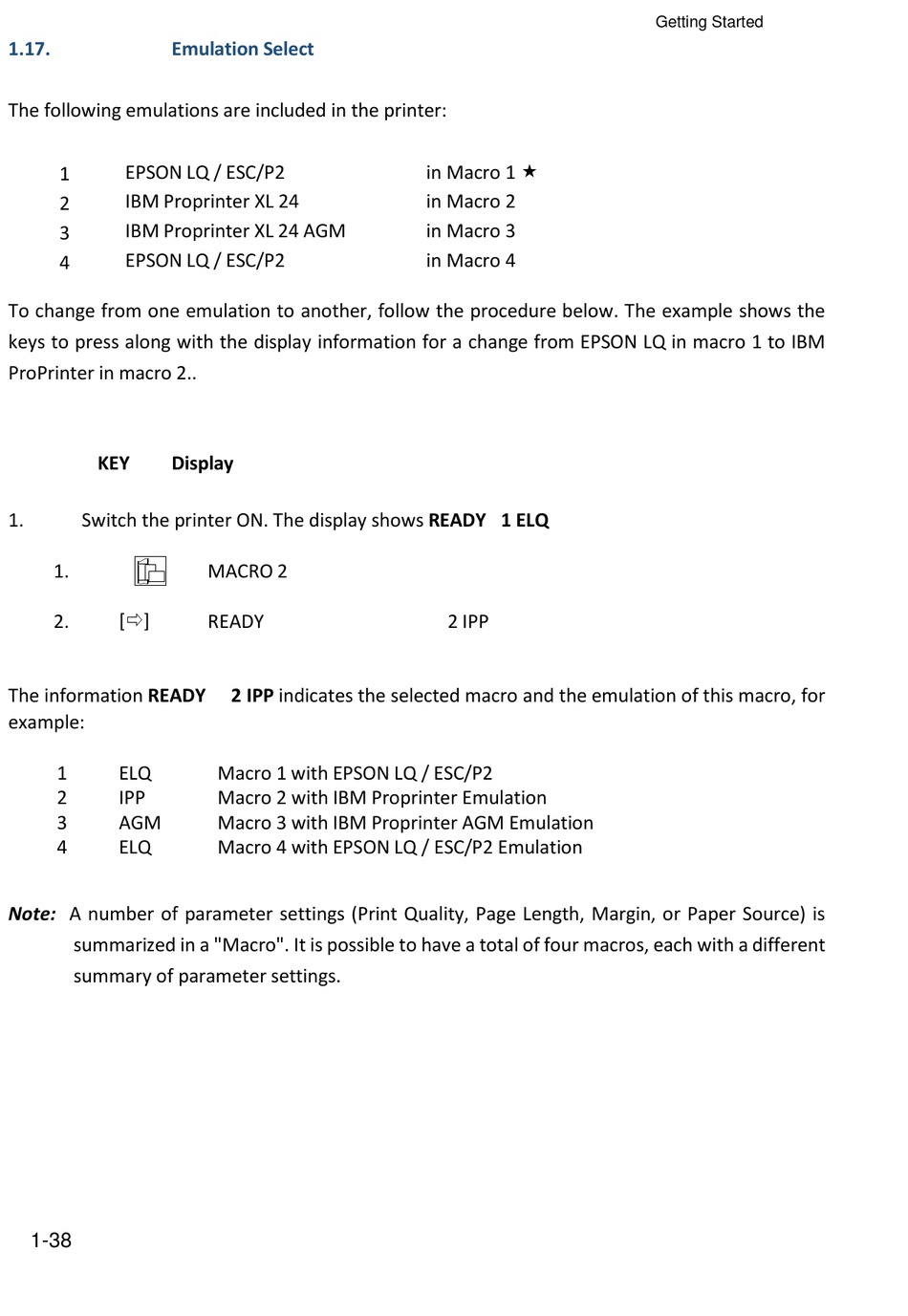

Emulation Select - Microplex PP 404 User Manual

1.17.
The following emulations are included in the printer:
EPSON LQ / ESC/P2
1
IBM Proprinter XL 24
2
IBM Proprinter XL 24 AGM
3
EPSON LQ / ESC/P2
4
To change from one emulation to another, follow the procedure below. The example shows the
keys to press along with the display information for a change from EPSON LQ in macro 1 to IBM
ProPrinter in macro 2..
KEY
1. Switch the printer ON. The display shows READY 1 ELQ
1.
[]
2.
The information READY
example:
1 ELQ
2 IPP
3 AGM
4 ELQ
Note: A number of parameter settings (Print Quality, Page Length, Margin, or Paper Source) is
summarized in a "Macro". It is possible to have a total of four macros, each with a different
summary of parameter settings.
1-38

Emulation Select

Display
MACRO 2
READY
2 IPP indicates the selected macro and the emulation of this macro, for
Macro 1 with EPSON LQ / ESC/P2
Macro 2 with IBM Proprinter Emulation
Macro 3 with IBM Proprinter AGM Emulation
Macro 4 with EPSON LQ / ESC/P2 Emulation
in Macro 1 
in Macro 2
in Macro 3
in Macro 4
2 IPP
Getting Started
