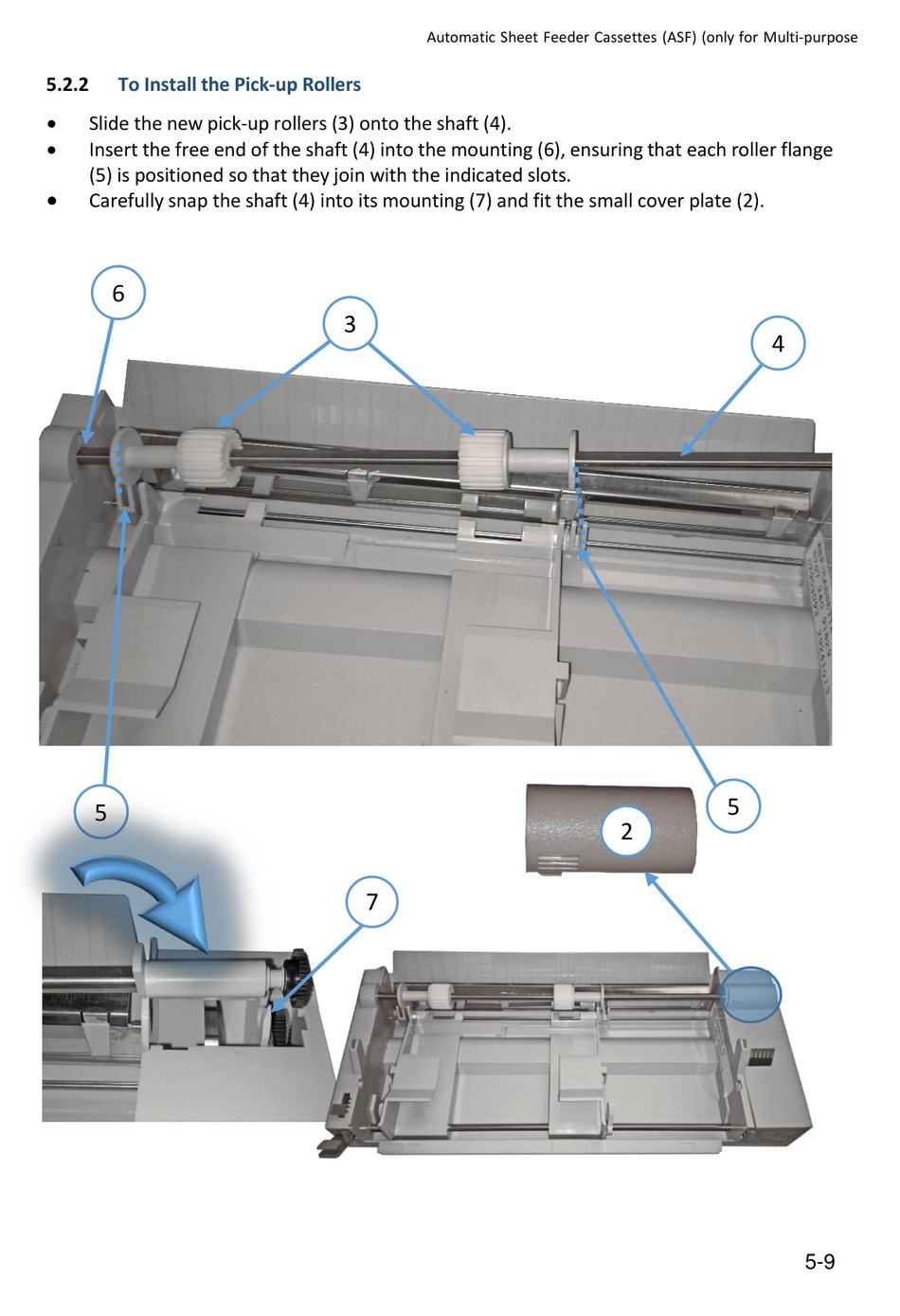

To Install the Pick-up Rollers


Slide the new pick-up rollers (3) onto the shaft (4).

Insert the free end of the shaft (4) into the mounting (6), ensuring that each roller flange
(5) is positioned so that they join with the indicated slots.

Carefully snap the shaft (4) into its mounting (7) and fit the small cover plate (2).
