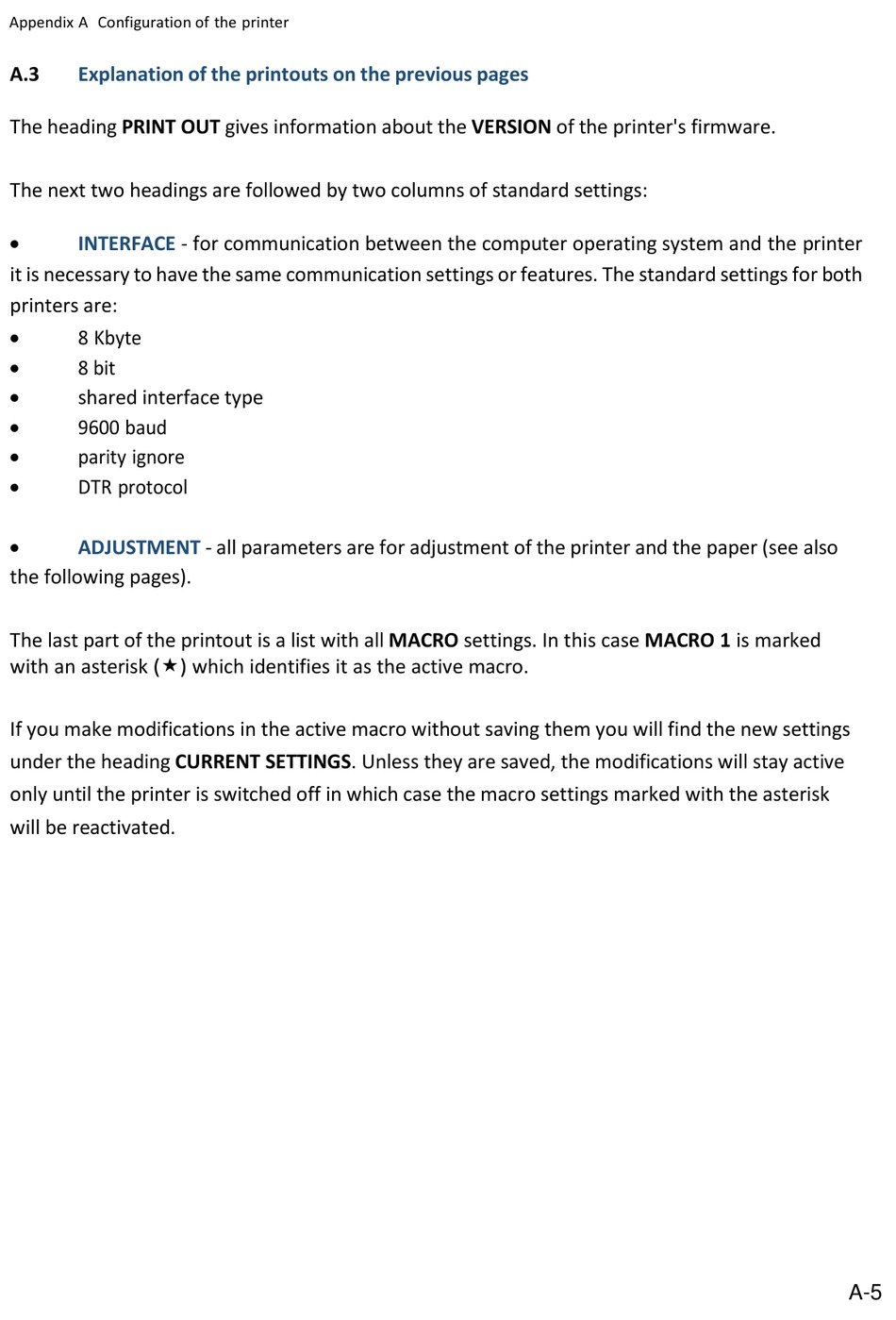

A.3 Explanation of the printouts on the previous pages
The heading PRINT OUT gives information about the VERSION of the printer's firmware.
The next two headings are followed by two columns of standard settings:

INTERFACE
it is necessary to have the same communication settings or features. The standard settings for both
printers are:

8 Kbyte

8 bit

shared interface type

9600 baud

parity ignore

DTR protocol

ADJUSTMENT
the following pages).
The last part of the printout is a list with all MACRO settings. In this case MACRO 1 is marked
with an asterisk () which identifies it as the active macro.
If you make modifications in the active macro without saving them you will find the new settings
under the heading CURRENT SETTINGS. Unless they are saved, the modifications will stay active
only until the printer is switched off in which case the macro settings marked with the asterisk
will be reactivated.
- for communication between the computer operating system and the printer
- all parameters are for adjustment of the printer and the paper (see also
