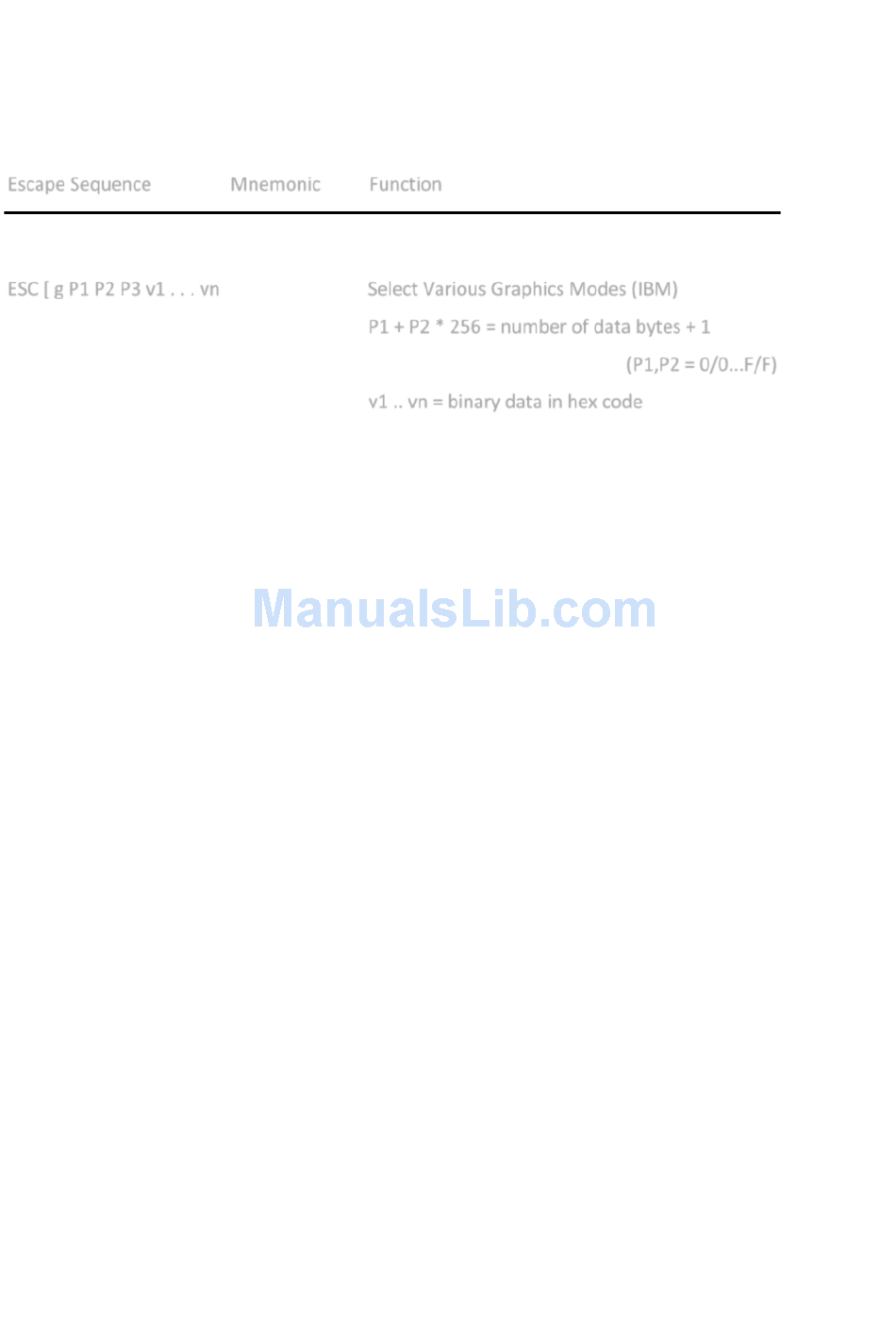

Table 6: (Cont.) Graphics Modes
Escape Sequence
ESC [ g P1 P2 P3 v1 . . . vn
Parameter Table Graphic Density:
P3 Graphic type
0/0 Standard Density (K)
0/1 Double Density (L)
0/2 2xDensity / 2xSpeed (Y)
0/3 Quadruple Density (Z)
0/8 Standard Density
0/9 Double Density
0/B Triple Density
0/C Hex Density
*) consecutive horizontal dots cannot be printed.
box 8x8 dots with center point 2x2 dots, standard density, 8 dots / column
Example:
hex: 1B 5B 67 09 00 00 FF 81 81 99 99 81 81 FF
Mnemonic
Function
Select Various Graphics Modes (IBM)
P1 + P2 * 256 = number of data bytes + 1
v1 .. vn = binary data in hex code
dots
max.
per
of
column
columns
8
816
8
1632
8
1632
8
3264
24
816
24
1632
24
2448
24
4896
Appendix E EPSON LQ 2550 and ESC/P2 Quick Reference
hor.
density
( dpi )
60
120
120
240
60
120
180 1
360
(P1,P2 = 0/0...F/F)
vert.
vert.
density
density
no AGM
AGM
72
60
72
60
72
60
72
60
180
180
180
180
80
180
180
180
*)
*)
*)
E-15
