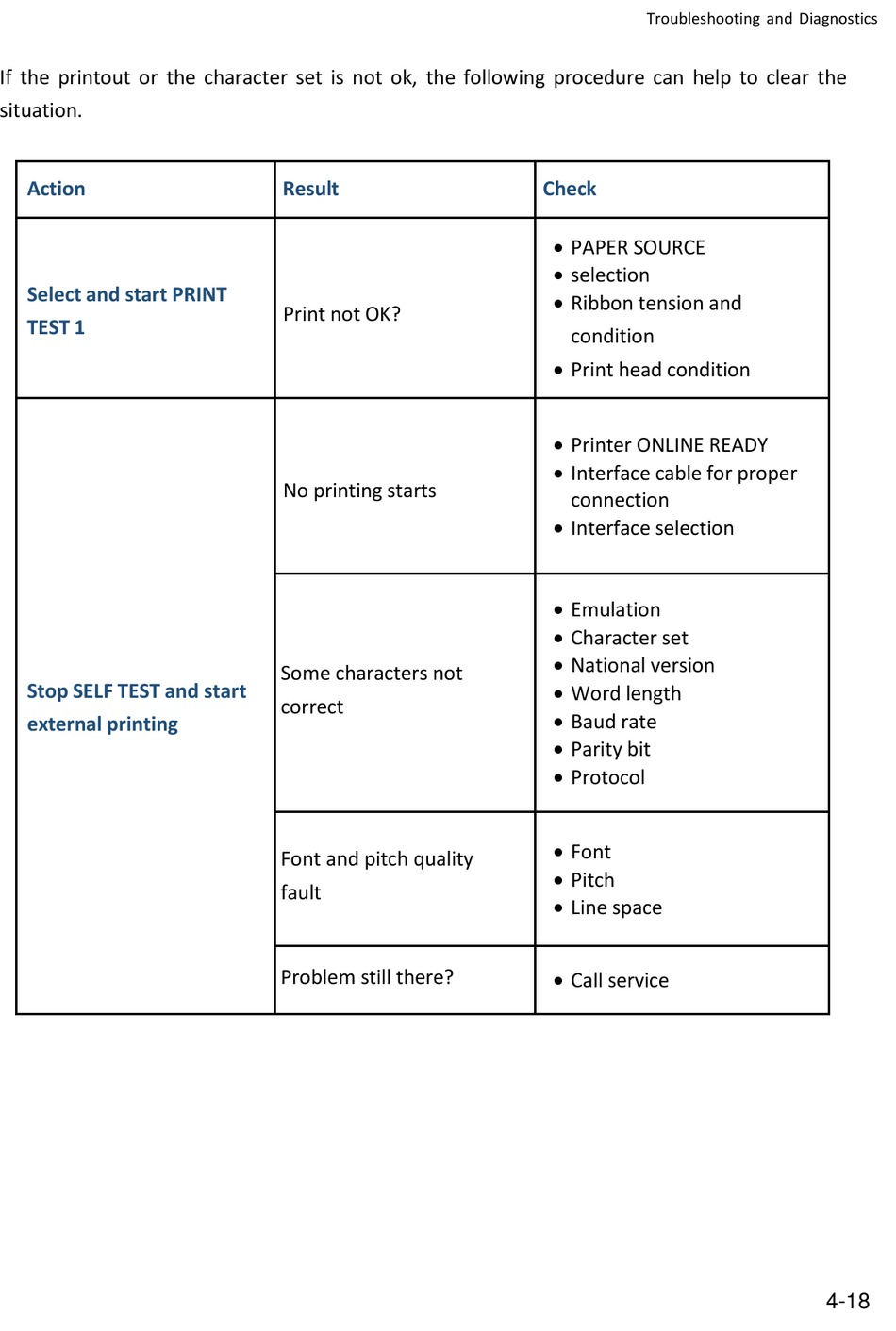

If the printout or the character set is not ok, the following procedure can help to clear the
situation.
Action
Select and start PRINT
TEST 1
Stop SELF TEST and start
external printing
Result
Print not OK?
No printing starts
Some characters not
correct
Font and pitch quality
fault
Problem still there?
Troubleshooting and Diagnostics
Check
 PAPER SOURCE
 selection
 Ribbon tension and
condition
 Print head condition
 Printer ONLINE READY
 Interface cable for proper
connection
 Interface selection
 Emulation
 Character set
 National version
 Word length
 Baud rate
 Parity bit
 Protocol
 Font
 Pitch
 Line space
 Call service
4-18
