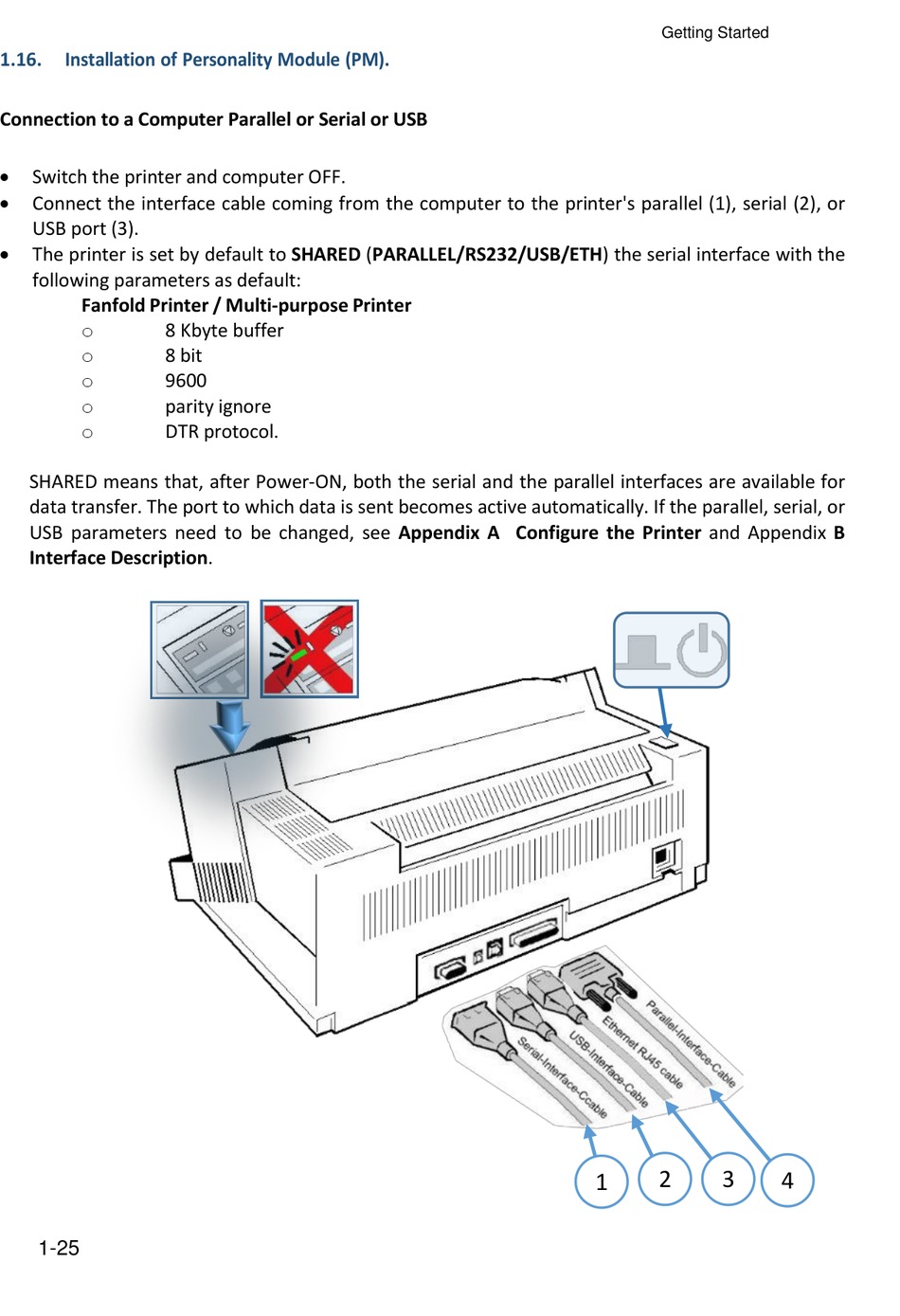

Installation of Personality Module (PM).

Connection to a Computer Parallel or Serial or USB


Switch the printer and computer OFF.

Connect the interface cable coming from the computer to the printer's parallel (1), serial (2), or
USB port (3).

The printer is set by default to SHARED (PARALLEL/RS232/USB/ETH) the serial interface with the
following parameters as default:
Fanfold Printer / Multi-purpose Printer
o
o
o
o
o
SHARED means that, after Power-ON, both the serial and the parallel interfaces are available for
data transfer. The port to which data is sent becomes active automatically. If the parallel, serial, or
USB parameters need to be changed, see Appendix A Configure the Printer and Appendix B
Interface Description.
1-25
8 Kbyte buffer
8 bit
9600
parity ignore
DTR protocol.
Getting Started
2 3
1
4
