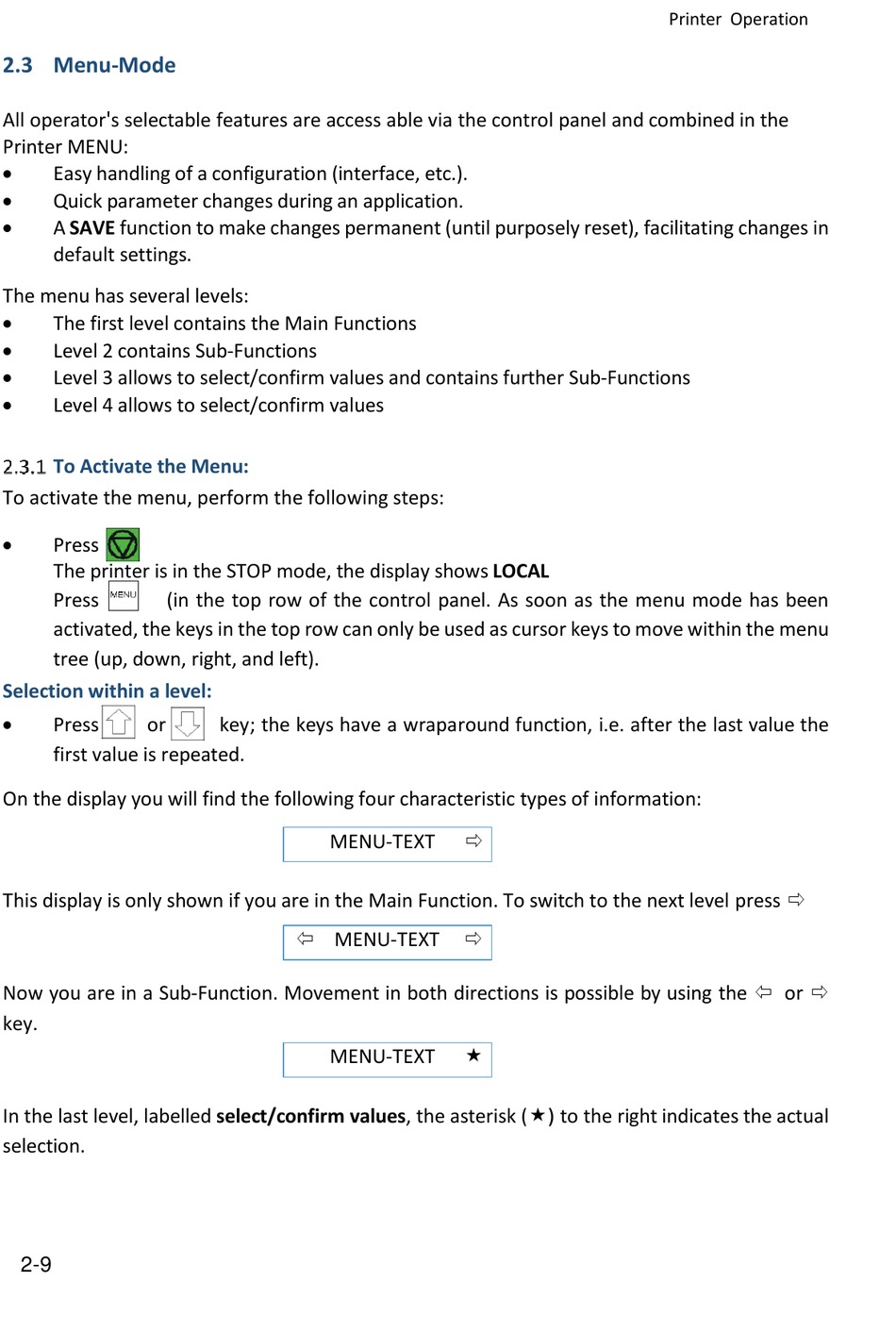

2.3 Menu-Mode

'
All operator s selectable features are access able via the control panel and combined in the
Printer MENU:

Easy handling of a configuration (interface, etc.).

Quick parameter changes during an application.

A SAVE function to make changes permanent (until purposely reset), facilitating changes in
default settings.
The menu has several levels:

The first level contains the Main Functions

Level 2 contains Sub-Functions

Level 3 allows to select/confirm values and contains further Sub-Functions

Level 4 allows to select/confirm values

To Activate the Menu:

To activate the menu, perform the following steps:

Press
The printer is in the STOP mode, the display shows LOCAL
Press
activated, the keys in the top row can only be used as cursor keys to move within the menu
tree (up, down, right, and left).
Selection within a level:

Press or
first value is repeated.
On the display you will find the following four characteristic types of information:
This display is only shown if you are in the Main Function. To switch to the next level press 
Now you are in a Sub-Function. Movement in both directions is possible by using the  or 
key.
In the last level, labelled select/confirm values, the asterisk () to the right indicates the actual
selection.
2-9
(in the top row of the control panel. As soon as the menu mode has been
key; the keys have a wraparound function, i.e. after the last value the
 MENU-TEXT

MENU-TEXT


MENU-TEXT
