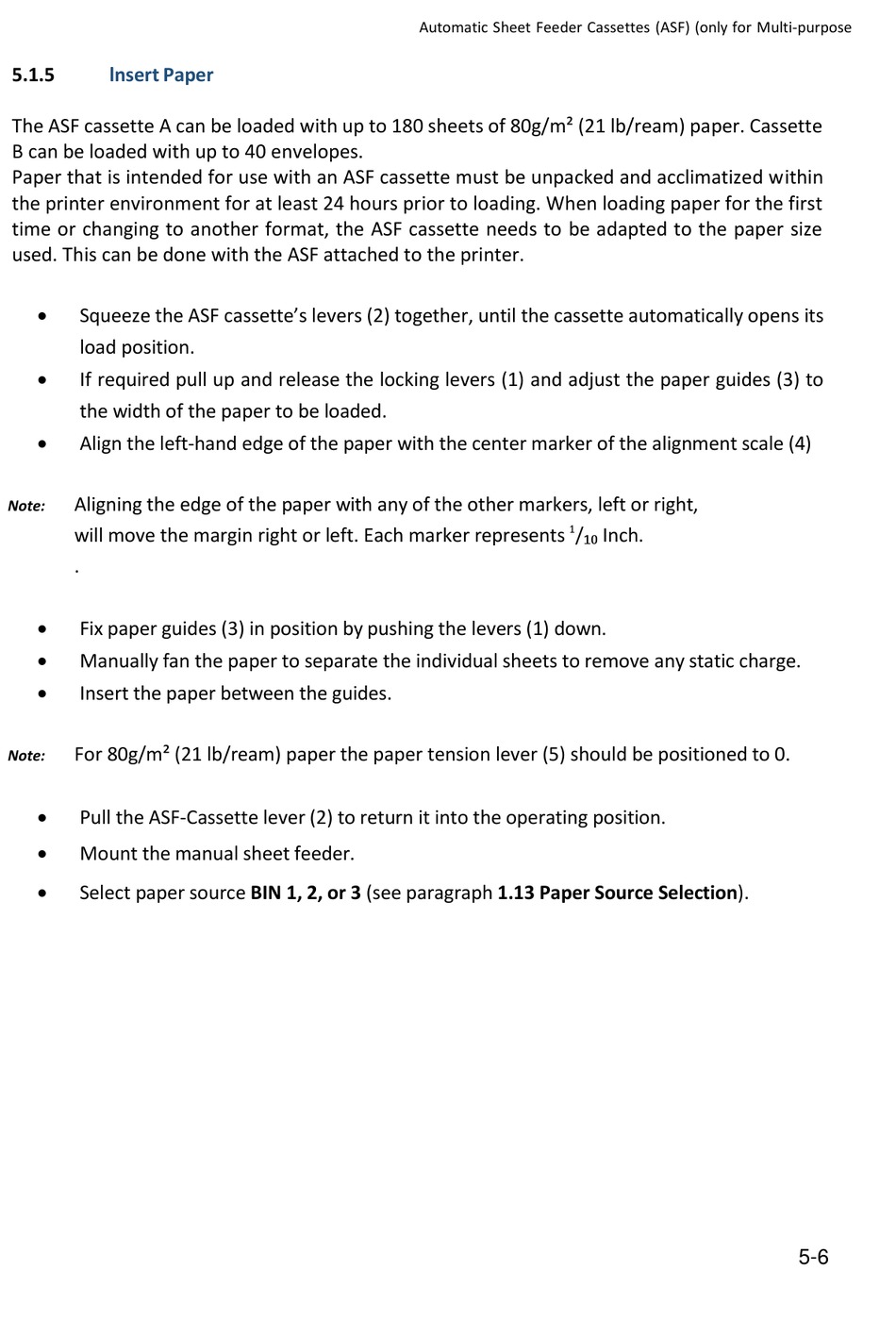

5.1.5

lnsert Paper

The ASF cassette A can be loaded with up to 180 sheets of 80g/m² (21 lb/ream) paper. Cassette
B can be loaded with up to 40 envelopes.
Paper that is intended for use with an ASF cassette must be unpacked and acclimatized within
the printer environment for at least 24 hours prior to loading. When loading paper for the first
time or changing to another format, the ASF cassette needs to be adapted to the paper size
used. This can be done with the ASF attached to the printer.

Squeeze the ASF cassette's levers (2) together, until the cassette automatically opens its
load position.

If required pull up and release the locking levers (1) and adjust the paper guides (3) to
the width of the paper to be loaded.

Align the left-hand edge of the paper with the center marker of the alignment scale (4)
Aligning the edge of the paper with any of the other markers, left or right,
Note:
will move the margin right or left. Each marker represents
.

Fix paper guides (3) in position by pushing the levers (1) down.

Manually fan the paper to separate the individual sheets to remove any static charge.

Insert the paper between the guides.
For 80g/m² (21 lb/ream) paper the paper tension lever (5) should be positioned to 0.
Note:

Pull the ASF-Cassette lever (2) to return it into the operating position.

Mount the manual sheet feeder.

Select paper source BIN 1, 2, or 3 (see paragraph 1.13 Paper Source Selection).
Automatic Sheet Feeder Cassettes (ASF) (only for Multi-purpose
Printer)
1
/ Inch.
10
5-6
