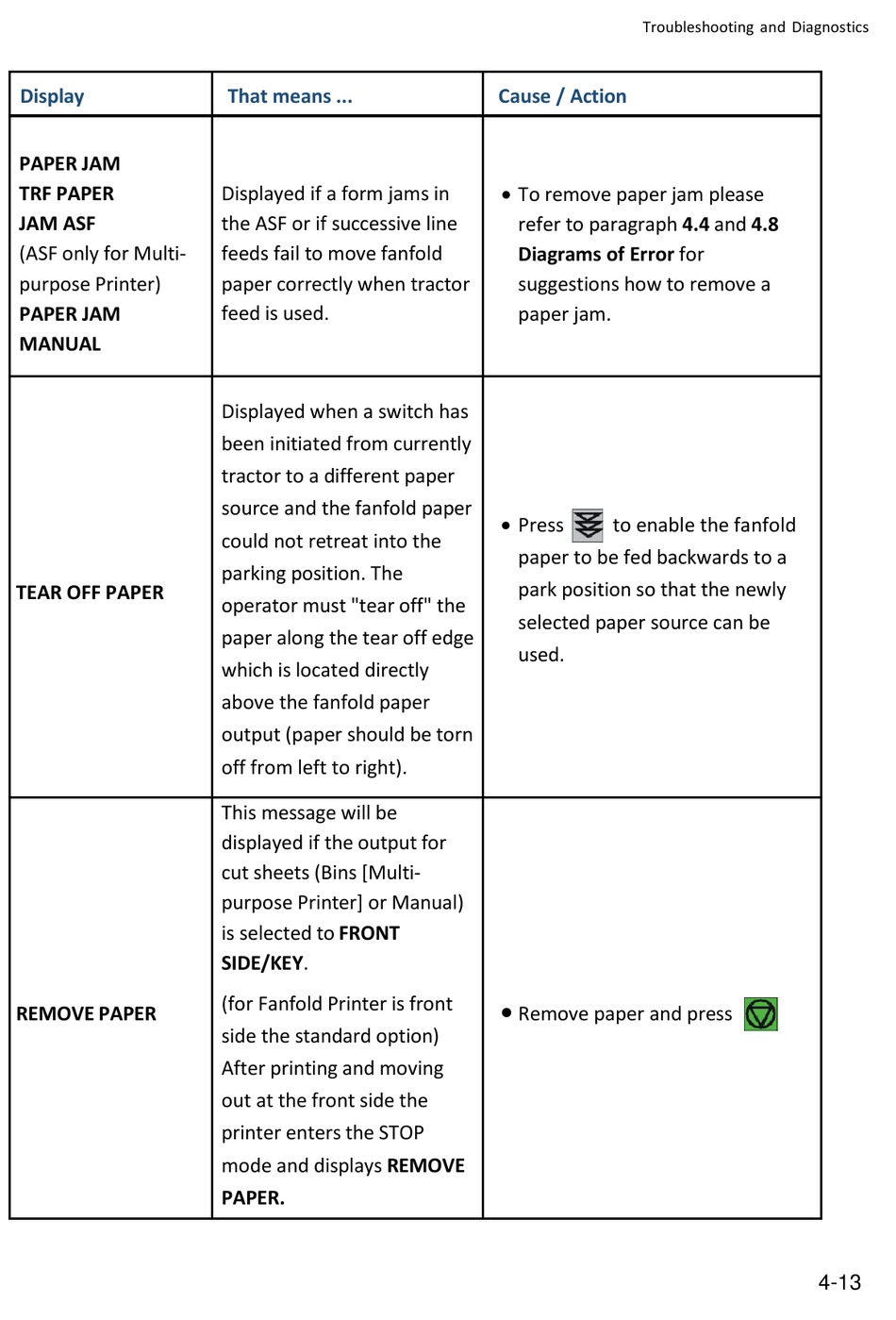

Microplex PP 404 User Manual page 73

Display
PAPER JAM
TRF PAPER
JAM ASF
(ASF only for Multi-
purpose Printer)
PAPER JAM
MANUAL
TEAR OFF PAPER
REMOVE PAPER
That means ...
Displayed if a form jams in
the ASF or if successive line
feeds fail to move fanfold
paper correctly when tractor
feed is used.
Displayed when a switch has
been initiated from currently
tractor to a different paper
source and the fanfold paper
could not retreat into the
parking position. The
operator must "tear off" the
paper along the tear off edge
which is located directly
above the fanfold paper
output (paper should be torn
off from left to right).
This message will be
displayed if the output for
cut sheets (Bins [Multi-
purpose Printer] or Manual)
is selected to FRONT
SIDE/KEY.
(for Fanfold Printer is front
side the standard option)
After printing and moving
out at the front side the
printer enters the STOP
mode and displays REMOVE
PAPER.
Troubleshooting and Diagnostics
Cause / Action
 To remove paper jam please
refer to paragraph 4.4 and 4.8
Diagrams of Error for
suggestions how to remove a
paper jam.
 Press
to enable the fanfold
paper to be fed backwards to a
park position so that the newly
selected paper source can be
used.

Remove paper and press
4-13
