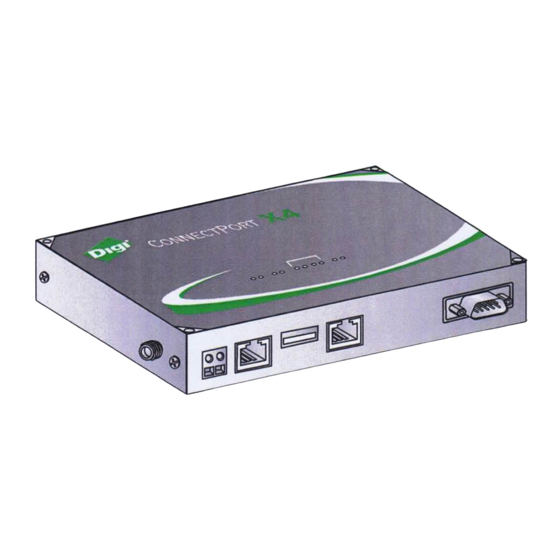

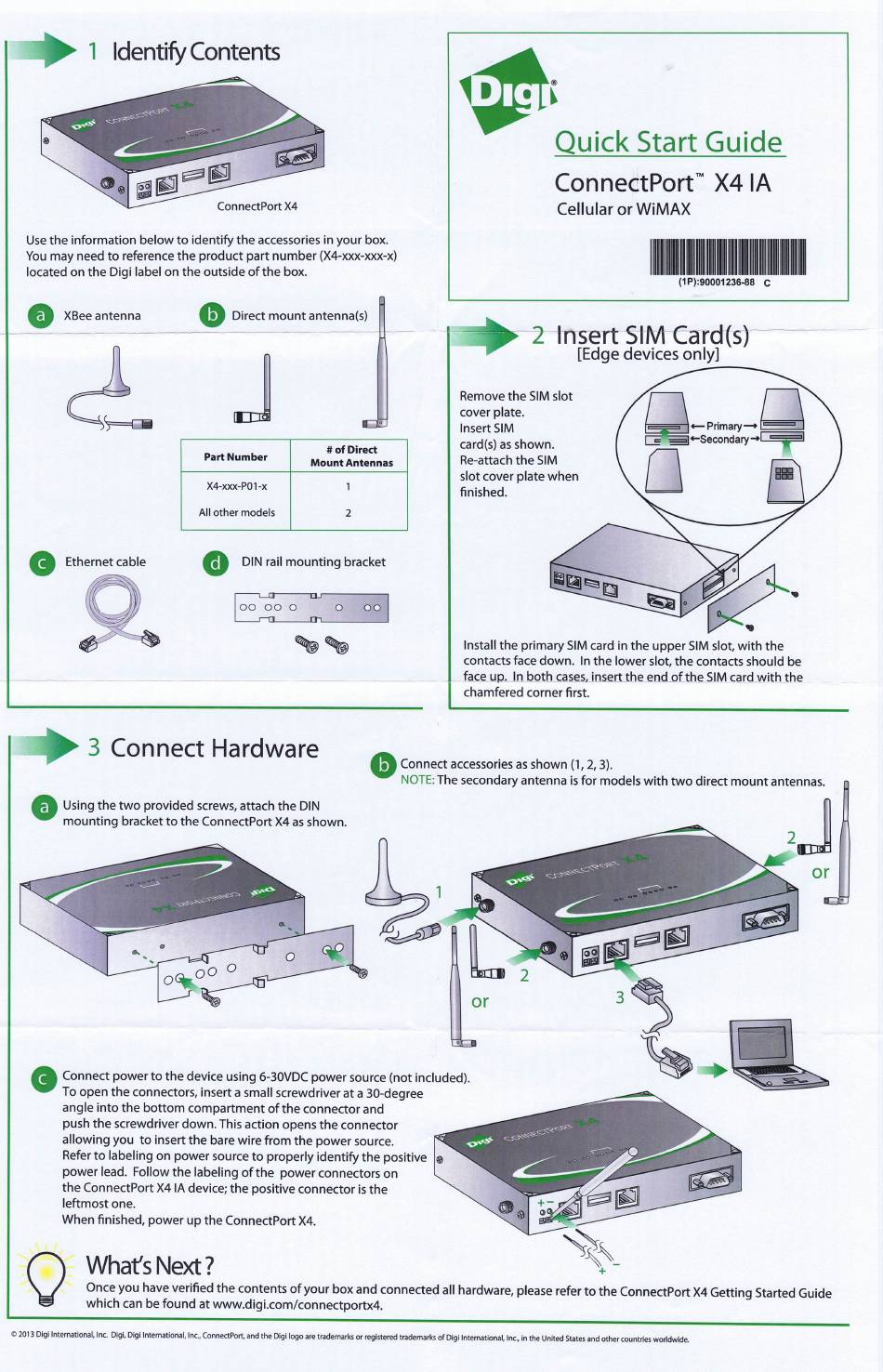

Summary of Contents for Digi ConnectPort X4 IA

  • Page 4 POWERDASH DAS THREE LINE DIAGRAM...
  • Page 5 POWERDASH DAS DAS SCHEMATIC VTs AND CTs DIAGRAM CELL TEMPERATURE SENSOR INSTALLATION WEATHER STATION DAISY CHAIN CONNECTION FOR RS-485...
  • Page 6 POWERDASH DAS DAS SCHEMATIC CELL TEMPERATURE SENSOR INSTALLATION DAISY CHAIN CONNECTION FOR RS-485 WEATHER STATION VTs AND CTs DIAGRAM DATA COLLECTION OF KYZ PULSE SOCKET METER...
  • Page 7 -100-2 User’s Guide Date: 8/10/12 Revision: 2...
  • Page 8 Copyright© 2012 by RainWise, Inc. All rights reserved. No part of this work may be reproduced in any form except by written permission of the publisher. All rights of translation are reserved. ™ is a trademark of RainWise, Inc. - 2 -...

  • Page 9: Installing The Weather Station

    INTRODUCTION     NPACKING THE YSTEM INSTALLING THE WEATHER STATION     EQUIREMENTS AND ONSIDERATIONS   NSTALLATION Weather Station   Irradiance Sensor   PV Temperature Sensors     IRING Connecting External PV Sensor   Connecting RS-485   Connecting the Power Supply  ...

  • Page 10: Hardware Specifications

    Enclosure:   Pyranometer Sensor:   Ambient Air Temperature Sensor:   PV Panel Temperature Sensors:   Power and Communications Cable:   Electronics:   HARDWARE SPECIFICATIONS   Power Specifications:   Operating Environment:   Pyranometer Sensor:   Ambient Air Temperature Sensor:   PV Panel Temperature Sensors:  ...
  • Page 11 Introduction The PV -100-2 weather station is a compact and economical solution designed to monitor the efficiency of photovoltaic installations. It measures ambient air temperature, PV panel temperature and either global or plane of array irradiance. The PV -100-2 is Sunspec compliant and uses a 2-wire half duplex serial port for Modbus communication to a host.
  • Page 12 Installation Weather Station Mount the support mast securely. This may be done by using the Mono-Mount or Tripod, which is sold as an accessory to the PV -100-2. The mast may also be attached to a support structure using U-Bolts. Do not tighten the support structure to the PV -100-2 unit;...
  • Page 13 If the cable length of 25ft. is insufficient for the installation, additional cable can be added to the existing cable. If this is done, an accuracy-derating factor must be added to the overall temperature accuracy of this sensor. For every 100ft. of cable added, a derating factor of -0.125C must be taken into account.
  • Page 14 PV Temp #1: Signal PV Temp #1 Shield: Cable Shield and Drain Connecting RS-485 The PV -100-2 is supplied with a half duplex RS-485/422 serial port. The default firmware build supports RS-422 only. Custom firmware builds are addressable and support integration into RS-485 networks. Contact RainWise for further information. Wiring connections are made using the 4-pin screw terminal inside of the PV -100-2 electronics enclosure.
  • Page 15 - 9 -...
  • Page 16 SunSpec and Modbus The PV -100-2 follows the SunSpec standard. Refer to the official SunSpec specifications for application information. The full register map is listed below. The -100-2 has the following default communication settings: Serial/ General Baud Rate 9600 Parity None Stop Bits RS-232...
  • Page 17 0076 0076 1 E_BaseMet_Wind_Direc int16 Degrees Wind Direction tion 0077 0077 1 E_BaseMet_Rain int16 Inches Rainfall 0078 0078 1 E_BaseMet_Snow int16 Inches Snowfall since last poll 0079 0079 1 E_BaseMet_PPT_Type int16 Inches Precipitation Type (WMO 4680 SYNOP code reference) 0080 0080 1 E_BaseMet_Electric_Fie int16...
  • Page 18 In order to use the Modbus method to change a device address you must know the current device address. If you do not know the address and cannot scan for it, you will have to use the Command Mode. The command mode requires a PC and does not require an address.
  • Page 19 Command Mode: By default, the PV -100-2 will boot in Modbus mode and will not respond to the commands listed here. To enter the command mode issue three '+' characters one second apart. The PV -100-2 will return a message indicating that it is in command mode. After one minute of inactivity it will exit command mode and return to the default Modbus mode.
  • Page 20 Description: Returns the current values in a comma-delimited format. The order of the data values correspond to the output of the HEADER command. NO DATA is returned if the unit has not received a transmission from the weather station. Values: None Syntax: Sample Response:...
  • Page 21 Rainwise Inc PVMET-100-2 Version: 1.1 Build 001 Jun 17 Modbus Device Address: MBID Description: The Modbus device address can be viewed or changed using this command. The default is address is 60 Values: ?,1 - 255 Syntax (Read): MBID=? Syntax (Write): MBID=60 Sample Read Response: Sample Write Response:...
  • Page 22 Sample Response: Existing Command Mode... Calculating the Checksum: The PV -100-2 uses a 16 CRC checksum. The CRC uses the same polynomial as the one used in Xmodem transfers (XMODEM-CRC). The Polynomial is as follows: The CRC calculation starts at the first ASCII character of the response. Leading carriage return line feeds are not included.
  • Page 23 /* **************************************************************************** /* Return CRC accumulator /* ****************************************************************************/ unsigned short int crc16Acc(void) unsigned short int tmp= acc, retval; crc16Add(0); crc16Add(0); // add two zeros to get a valid crc retval= acc; acc= tmp; //restore acc return retval; - 17 -...

  • Page 24: Software/Firmware Updates

    Software/Firmware Updates The software or firmware in the PV -100-2 can be updated or changed using the RS- 485 port. Make sure you read the update instructions carefully and be sure you are installing the correct software. As with all updates, there are risks associated with changing the flash memory.

  • Page 25: Maintenance

    Maintenance The station requires minimal maintenance. At least once a year, the station should be visually inspected. When visually inspecting the station, make sure that the front of the enclosure is facing the equator. Check to see if the sensor assembly is vertically level. When inspecting the PV cell temperature sensor, check for any damage to the sensor head or cabling.

  • Page 26: Material Specifications

    Material Specifications Sensor Assembly: RoHS Compliant Mast: Polyvinyl Chloride Heat Shields: Acrylonitrile Butadiene Styrene Insolation Senors Bracket: Anodized Aluminum Hardware: Stainless Steel and Nylon Locknut Foam Gasket: Vinyl and Acrylic Enclosure: RoHS Compliant IP65 Rated Outdoor Enclosures UL 94 V-2 Body: Polycarbonate Pyranometer Sensor:...
  • Page 27 Hardware Specifications Power Specifications: Power Requirements: 10 to 30VDC at less then 50mA Operating Environment: Temperature: -40°C to 60°C (-40 to 140°F) Humidity: 0-100% Condensing Pyranometer Sensor: Range: 0-1750 W/m Accuracy: +/-5% Cosine Response 45° +/-1% Cosine Response 75° +/-5% Operational Temperature: -25 to 55°C (-13 to 131°F) Ambient Air Temperature Sensor:...

  • Page 28: Contact Information

    Contact Information RainWise Inc. Bar Harbor, ME 04609 USA Phone: (207)-288-5169 Warranty RainWise, Inc. warrants RainWise, Inc. manufactured PV products against defects in materials and/or workmanship for a period of two years from the date of purchase and agrees to repair or replace any defective product without charge. Equipment supplied by RainWise but not manufactured by RainWise is covered by the particular warranty of that manufacturer.
  • Page 35 INSTALLATION GUIDE POWER MONITORING Compact Bi-Directional Power and Energy Meter Installer’s Specifications Measurement Accuracy: Real Power and Energy IEC 62053-22 Class 0.5S, ANSI C12.20 0.5% Reactive Power and Energy IEC 62053-23 Class 2, 2% Current 0.4% (+0.015% per °C deviation from 25°C) from 5% to 100% of range; 0.8% (+0.015% per °C deviation from 25°C) from 1% to 5% of range Voltage 0.4% (+0.015% per °C deviation from 25°C) from 90 V...

  • Page 36: Product Identification

    INSTALLATION GUIDE PRODUCT IDENTIFICATION OPERATION The E51 DIN Rail Power Meter provides a solution for measuring energy data with Data Logging Model Description Output a single device. Inputs include Control Power, CTs, and 3-phase voltage. The E51 Pulse RS-485 Alarm supports multiple output options, including solid state relay contacts, Modbus (with or without data logging), and pulse.

  • Page 37: Product Diagram

    INSTALLATION GUIDE PRODUCT DIAGRAM INSTALLATION Disconnect power prior to installation. Any covers that may be displaced during the installation must be reinstalled before powering the unit. Alarm Energy OUTPUT Mount the meter in an appropriate electrical enclosure + - S Common - 1 or 1/3 VAC Input near equipment to be monitored.

  • Page 38: Supported System Types

    INSTALLATION GUIDE SUPPORTED SYSTEM TYPES The meter has a number of different possible system wiring configurations (see Wiring Diagrams, page 5). To configure the meter, set the System Type via the User Interface or Modbus register 130 (if so equipped). The System Type tells the meter which of its current and voltage inputs are valid, which are to be ignored, and if neutral is connected. Setting the correct System Type prevents unwanted energy accumulation on unused inputs, selects the formula to calculate the Theoretical Maximum System Power, and determines which phase loss algorithm is to be used.

  • Page 39: Wiring Diagrams

    INSTALLATION GUIDE WIRING DIAGRAMS WARNING RISK OF ELECTRIC SHOCK OR PERMANENT EQUIPMENT DAMAGE CT negative terminals are referenced to the meter’s neutral and may be at elevated voltages · Do not contact meter terminals while the unit is connected · Do not connect or short other circuits to the CT terminals Failure to follow these instructions may cause injury, death or equipment damage.

  • Page 40: Control Power

    INSTALLATION GUIDE CONTROL POWER Direct Connect Control Power (Line to Line) Direct Connect Control Power (Line to Neutral) L2 L3 L2 L3 Line to Line from 90VAC to 600VAC (UL) (520VAC for CE). In UL installations the lines may be Line to Neutral from 90 VAC to 347 VAC (UL) or 300 VAC (CE) floating (such as a delta).

  • Page 41: Quick Setup Instructions

    INSTALLATION GUIDE DISPLAY SCREEN DIAGRAM QUICK SETUP INSTRUCTIONS These instructions assume the meter is set to factory defaults. If it has been LCD Screen: previously configured, all optional values should be checked. – 1. Press the button repeatedly until SETUP screen appears. Screen Name or Units Alive Indicator to the PASWD screen.
  • Page 42 INSTALLATION GUIDE SOLID-STATE PULSE OUTPUT UI MENU ABBREVIATIONS DEFINED The meter has one normally open (N.O.) KZ Form A output and one normally closed The user can set the display mode to IEC or IEEE notation in the SETUP menu. (N.C.) KY solid-state output.*** One is dedicated to import energy (Wh), and the other to Alarm.

  • Page 43: User Interface

    INSTALLATION GUIDE USER INTERFACE ZL0067-0B PAGE 9 ©2011 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com 03112 Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
  • Page 44 INSTALLATION GUIDE ZL0067-0B PAGE 10 ©2011 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com 03112 Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
  • Page 45 INSTALLATION GUIDE ALERT/RESET INFORMATION To: ENRGY Alert Status PLOSS PULSE LOWPF F ERR I OVR V OVR (check if ALERT -------- -------- -------- -------- -------- -------- Wrench on A b C A b C A b C A b C Error LCD) ALERT...
  • Page 46 INSTALLATION GUIDE USER INTERFACE FOR SETUP To Setup p. 2 “SPASS” RS-485 Output BAUD -------- Set Communications Parameters: 38400 ADDR - Modbus Address: 1 – 247. ADDR -------- 19200 + increments the selected (blinking) digit. Back S COM -------- nOnE 9600 - selects the digit to the left.
  • Page 47 INSTALLATION GUIDE To Setup p. 1 “S PWR” Set Phase Loss: VOLTS - Phase Loss Voltage: The fraction of the system voltage below which Phase Loss Alarm is on. For system types with neutral, the Line to Neutral voltage is also calculated and tested.
  • Page 48 INSTALLATION GUIDE RS-485 COMMUNICATIONS Daisy-chaining Devices to the Power Meter The RS-485 slave port allows the power meter to be connected in a daisy chain with up to 63 2-wire devices. In this bulletin, communications link refers to a chain of devices that are connected by a communications cable.
  • Page 49 INSTALLATION GUIDE DATA LOGGING (E51C3 ONLY) STANDARD MODBUS DEFAULT SETTINGS The E51C3 includes a data logging feature that records 10 meter parameters, each in Setting Value Modbus its own buffer. Register Setup Password 00000 – Configuration. Reset Password 00000 – Use register 150 to set the data logging time subinterval.
  • Page 50 INSTALLATION GUIDE MODBUS POINT MAP The E51C2 Full Data Set (FDS) model features data outputs such as demand Legend calculations, per phase signed watts VA and VAR, import/export Wh and VAh, and The following table lists the addresses assigned to each data point. For floating point VARh accumulators by quadrant.
  • Page 51 INSTALLATION GUIDE R/W NV Format Units Scale Range Description Integer Data: Summary of Active Phases • • 001 -2147483647 to SLong Real Energy: Net (Import - Export) +2147483647 • • 002 Accumulated • • 003 Real Energy: Quadrants 1 & 4 Real Energy ULong 0 to 0xFFFFFFFF...
  • Page 52 INSTALLATION GUIDE R/W NV Format Units Scale Range Description Integer Data: Per Phase • • 043 Accumulated Real Energy, ULong 0 to 0xFFFFFFFF Phase A • • 044 • • 045 Accumulated Real Energy, ULong 0 to 0xFFFFFFFF Import Phase B •...
  • Page 53 INSTALLATION GUIDE R/W NV Format Units Scale Range Description • • 079 Accumulated Apparent Energy, ULong kVAh 0 to 0xFFFFFFFF Phase A • • 080 • • 081 Accumulated Apparent Energy, ULong kVAh 0 to 0xFFFFFFFF Import Phase B • •...
  • Page 54 INSTALLATION GUIDE R/W NV Format Units Scale Range Description Configuration Reset: - Write 30078 (0x757E) to clear all Energy Accumulators to 0 (All). - Write 21211 (0x52DB) to begin new Demand Sub-Interval calculation cycle. Takes effect at the end of the next 1 second calculation cycle.
  • Page 55 INSTALLATION GUIDE R/W NV Format Units Scale Range Description Wh (& VARh, if equipped) Energy per Pulse Output Contact Closure. If the meter 10000, cannot find a pulse duration 1000, that will keep up with the • • 144 R/W NV UInt max.
  • Page 56 INSTALLATION GUIDE R/W NV Format Units Scale Range Description Logging Configuration and Status Least Significant Byte Most Significant Byte (MSB) Day / (LSB) • 155 R/W NV UInt See Bytes Date / Time Clock. Following a power cycle, Month Day 1-31 (0x01-0x1F) Month 1-12 (0x01-0x0C) resets to: Day 01...
  • Page 57 INSTALLATION GUIDE R/W NV Format Units Scale Range Description Log Register 1 – • 169 R/W NV UInt Default is 3 (Import Real Energy MSR) Log Register 2 – • 170 R/W NV UInt Default is 4 (Import Real Energy LSR) Log Register 3 –...
  • Page 58 INSTALLATION GUIDE R/W NV Format Units Scale Range Description • • 299/300 R Float Total Real Power Max. Demand • • 301/302 R Float kVAR Total Reactive Power Max. Demand Import • • 303/304 R Float Total Apparent Power Max. Demand •...
  • Page 59 INSTALLATION GUIDE R/W NV Format Units Scale Range Description • • 389/390 R Float Volt Voltage, Phase A-B • • 391/392 R Float Volt Voltage, Phase B-C Line to Line Voltage (U) • • 393/394 R Float Volt Voltage, Phase A-C •...
  • Page 60 INSTALLATION GUIDE R/W NV Format Units Scale Range SunSpec Name Description Current • • 40072 SInt Amps M_AC_Current_SF -32767 to +32767 M_AC_Current AC Current (sum of active phases) • • 40073 SInt Amps M_AC_Current_SF -32767 to +32767 M_AC_Current_A Phase A AC current •...
  • Page 61 INSTALLATION GUIDE R/W NV Format Units Scale Range SunSpec Name Description Accumulated Energy Real Energy • • 40108 Watt- ULong M_Energy_W_SF 0x0 to 0xFFFFFFFF M_Exported_W Total Exported Real Energy hours • • 40109 • • 40110 Watt- ULong M_Energy_W_SF 0x0 to 0xFFFFFFFF M_Exported_W_A Phase A Exported Real Energy hours •...
  • Page 62 INSTALLATION GUIDE R/W NV Format Units Scale Range SunSpec Name Description • • 40154 VAR- M_Import_VARh_ ULong M_Energy_VAR_SF 0x0 to 0xFFFFFFFF Phase B - Quadrant 2: Total Imported Reactive Energy hours • • 40155 • • 40156 VAR- M_Import_VARh_ ULong M_Energy_VAR_SF 0x0 to 0xFFFFFFFF Phase C - Quadrant 2: Total Imported Reactive Energy...

  • Page 63: Troubleshooting

    INSTALLATION GUIDE TROUBLESHOOTING Problem Cause Solution The maintenance wrench icon appears There is a problem with the inputs See the Alert sub-menu or the Diagnostic Alert Modbus Register 146 in the power meter display. to the power meter. The meter is not receiving Verify that the meter control power are receiving the required voltage.
