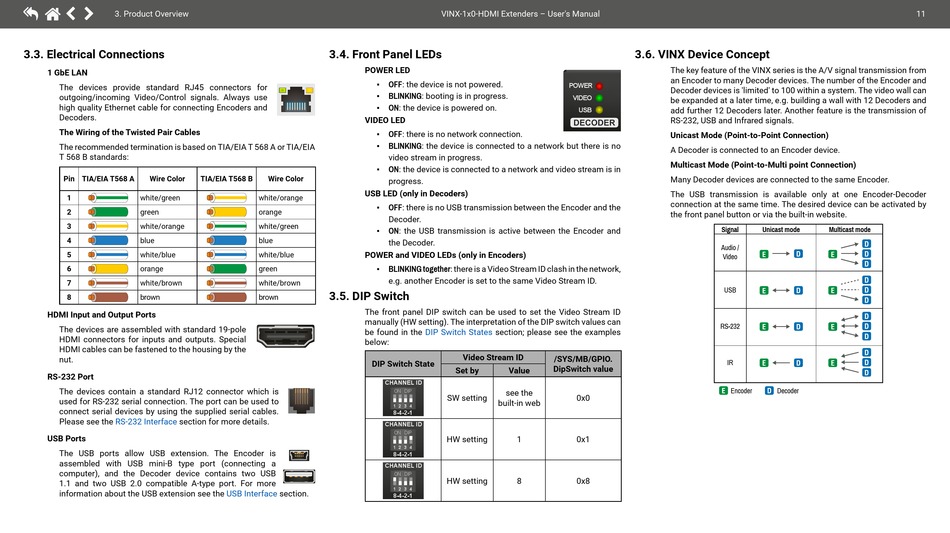

3. Product Overview

3.3. Electrical Connections

1 GbE LAN
The devices provide standard RJ45 connectors for
outgoing/incoming Video/Control signals. Always use
high quality Ethernet cable for connecting Encoders and
Decoders.
The Wiring of the Twisted Pair Cables
The recommended termination is based on TIA/EIA T 568 A or TIA/EIA
T 568 B standards:
Pin TIA/EIA T568 A Wire Color
1 white/green
2 green
3 white/orange
4 blue
5 white/blue
6 orange
7 white/brown
8 brown
HDMI Input and Output Ports
The devices are assembled with standard 19-pole
HDMI connectors for inputs and outputs. Special
HDMI cables can be fastened to the housing by the
nut.
RS-232 Port
The devices contain a standard RJ12 connector which is
used for RS-232 serial connection. The port can be used to
connect serial devices by using the supplied serial cables.
Please see the RS-232 Interface section for more details.
USB Ports
The USB ports allow USB extension. The Encoder is
assembled with USB mini-B type port (connecting a
computer), and the Decoder device contains two USB
1.1 and two USB 2.0 compatible A-type port. For more
information about the USB extension see the
3.4. Front Panel LEDs
POWER LED
▪
▪
▪
VIDEO LED
▪
▪
▪
TIA/EIA T568 B Wire Color
USB LED (only in Decoders)
white/orange
▪
orange
white/green
▪
blue
white/blue POWER and VIDEO LEDs (only in Encoders)
green ▪
white/brown
3.5. DIP Switch
brown
The front panel DIP switch can be used to set the Video Stream ID
manually (HW setting). The interpretation of the DIP switch values can
be found in the
below:
DIP Switch State
USB Interface section.
VINX-1x0-HDMI Extenders – User's Manual
OFF: the device is not powered.
BLINKING: booting is in progress.
ON: the device is powered on.
OFF: there is no network connection.
BLINKING: the device is connected to a network but there is no
video stream in progress.
ON: the device is connected to a network and video stream is in
progress.
OFF: there is no USB transmission between the Encoder and the
Decoder.
ON: the USB transmission is active between the Encoder and
the Decoder.
BLINKING together: there is a Video Stream ID clash in the network,
e.g. another Encoder is set to the same Video Stream ID.
DIP Switch States section; please see the examples
Video Stream ID
/SYS/MB/GPIO.
DipSwitch value
Set by Value
CHANNEL ID
ON DIP see the
SW setting
built-in web
1 2 3 4
8-4-2-1
CHANNEL ID
ON DIP
HW setting 1
1 2 3 4
8-4-2-1
CHANNEL ID
ON DIP
HW setting 8
1 2 3 4
8-4-2-1
3.6. VINX Device Concept
The key feature of the VINX series is the A/V signal transmission from
an Encoder to many Decoder devices. The number of the Encoder and
POWER
Decoder devices is 'limited' to 100 within a system. The video wall can
VIDEO
be expanded at a later time, e.g. building a wall with 12 Decoders and
add further 12 Decoders later. Another feature is the transmission of
USB
RS-232, USB and Infrared signals.
Unicast Mode (Point-to-Point Connection)
A Decoder is connected to an Encoder device.
Multicast Mode (Point-to-Multi point Connection)
Many Decoder devices are connected to the same Encoder.
The USB transmission is available only at one Encoder-Decoder
connection at the same time. The desired device can be activated by
the front panel button or via the built-in website.
Signal
Audio /
Video
USB
RS-232
IR
E Encoder
0x0
0x1
0x8
11
Unicast mode Multicast mode
D
E D E D
D
D
E D E D
D
D
D
E D E
D
D
D
E D E
D
D Decoder
