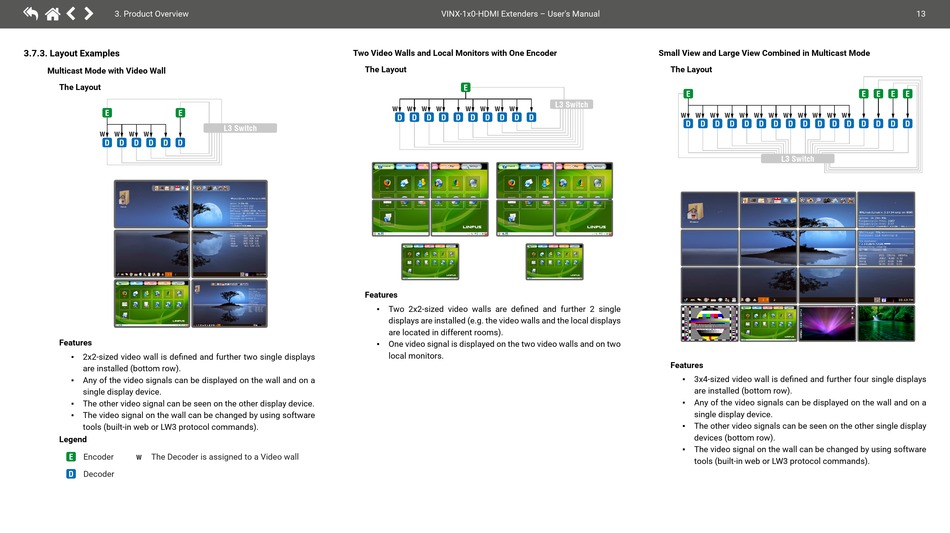

3.7.3. Layout Examples

Multicast Mode with Video Wall
The Layout
E E
W W W W
D D D D D D
Features
2x2-sized video wall is defined and further two single displays
▪
are installed (bottom row).
▪ Any of the video signals can be displayed on the wall and on a
single display device.
The other video signal can be seen on the other display device.
▪
▪ The video signal on the wall can be changed by using software
tools (built-in web or LW3 protocol commands).
Legend
E Encoder The Decoder is assigned to a Video wall
W
D Decoder
Two Video Walls and Local Monitors with One Encoder
The Layout
W
D
L3 Switch
Features
▪ Two 2x2-sized video walls are defined and further 2 single
displays are installed (e.g. the video walls and the local displays
are located in different rooms).
▪ One video signal is displayed on the two video walls and on two
local monitors.
VINX-1x0-HDMI Extenders – User's Manual
E
L3 Switch
W W W W W W W
D D D D D D D D D
Small View and Large View Combined in Multicast Mode
The Layout
E
W W W W W W W W W W W
D D D D D D D D D D D
L3 Switch
Features
▪ 3x4-sized video wall is defined and further four single displays
are installed (bottom row).
Any of the video signals can be displayed on the wall and on a
▪
single display device.
▪ The other video signals can be seen on the other single display
devices (bottom row).
▪ The video signal on the wall can be changed by using software
tools (built-in web or LW3 protocol commands).
13
E E E E
W
D D D D D
