5. Programmers' Reference

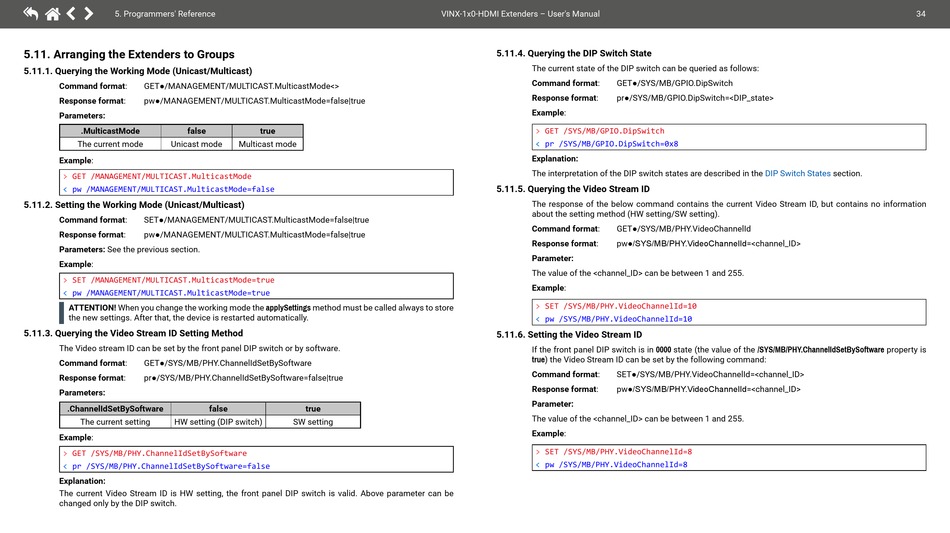

5.11. Arranging the Extenders to Groups

5.11.1. Querying the Working Mode (Unicast/Multicast)
Command format: GET●/MANAGEMENT/MULTICAST.MulticastMode<>
Response format: pw●/MANAGEMENT/MULTICAST.MulticastMode=false|true
Parameters:
.MulticastMode
The current mode Unicast mode
Example:
˃ GET /MANAGEMENT/MULTICAST.MulticastMode
˂ pw /MANAGEMENT/MULTICAST.MulticastMode=false
5.11.2. Setting the Working Mode (Unicast/Multicast)
Command format: SET●/MANAGEMENT/MULTICAST.MulticastMode=false|true
Response format: pw●/MANAGEMENT/MULTICAST.MulticastMode=false|true
Parameters: See the previous section.
Example:
˃ SET /MANAGEMENT/MULTICAST.MulticastMode=true
˂ pw /MANAGEMENT/MULTICAST.MulticastMode=true
ATTENTION! When you change the working mode the applySettings method must be called always to store
the new settings. After that, the device is restarted automatically.
5.11.3. Querying the Video Stream ID Setting Method
The Video stream ID can be set by the front panel DIP switch or by software.
Command format: GET●/SYS/MB/PHY.ChannelIdSetBySoftware
Response format: pr●/SYS/MB/PHY.ChannelIdSetBySoftware=false|true
Parameters:
.ChannelIdSetBySoftware
The current setting HW setting (DIP switch)
Example:
˃ GET /SYS/MB/PHY.ChannelIdSetBySoftware
˂ pr /SYS/MB/PHY.ChannelIdSetBySoftware=false
Explanation:
The current Video Stream ID is HW setting, the front panel DIP switch is valid. Above parameter can be
changed only by the DIP switch.
false true
Multicast mode
false true
SW setting
VINX-1x0-HDMI Extenders – User's Manual
5.11.4. Querying the DIP Switch State
The current state of the DIP switch can be queried as follows:
Command format: GET●/SYS/MB/GPIO.DipSwitch
Response format: pr●/SYS/MB/GPIO.DipSwitch=<DIP_state>
Example:
˃ GET /SYS/MB/GPIO.DipSwitch
˂ pr /SYS/MB/GPIO.DipSwitch=0x8
Explanation:
The interpretation of the DIP switch states are described in the
5.11.5. Querying the Video Stream ID
The response of the below command contains the current Video Stream ID, but contains no information
about the setting method (HW setting/SW setting).
Command format: GET●/SYS/MB/PHY.VideoChannelId
Response format: pw●/SYS/MB/PHY.VideoChannelId=<channel_ID>
Parameter:
The value of the <channel_ID> can be between 1 and 255.
Example:
˃ SET /SYS/MB/PHY.VideoChannelId=10
˂ pw /SYS/MB/PHY.VideoChannelId=10
5.11.6. Setting the Video Stream ID
If the front panel DIP switch is in 0000 state (the value of the /SYS/MB/PHY.ChannelIdSetBySoftware property is
true) the Video Stream ID can be set by the following command:
Command format: SET●/SYS/MB/PHY.VideoChannelId=<channel_ID>
Response format: pw●/SYS/MB/PHY.VideoChannelId=<channel_ID>
Parameter:
The value of the <channel_ID> can be between 1 and 255.
Example:
˃ SET /SYS/MB/PHY.VideoChannelId=8
˂ pw /SYS/MB/PHY.VideoChannelId=8
34
DIP Switch States section.
