Video Wall Setup - Lightware VINX-120-HDMI-ENC User Manual


  
4. Software Control - Using the Built-in Website

4.5. Video Wall Setup

ATTENTION! This tab is displayed only when the device is in
Multicast mode. Although changing parameters usually takes effect
within an acceptable period of time, it might happen that feedback
is not received and not visible on the web page for several seconds.
Basic Rules
▪ One Decoder can be a part of only one video wall.
▪ The video wall must have a unique name within a system; the
length of the name shall not exceed 24 characters.
▪ The video wall parameters are stored in the LW3 protocol tree of
the Decoders but you can also create/access it in the Encoder.
4.5.1. Creating a Video Wall
Step 1. Navigate to the Video Wall Setup page.
Step 2. Press the New video wall button. Enter the desired name of the
wall (press the pencil icon  to change) and press the Enter or
click on the pencil icon.
Step 3. Press the Change Video Wall Size button to set the exact size of
the wall. A new window will pop up, click on the desired size.
Step 4. Drag and drop the Decoders to the desired place in the Video
wall. The setting is saved automatically in all affected Decoders.
ATTENTION! A New video wall is stored only when at least one
Decoder is linked to the wall.
VINX-1x0-HDMI Extenders – User's Manual

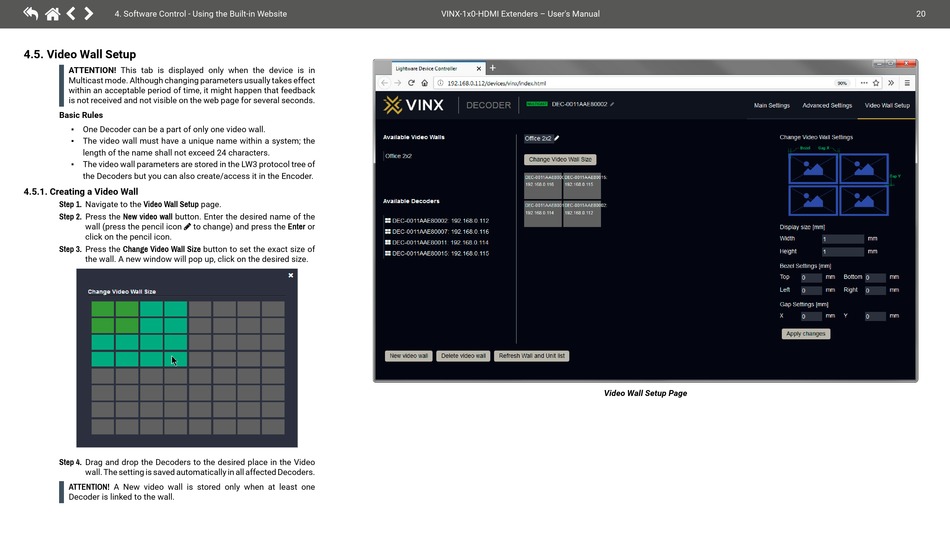

Video Wall Setup Page
