2. Installation

2
Installation
The chapter is about the installation of the device and connecting to other
appliances, presenting also the mounting options and further assembly steps.
Mounting Options
Ý
Connecting Steps
Ý
VINX-1x0-HDMI Extenders – User's Manual

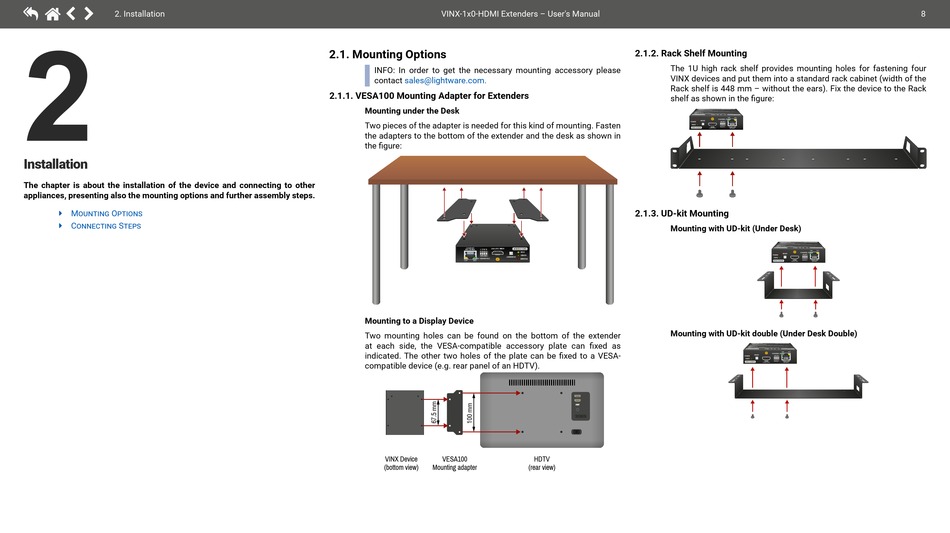

2.1. Mounting Options
INFO: In order to get the necessary mounting accessory please
contact sales@lightware.com.
2.1.1. VESA100 Mounting Adapter for Extenders
Mounting under the Desk
Two pieces of the adapter is needed for this kind of mounting. Fasten
the adapters to the bottom of the extender and the desk as shown in
the figure:
Mounting to a Display Device
Two mounting holes can be found on the bottom of the extender
at each side, the VESA-compatible accessory plate can fixed as
indicated. The other two holes of the plate can be fixed to a VESA-
compatible device (e.g. rear panel of an HDTV).
VINX Device VESA100
(bottom view) Mounting adapter
2.1.2. Rack Shelf Mounting
The 1U high rack shelf provides mounting holes for fastening four
VINX devices and put them into a standard rack cabinet (width of the
Rack shelf is 448 mm – without the ears). Fix the device to the Rack
shelf as shown in the figure:
MODE
POWER
VIDEO
2.1.3. UD-kit Mounting
Mounting with UD-kit (Under Desk)
Mounting with UD-kit double (Under Desk Double)
HDTV
(rear view)
LINK ACT.
CHANNEL ID
ON DIP
1 2 3 4
HDMI 8-4-2-1 1GbE LAN
(LOCAL OUT) (AV OUT)
LINK ACT.
CHANNEL ID
MODE
ON DIP
POWER
VIDEO
1 2 3 4
HDMI 8-4-2-1 1GbE LAN
(LOCAL OUT) (AV OUT)
LINK ACT.
CHANNEL ID
MODE
ON DIP
POWER
VIDEO
1 2 3 4
HDMI 8-4-2-1 1GbE LAN
(LOCAL OUT) (AV OUT)
