1. Introduction

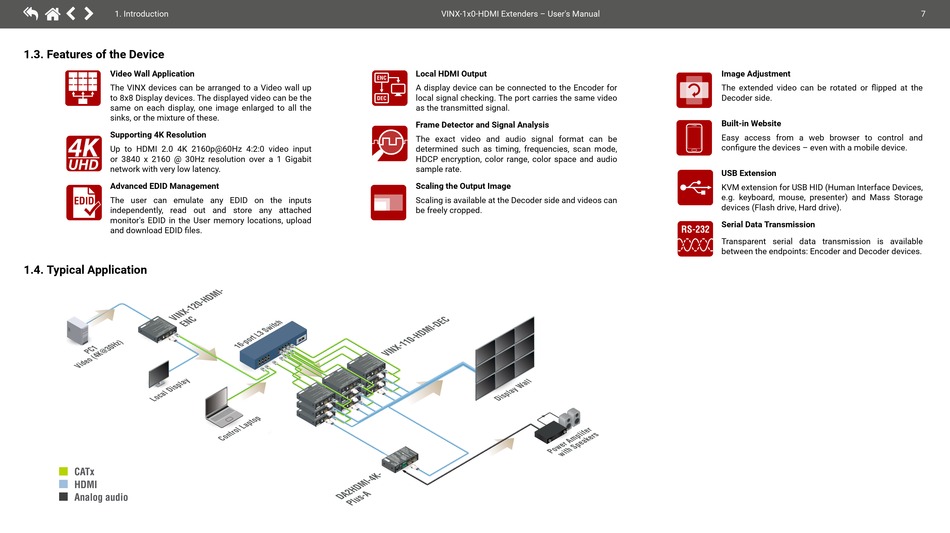

1.3. Features of the Device

Video Wall Application
The VINX devices can be arranged to a Video wall up
to 8x8 Display devices. The displayed video can be the
same on each display, one image enlarged to all the
sinks, or the mixture of these.
Supporting 4K Resolution
Up to HDMI 2.0 4K 2160p@60Hz 4:2:0 video input
or 3840 x 2160 @ 30Hz resolution over a 1 Gigabit
network with very low latency.
Advanced EDID Management
The user can emulate any EDID on the inputs
independently, read out and store any attached
monitor's EDID in the User memory locations, upload
and download EDID files.
1.4. Typical Application
ACT.
LINK
L ID
NNE DIP
CHA ON E LAN T)
1 2 3 4 -1 1Gb (AV INPU
8-4-2
E I
MOD HDM l out)
(loca
O
VIDE USB
OD ER
ENC
CATx
HDMI
Analog audio
VINX-1x0-HDMI Extenders – User's Manual
Local HDMI Output
ENC
A display device can be connected to the Encoder for
local signal checking. The port carries the same video
DEC
as the transmitted signal.
Frame Detector and Signal Analysis
The exact video and audio signal format can be
determined such as timing, frequencies, scan mode,
HDCP encryption, color range, color space and audio
sample rate.
Scaling the Output Image
Scaling is available at the Decoder side and videos can
be freely cropped.
ACT.
L ID LINK
NNE
CHA DIP ON E LAN T)
3 2 4 1Gb (AV INPU
8-4-2 1 -1
T
CON NEC I OUT PUT
ER HDM ACT.
POW O LINK
VIDE L ID
USB ER NNE DIP
DEC OD CHA ON E LAN T)
2 1 3 -1 4 (AV 1Gb INPU
8-4-2
ACT. NEC T
L ID LINK CON I OUT PUT
NNE ER HDM ACT.
CHA ON DIP E LAN T) POW O LINK
3 2 4 1Gb (AV INPU VIDE USB L ID
1 8-4-2 -1 OD ER CHA DIP NNE ON E LAN
NEC T DEC 3 4 1Gb INPU T)
CON I OUT PUT 2 1 -1 (AV
ER HDM ACT. T 8-4-2
POW O LINK CON NEC PUT
VIDE L ID I OUT
USB OD ER CHA NNE DIP POW ER HDM
DEC ON INPU E LAN T) VIDE O
3 2 1 4 -1 (AV 1Gb USB ER
T 8-4-2 OD
ACT. NEC PUT DEC
L ID LINK CON I OUT
NNE DIP ER HDM ACT.
CHA ON E LAN T) POW O LINK
3 4 2 1Gb (AV INPU VIDE USB L ID
1 8-4-2 -1 OD ER CHA ON NNE DIP E LAN
NEC T DEC 3 4 1Gb INPU T)
CON I OUT PUT 2 1 -1 (AV
ER HDM ACT. T 8-4-2
POW O LINK CON NEC PUT
VIDE L ID I OUT
USB ER OD CHA NNE DIP POW O ER HDM
DEC ON 4 1Gb E LAN INPU T) VIDE
1 2 -1 3 (AV USB ER
T 8-4-2 OD
NEC PUT DEC
CON I OUT
ER HDM ACT.
POW VIDE O LINK
USB NNE L ID
ER OD CHA ON DIP E LAN T)
DEC 3 4 1Gb INPU
1 2 -1 (AV
T 8-4-2
CON NEC PUT
HDM I OUT
POW O ER
VIDE
USB ER
DEC OD
mm
1.35 /3.5
Image Adjustment
The extended video can be rotated or flipped at the
Decoder side.
Built-in Website
Easy access from a web browser to control and
configure the devices – even with a mobile device.
USB Extension
KVM extension for USB HID (Human Interface Devices,
e.g. keyboard, mouse, presenter) and Mass Storage
devices (Flash drive, Hard drive).
Serial Data Transmission
RS-232
Transparent serial data transmission is available
between the endpoints: Encoder and Decoder devices.
7
