4.2.2. Video Status and Settings

The properties of the incoming and outgoing video signals are
displayed with the followings:
Selecting the emulated EDID (see the
▪
▪ Enabled/disable HDCP encryption on the input.
▪ Selecting the video quality (see below).
Displaying the Frame Detector in a new window.
▪
ATTENTION! If the HDCP setting is changed the device will reboot.
INFO: In the case of the Decoder, the incoming signal is detected
only if a display device is connected to the output port.
Video Transmission Quality
The extended video signal is compressed which allows setting the
desired video quality in the Encoder as follows:
Video mode (Higher Quality, more bandwidth): the encoding
▪
quality is adjusted to the available bandwidth.
▪ Graphics mode (Lower Quality, less bandwidth): the best possible
video quality is produced even if it causes the stream to break
due to bandwidth limitation in the transmission path.
ATTENTION! When the mode is changed by the Mode button of the
Encoder Video mode / Graphic mode text is displayed on the sinks
connected to the Decoders.
4.2.3. Network Settings
The factory default IP address is set dynamically by a DHCP server.
The drop-down list and the further parameters allow changing the
network settings to the desired value.
ATTENTION! When the desired Network parameters are set press
the Apply changes button; the device will reboot.
EDID Operations section).
VINX-1x0-HDMI Extenders – User's Manual

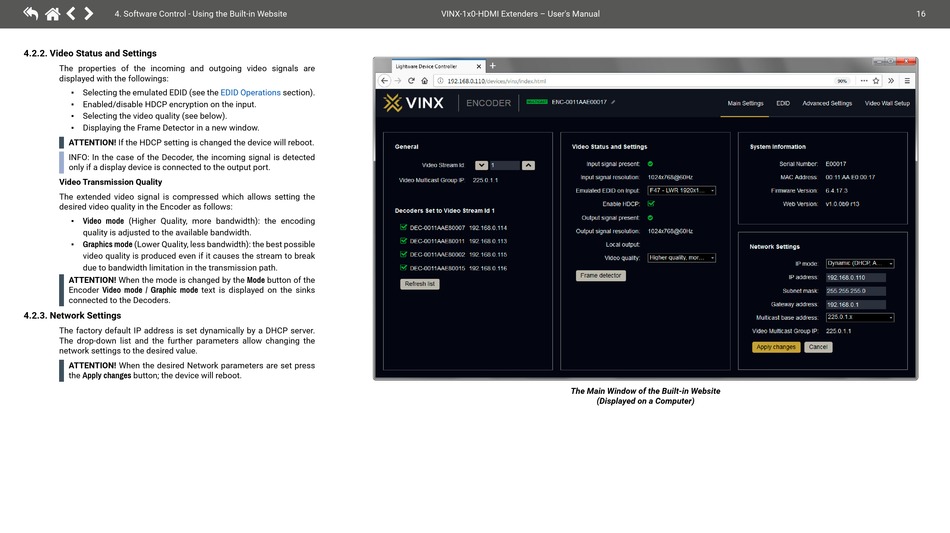

The Main Window of the Built-in Website
