5. Programmers' Reference

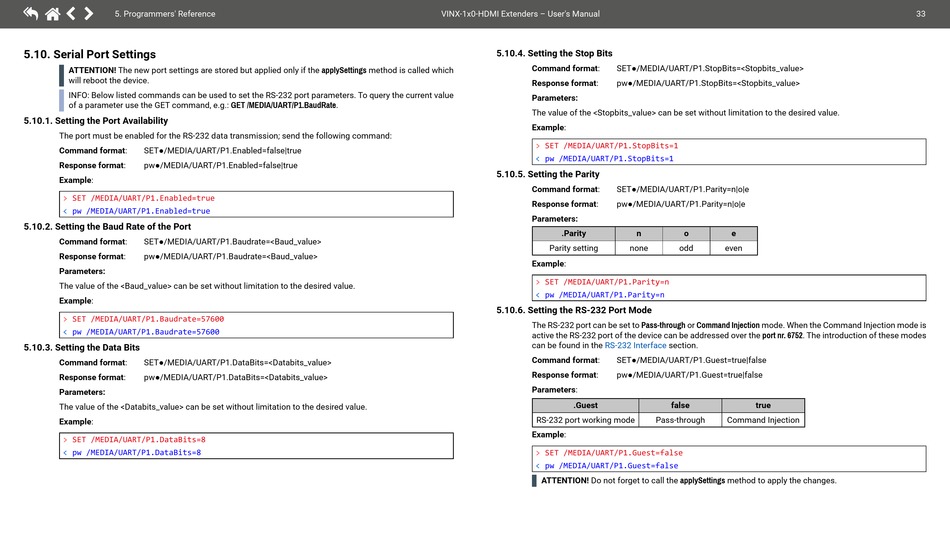

5.10. Serial Port Settings

ATTENTION! The new port settings are stored but applied only if the applySettings method is called which
will reboot the device.
INFO: Below listed commands can be used to set the RS-232 port parameters. To query the current value
of a parameter use the GET command, e.g.: GET /MEDIA/UART/P1.BaudRate.
5.10.1. Setting the Port Availability
The port must be enabled for the RS-232 data transmission; send the following command:
Command format: SET●/MEDIA/UART/P1.Enabled=false|true
Response format: pw●/MEDIA/UART/P1.Enabled=false|true
Example:
˃ SET /MEDIA/UART/P1.Enabled=true
˂ pw /MEDIA/UART/P1.Enabled=true
5.10.2. Setting the Baud Rate of the Port
Command format: SET●/MEDIA/UART/P1.Baudrate=<Baud_value>
Response format: pw●/MEDIA/UART/P1.Baudrate=<Baud_value>
Parameters:
The value of the <Baud_value> can be set without limitation to the desired value.
Example:
˃ SET /MEDIA/UART/P1.Baudrate=57600
˂ pw /MEDIA/UART/P1.Baudrate=57600
5.10.3. Setting the Data Bits
Command format: SET●/MEDIA/UART/P1.DataBits=<Databits_value>
Response format: pw●/MEDIA/UART/P1.DataBits=<Databits_value>
Parameters:
The value of the <Databits_value> can be set without limitation to the desired value.
Example:
˃ SET /MEDIA/UART/P1.DataBits=8
˂ pw /MEDIA/UART/P1.DataBits=8
VINX-1x0-HDMI Extenders – User's Manual
5.10.4. Setting the Stop Bits
Command format: SET●/MEDIA/UART/P1.StopBits=<Stopbits_value>
Response format: pw●/MEDIA/UART/P1.StopBits=<Stopbits_value>
Parameters:
The value of the <Stopbits_value> can be set without limitation to the desired value.
Example:
˃ SET /MEDIA/UART/P1.StopBits=1
˂ pw /MEDIA/UART/P1.StopBits=1
5.10.5. Setting the Parity
Command format: SET●/MEDIA/UART/P1.Parity=n|o|e
Response format: pw●/MEDIA/UART/P1.Parity=n|o|e
Parameters:
.Parity
Parity setting
Example:
˃ SET /MEDIA/UART/P1.Parity=n
˂ pw /MEDIA/UART/P1.Parity=n
5.10.6. Setting the RS-232 Port Mode
The RS-232 port can be set to Pass-through or Command Injection mode. When the Command Injection mode is
active the RS-232 port of the device can be addressed over the port nr. 6752. The introduction of these modes
can be found in the RS-232 Interface
Command format: SET●/MEDIA/UART/P1.Guest=true|false
Response format: pw●/MEDIA/UART/P1.Guest=true|false
Parameters:
.Guest
RS-232 port working mode
Example:
˃ SET /MEDIA/UART/P1.Guest=false
˂ pw /MEDIA/UART/P1.Guest=false
ATTENTION! Do not forget to call the applySettings method to apply the changes.
n o e
none odd even
section.
false true
Pass-through Command Injection
33
