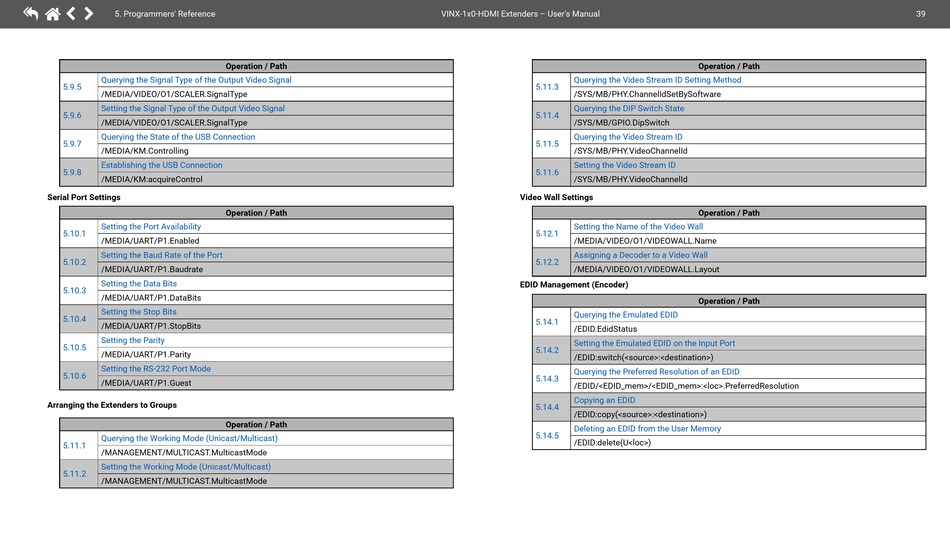

Lightware VINX-120-HDMI-ENC User Manual page 39


  
5. Programmers' Reference
Querying the Signal Type of the Output Video Signal
5.9.5
/MEDIA/VIDEO/O1/SCALER.SignalType
Setting the Signal Type of the Output Video Signal
5.9.6
/MEDIA/VIDEO/O1/SCALER.SignalType
Querying the State of the USB Connection
5.9.7
/MEDIA/KM.Controlling
Establishing the USB Connection
5.9.8
/MEDIA/KM:acquireControl
Serial Port Settings
Setting the Port Availability
5.10.1
/MEDIA/UART/P1.Enabled
Setting the Baud Rate of the Port
5.10.2
/MEDIA/UART/P1.Baudrate
Setting the Data Bits
5.10.3
/MEDIA/UART/P1.DataBits
Setting the Stop Bits
5.10.4
/MEDIA/UART/P1.StopBits
Setting the Parity
5.10.5
/MEDIA/UART/P1.Parity
Setting the RS-232 Port Mode
5.10.6
/MEDIA/UART/P1.Guest
Arranging the Extenders to Groups
Querying the Working Mode (Unicast/Multicast)
5.11.1
/MANAGEMENT/MULTICAST.MulticastMode
Setting the Working Mode (Unicast/Multicast)
5.11.2
/MANAGEMENT/MULTICAST.MulticastMode
Operation / Path
Operation / Path
Operation / Path
VINX-1x0-HDMI Extenders – User's Manual
Querying the Video Stream ID Setting Method
5.11.3
/SYS/MB/PHY.ChannelIdSetBySoftware
Querying the DIP Switch State
5.11.4
/SYS/MB/GPIO.DipSwitch
Querying the Video Stream ID
5.11.5
/SYS/MB/PHY.VideoChannelId
Setting the Video Stream ID
5.11.6
/SYS/MB/PHY.VideoChannelId
Video Wall Settings
Setting the Name of the Video Wall
5.12.1
/MEDIA/VIDEO/O1/VIDEOWALL.Name
Assigning a Decoder to a Video Wall
5.12.2
/MEDIA/VIDEO/O1/VIDEOWALL.Layout
EDID Management (Encoder)
Querying the Emulated EDID
5.14.1
/EDID.EdidStatus
Setting the Emulated EDID on the Input Port
5.14.2
/EDID:switch(<source>:<destination>)
Querying the Preferred Resolution of an EDID
5.14.3
/EDID/<EDID_mem>/<EDID_mem>:<loc>.PreferredResolution
Copying an EDID
5.14.4
/EDID:copy(<source>:<destination>)
Deleting an EDID from the User Memory
5.14.5
/EDID:delete(U<loc>)
Operation / Path
Operation / Path
Operation / Path
