4. Software Control - Using the Built-in Website

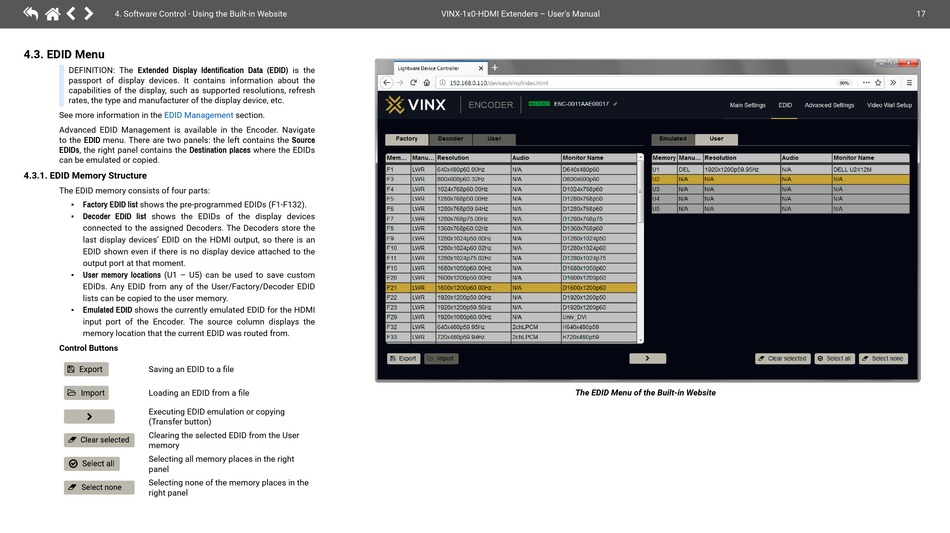

4.3. EDID Menu

DEFINITION: The Extended Display Identification Data (EDID) is the
passport of display devices. It contains information about the
capabilities of the display, such as supported resolutions, refresh
rates, the type and manufacturer of the display device, etc.
See more information in the EDID Management
Advanced EDID Management is available in the Encoder. Navigate
to the EDID menu. There are two panels: the left contains the Source
EDIDs, the right panel contains the Destination places where the EDIDs
can be emulated or copied.
4.3.1. EDID Memory Structure
The EDID memory consists of four parts:
Factory EDID list shows the pre-programmed EDIDs (F1-F132).
▪
▪ Decoder EDID list shows the EDIDs of the display devices
connected to the assigned Decoders. The Decoders store the
last display devices' EDID on the HDMI output, so there is an
EDID shown even if there is no display device attached to the
output port at that moment.
User memory locations (U1 – U5) can be used to save custom
▪
EDIDs. Any EDID from any of the User/Factory/Decoder EDID
lists can be copied to the user memory.
▪ Emulated EDID shows the currently emulated EDID for the HDMI
input port of the Encoder. The source column displays the
memory location that the current EDID was routed from.
Control Buttons
Saving an EDID to a file
Loading an EDID from a file
Executing EDID emulation or copying
(Transfer button)
Clearing the selected EDID from the User
memory
Selecting all memory places in the right
panel
Selecting none of the memory places in the
right panel
section.
VINX-1x0-HDMI Extenders – User's Manual
The EDID Menu of the Built-in Website
