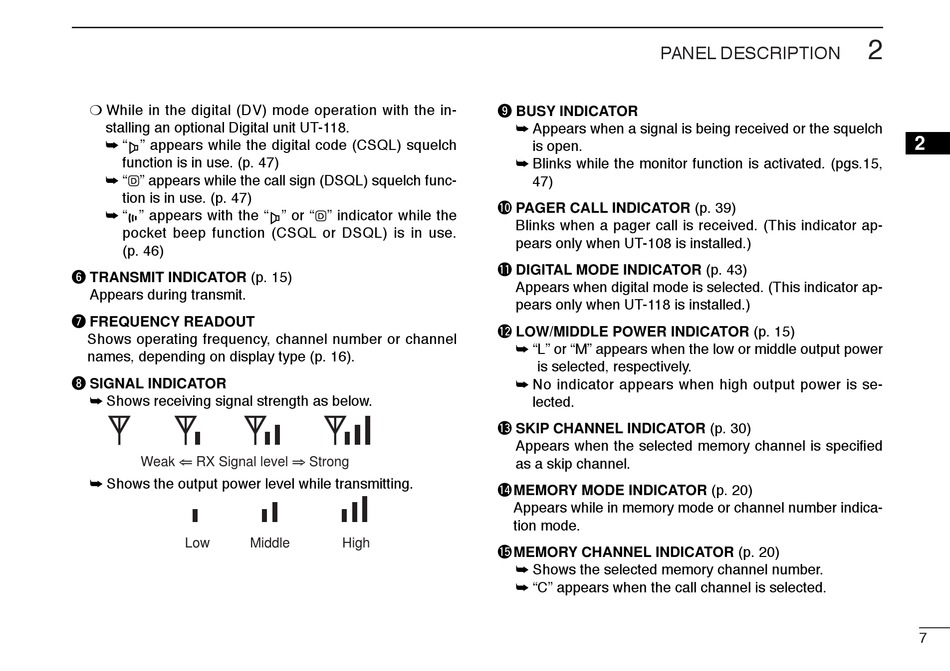

❍ While in the digital (DV) mode operation with the in-
stalling an optional Digital unit UT-118.
➥ " " appears while the digital code (CSQL) squelch
function is in use. (p. 47)
➥ " " appears while the call sign (DSQL) squelch func-
tion is in use. (p. 47)
➥ " " appears with the " " or " " indicator while the
pocket beep function (CSQL or DSQL) is in use.
(p. 46)
y TRANSMIT INDICATOR (p. 15)
Appears during transmit.
u FREQUENCY READOUT
Shows operating frequency, channel number or channel
names, depending on display type (p. 16).
i SIGNAL INDICATOR
➥ Shows receiving signal strength as below.
Weak ⇐ RX Signal level ⇒ Strong
➥ Shows the output power level while transmitting.
Low Middle
o BUSY INDICATOR
➥ Appears when a signal is being received or the squelch
➥ Blinks while the monitor function is activated. (pgs.15,
!0 PAGER CALL INDICATOR (p. 39)
Blinks when a pager call is received. (This indicator ap-
pears only when UT-108 is installed.)
!1 DIGITAL MODE INDICATOR (p. 43)
Appears when digital mode is selected. (This indicator ap-
pears only when UT-118 is installed.)
!2 LOW/MIDDLE POWER INDICATOR (p. 15)
➥ "L" or "M" appears when the low or middle output power
➥ No indicator appears when high output power is se-
!3 SKIP CHANNEL INDICATOR (p. 30)
Appears when the selected memory channel is specified
as a skip channel.
!4 MEMORY MODE INDICATOR (p. 20)
Appears while in memory mode or channel number indica-
tion mode.
High
!5 MEMORY CHANNEL INDICATOR (p. 20)
➥ Shows the selected memory channel number.
➥ "C" appears when the call channel is selected.
