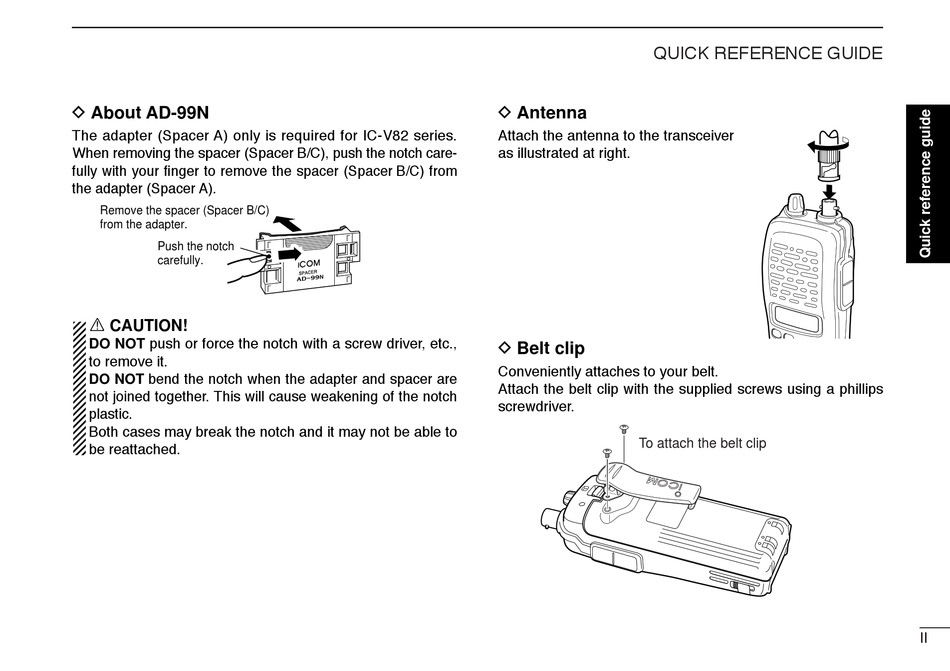

Icom IC-V82 Instruction Manual page 9

D About AD-99N
The adapter (Spacer A) only is required for IC-V82 series.
When removing the spacer (Spacer B/C), push the notch care-
fully with your finger to remove the spacer (Spacer B/C) from
the adapter (Spacer A).
Remove the spacer (Spacer B/C)
from the adapter.
Push the notch
carefully.
R CAUTION!
DO NOT push or force the notch with a screw driver, etc.,
to remove it.
DO NOT bend the notch when the adapter and spacer are
not joined together. This will cause weakening of the notch
plastic.
Both cases may break the notch and it may not be able to
be reattached.
QUICK REFERENCE GUIDE
D Antenna
Attach the antenna to the transceiver
as illustrated at right.
D Belt clip
Conveniently attaches to your belt.
Attach the belt clip with the supplied screws using a phillips
screwdriver.
To attach the belt clip
II
