Optional Ut-108/118 Installation - Icom IC-V82 Instruction Manual

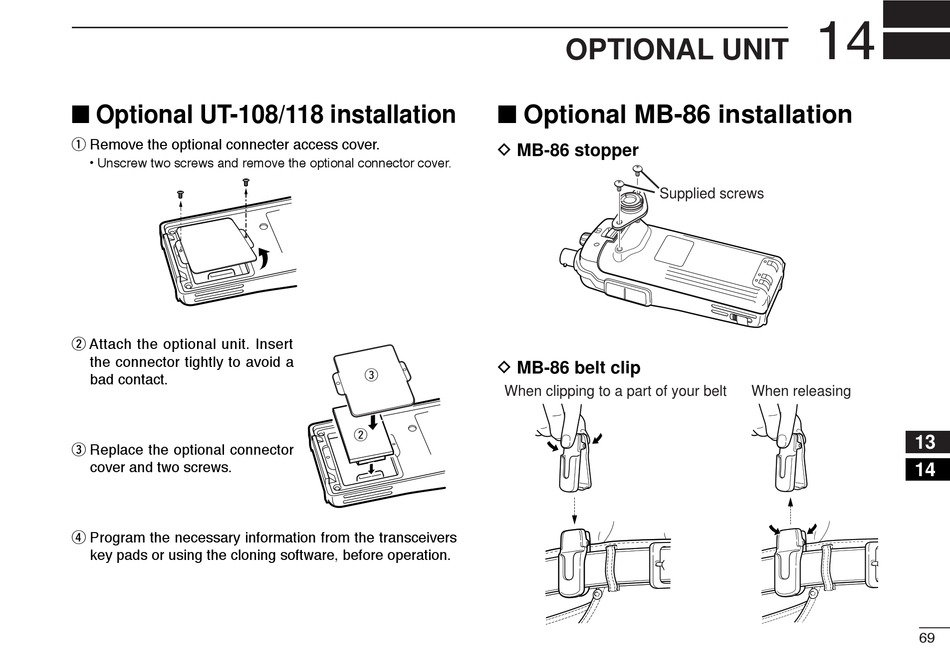

■ Optional UT-108/118 installation

q Remove the optional connecter access cover.
• Unscrew two screws and remove the optional connector cover.
w Attach the optional unit. Insert
the connector tightly to avoid a
bad contact.
e Replace the optional connector
cover and two screws.
r Program the necessary information from the transceivers
key pads or using the cloning software, before operation.
■ Optional MB-86 installation
D MB-86 stopper
D MB-86 belt clip
e
When clipping to a part of your belt
w
OPTIONAL UNIT
Supplied screws
14
When releasing
13
14
69
