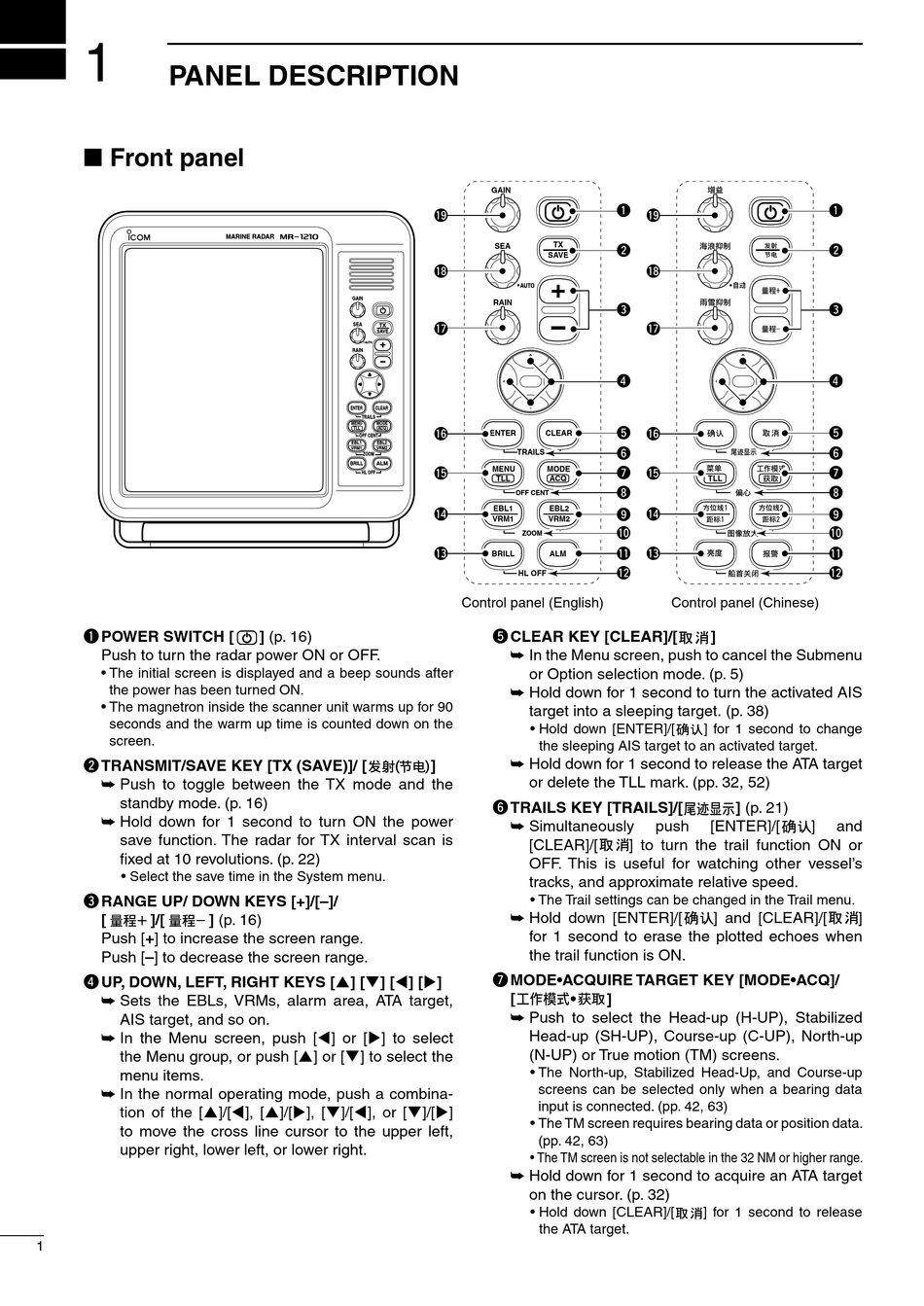

PANEL DESCRIPTION

■ Front panel

q POWER SWITCH [
Push to turn the radar power ON or OFF.
• The initial screen is displayed and a beep sounds after
the power has been turned ON.
• The magnetron inside the scanner unit warms up for 90
seconds and the warm up time is counted down on the
screen.
w TRANSMIT/SAVE KEY [TX (SAVE)]/ [
➥ Push to toggle between the TX mode and the
standby mode. (p. 16)
➥ Hold down for 1 second to turn ON the power
save function. The radar for TX interval scan is
fixed at 10 revolutions. (p. 22)
• Select the save time in the System menu.
e RANGE UP/ DOWN KEYS [+]/[–]/
[ ]/[ ] (p. 16)
Push [+] to increase the screen range.
Push [–] to decrease the screen range.
r UP, DOWN, LEFT, RIGHT KEYS [p] [q] [t] [u]
➥ Sets the EBLs, VRMs, alarm area, ATA target,
AIS target, and so on.
➥ In the Menu screen, push [t] or [u] to select
the Menu group, or push [p] or [q] to select the
menu items.
➥ In the normal operating mode, push a combina-
tion of the [p]/[t], [p]/[u], [q]/[t], or [q]/[u]
to move the cross line cursor to the upper left,
upper right, lower left, or lower right.
1
MARINE RADAR MR-1210
GAIN
SEA
TX
SAVE
AUTO
RAIN
ENTER CLEAR
TRAILS
MENU MODE
TLL ACQ
OFF CENT
EBL1 EBL2
VRM1 VRM2
ZOOM
BRILL ALM
HL OFF
] (p. 16)
GAIN
!9
TX
SEA
SAVE
!8
+
RAIN
-
!7
!6
ENTER CLEAR
TRAILS
MENU MODE
!5
TLL ACQ
OFF CENT
EBL1 EBL2
!4
VRM1 VRM2
ZOOM
!3
BRILL ALM
HL OFF
Control panel (English)
t CLEAR KEY [CLEAR]/[
➥ In the Menu screen, push to cancel the Submenu
or Option selection mode. (p. 5)
➥ Hold down for 1 second to turn the activated AIS
target into a sleeping target. (p. 38)
• Hold down [ENTER]/[
the sleeping AIS target to an activated target.
➥ Hold down for 1 second to release the ATA target
]
or delete the TLL mark. (pp. 32, 52)
y TRAILS KEY [TRAILS]/[
➥ Simultaneously
[CLEAR]/[
OFF. This is useful for watching other vessel's
tracks, and approximate relative speed.
• The Trail settings can be changed in the Trail menu.
➥ Hold down [ENTER]/[
for 1 second to erase the plotted echoes when
the trail function is ON.
u MODE•ACQUIRE TARGET KEY [MODE•ACQ]/
[ •
➥ Push to select the Head-up (H-UP), Stabilized
Head-up (SH-UP), Course-up (C-UP), North-up
(N-UP) or True motion (TM) screens.
• The North-up, Stabilized Head-Up, and Course-up
screens can be selected only when a bearing data
input is connected. (pp. 42, 63)
• The TM screen requires bearing data or position data.
(pp. 42, 63)
• The TM screen is not selectable in the 32 NM or higher range.
➥ Hold down for 1 second to acquire an ATA target
on the cursor. (p. 32)
• Hold down [CLEAR]/[
the ATA target.
q
!9
w
!8
e
!7
r
t
!6
y
u !5
TLL
i
o !4
!0
!1 !3
!2
Control panel (Chinese)
]
] for 1 second to change
] (p. 21)
push [ENTER]/[
] to turn the trail function ON or
] and [CLEAR]/[
]
] for 1 second to release
q
w
e
r
t
y
u
i
o
!0
!1
!2
] and
]
