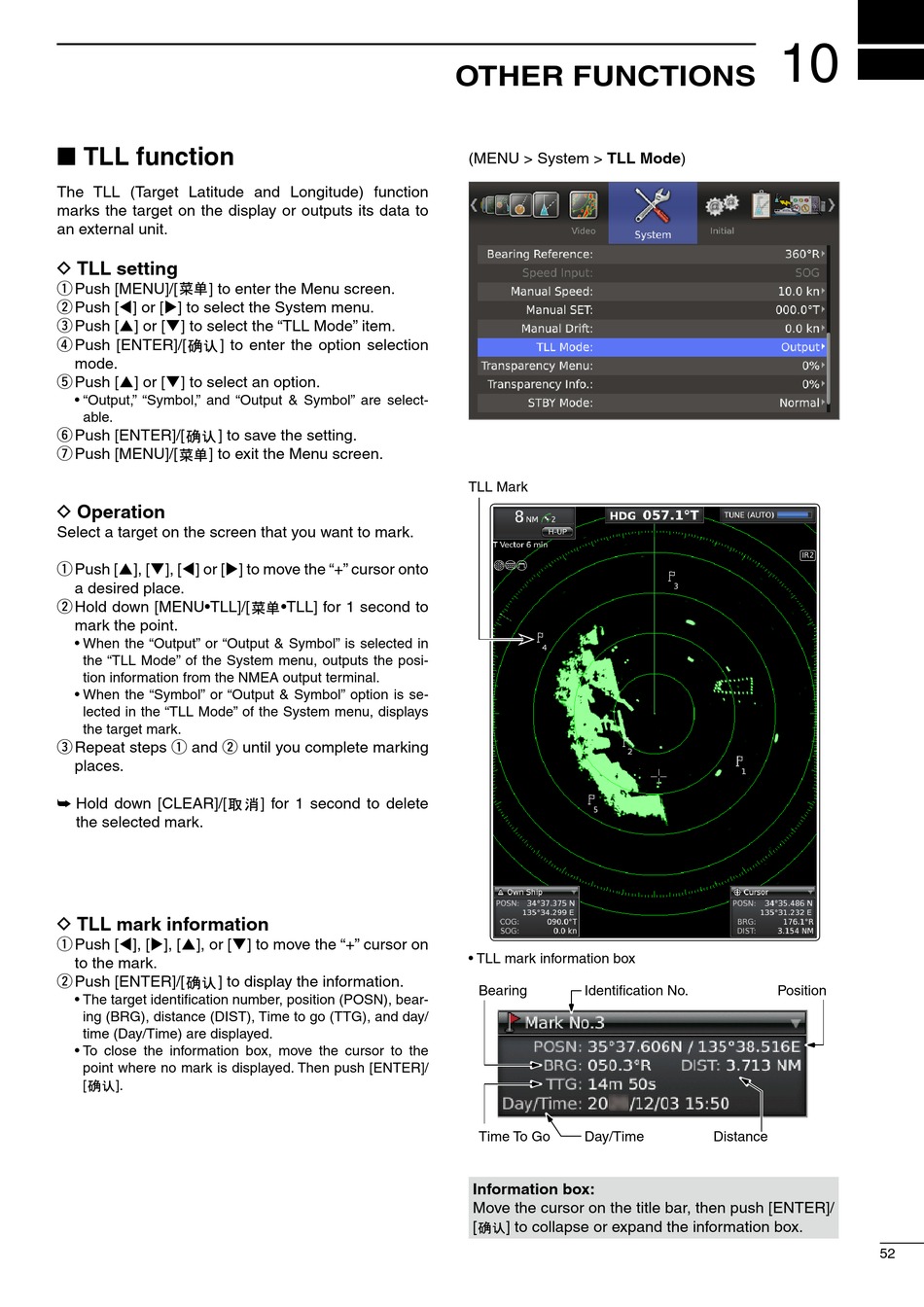

■ TLL function

The TLL (Target Latitude and Longitude) function
marks the target on the display or outputs its data to
an external unit.
D TLL setting
q Push [MENU]/[ ] to enter the Menu screen.
w Push [t] or [u] to select the System menu.
e Push [p] or [q] to select the "TLL Mode" item.
r Push [ENTER]/[ ] to enter the option selection
mode.
t Push [p] or [q] to select an option.
• "Output," "Symbol," and "Output & Symbol" are select-
able.
y Push [ENTER]/[ ] to save the setting.
u Push [MENU]/[ ] to exit the Menu screen.
D Operation
Select a target on the screen that you want to mark.
q Push [p], [q], [t] or [u] to move the "+" cursor onto
a desired place.
w Hold down [MENU•TLL]/[
mark the point.
• When the "Output" or "Output & Symbol" is selected in
the "TLL Mode" of the System menu, outputs the posi-
tion information from the NMEA output terminal.
• When the "Symbol" or "Output & Symbol" option is se-
lected in the "TLL Mode" of the System menu, displays
the target mark.
e Repeat steps q and w until you complete marking
places.
➥ Hold down [CLEAR]/[
the selected mark.
D TLL mark information
q Push [t], [u], [p], or [q] to move the "+" cursor on
to the mark.
w Push [ENTER]/[ ] to display the information.
• The target identification number, position (POSN), bear-
ing (BRG), distance (DIST), Time to go (TTG), and day/
time (Day/Time) are displayed.
• To close the information box, move the cursor to the
point where no mark is displayed. Then push [ENTER]/
[ ].
•TLL] for 1 second to
] for 1 second to delete

OTHER FUNCTIONS

(MENU > System > TLL Mode)
TLL Mark
• TLL mark information box
Bearing Identification No.
Time To Go Day/Time
Information box:
Move the cursor on the title bar, then push [ENTER]/
[ ] to collapse or expand the information box.
