■ MXR-5000 (Radar unit)
q DC POWER INPUT TERMINALS
Connect the 12 V/24 V DC power supply through
the supplied DC power cable.
w GROUND TERMINALS
Connect these terminals to ground to prevent elec-
trical shocks.

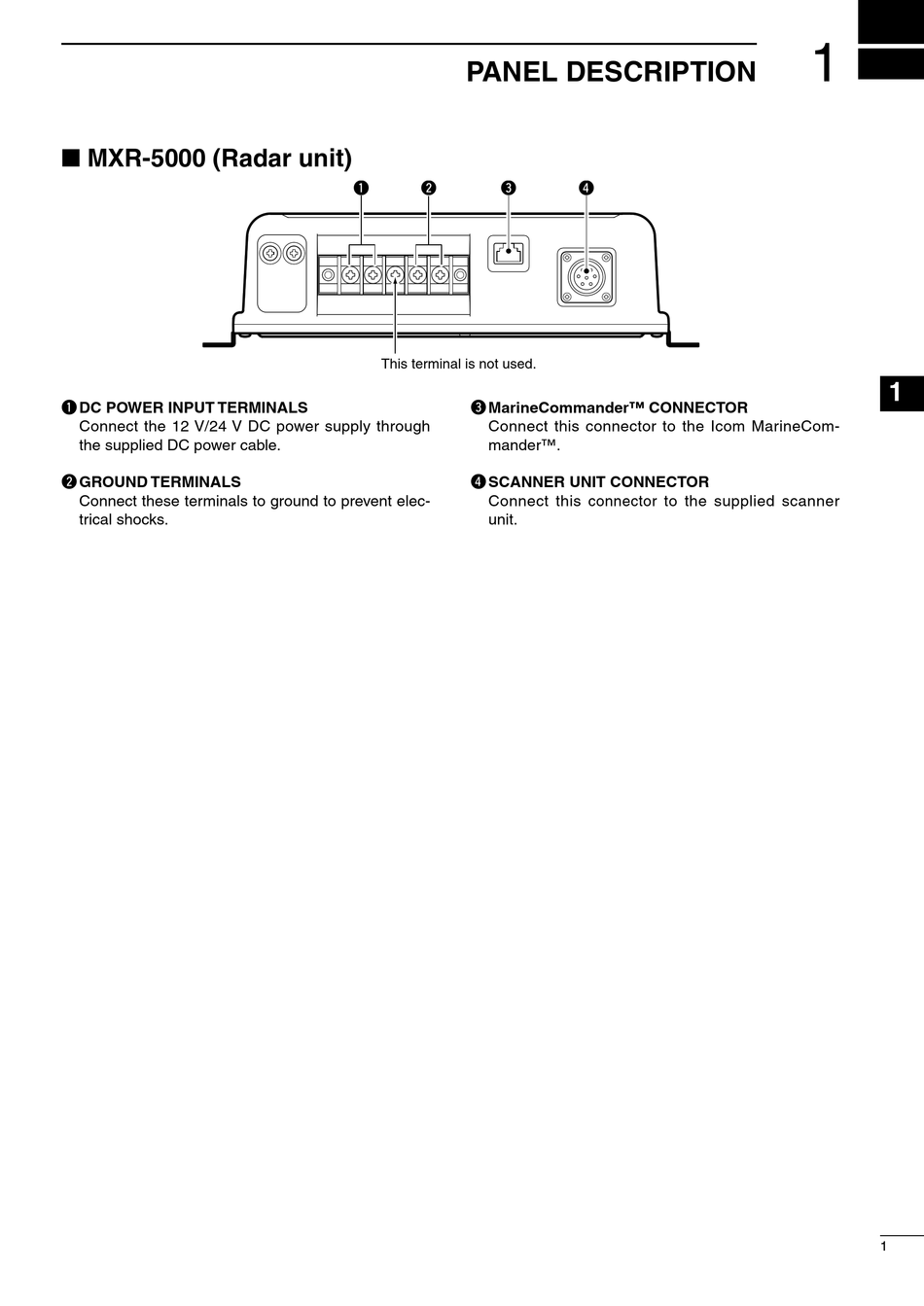

PANEL DESCRIPTION
q
w
e
This terminal is not used.
e MarineCommander™ CONNECTOR
Connect this connector to the Icom MarineCom-
mander™.
r SCANNER UNIT CONNECTOR
Connect this connector to the supplied scanner
unit.
r
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
