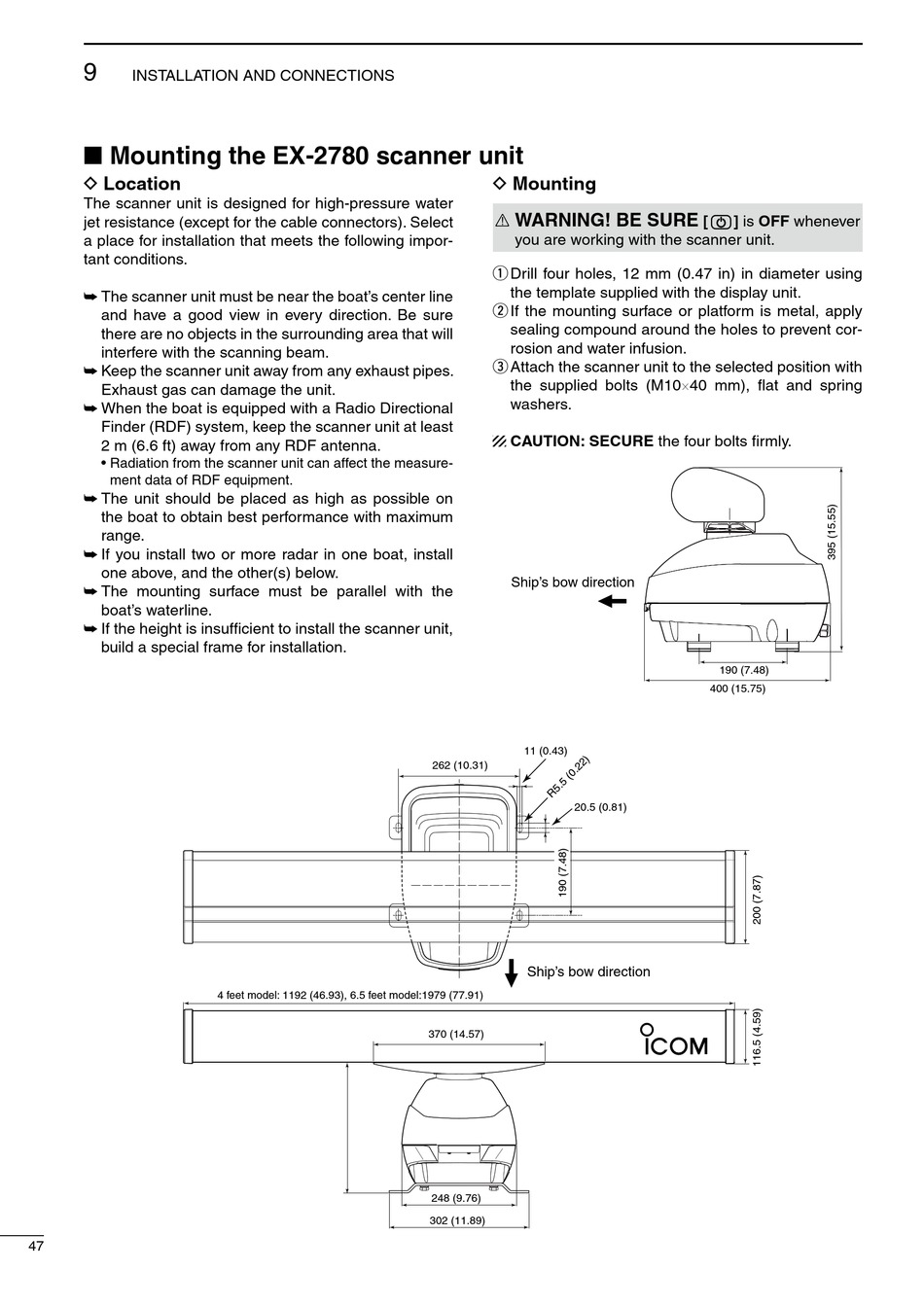

INSTALLATION AND CONNECTIONS

■ Mounting the EX-2780 scanner unit

D Location
The scanner unit is designed for high-pressure water
jet resistance (except for the cable connectors). Select
a place for installation that meets the following impor-
tant conditions.
➥ The scanner unit must be near the boat's center line
and have a good view in every direction. Be sure
there are no objects in the surrounding area that will
interfere with the scanning beam.
➥ Keep the scanner unit away from any exhaust pipes.
Exhaust gas can damage the unit.
➥ When the boat is equipped with a Radio Directional
Finder (RDF) system, keep the scanner unit at least
2 m (6.6 ft) away from any RDF antenna.
• Radiation from the scanner unit can affect the measure-
ment data of RDF equipment.
➥ The unit should be placed as high as possible on
the boat to obtain best performance with maximum
range.
➥ If you install two or more radar in one boat, install
one above, and the other(s) below.
➥ The mounting surface must be parallel with the
boat's waterline.
➥ If the height is insufficient to install the scanner unit,
build a special frame for installation.
47
4 feet model: 1192 (46.93), 6.5 feet model:1979 (77.91)
D Mounting
WARNING! BE SURE
R
you are working with the scanner unit.
q Drill four holes, 12 mm (0.47 in) in diameter using
the template supplied with the display unit.
w If the mounting surface or platform is metal, apply
sealing compound around the holes to prevent cor-
rosion and water infusion.
e Attach the scanner unit to the selected position with
the supplied bolts (M10×40 mm), flat and spring
washers.
CAUTION: SECURE the four bolts firmly.
Ship's bow direction
11 (0.43)
262 (10.31)
20.5 (0.81)
Ship's bow direction
370 (14.57)
248 (9.76)
302 (11.89)
[ ] is OFF whenever
190 (7.48)
400 (15.75)
