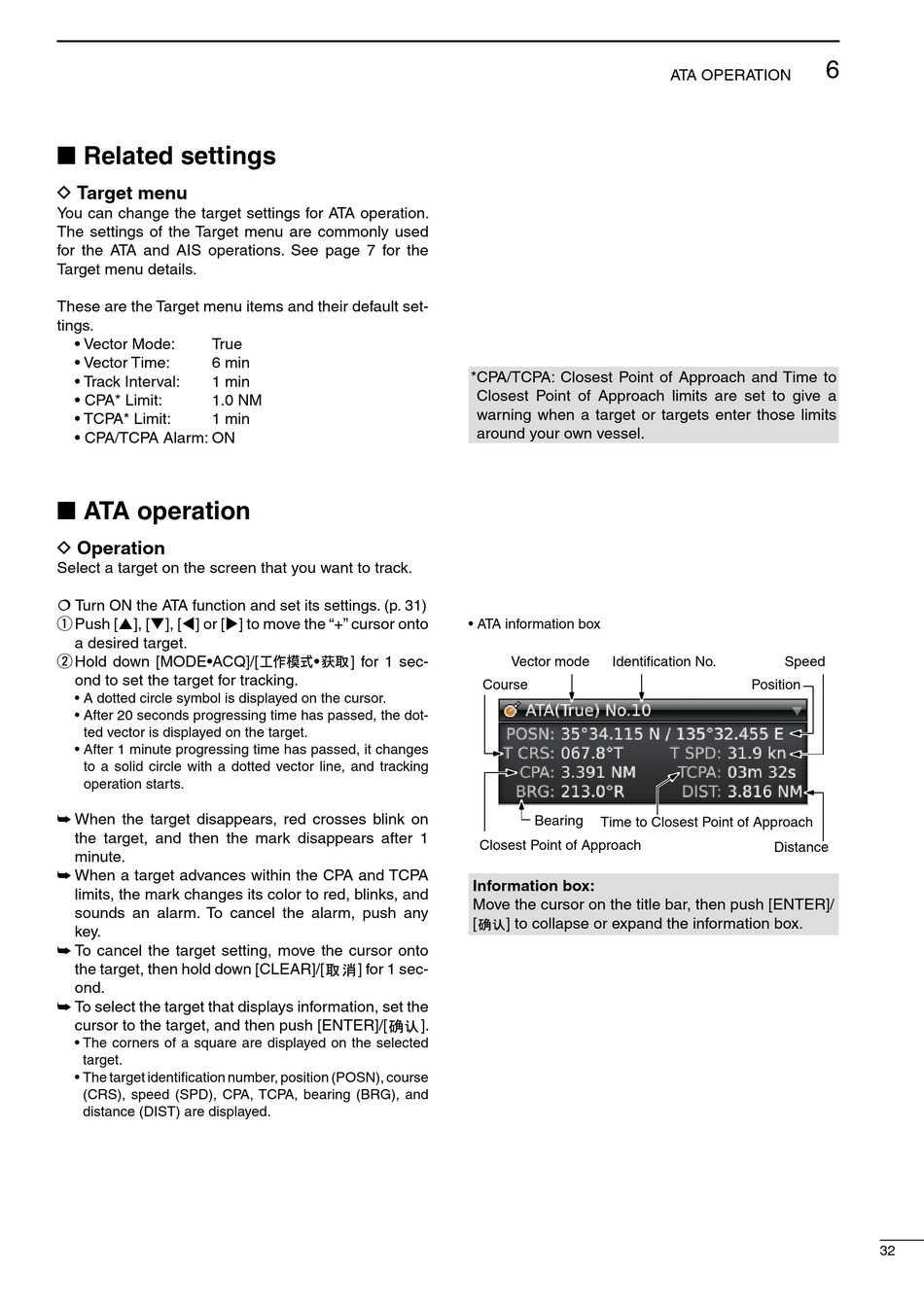

■ Related settings

D Target menu
You can change the target settings for ATA operation.
The settings of the Target menu are commonly used
for the ATA and AIS operations. See page 7 for the
Target menu details.
These are the Target menu items and their default set-
tings.
• Vector Mode: True
• Vector Time: 6 min
• Track Interval: 1 min
• CPA* Limit: 1.0 NM
• TCPA* Limit: 1 min
• CPA/TCPA Alarm: ON

■ ATA operation

D Operation
Select a target on the screen that you want to track.
 Turn ON the ATA function and set its settings. (p. 31)
q Push [p], [q], [t] or [u] to move the "+" cursor onto
a desired target.
w Hold down [MODE•ACQ]/[
ond to set the target for tracking.
• A dotted circle symbol is displayed on the cursor.
• After 20 seconds progressing time has passed, the dot-
ted vector is displayed on the target.
• After 1 minute progressing time has passed, it changes
to a solid circle with a dotted vector line, and tracking
operation starts.
➥ When the target disappears, red crosses blink on
the target, and then the mark disappears after 1
minute.
➥ When a target advances within the CPA and TCPA
limits, the mark changes its color to red, blinks, and
sounds an alarm. To cancel the alarm, push any
key.
➥ To cancel the target setting, move the cursor onto
the target, then hold down [CLEAR]/[
ond.
➥ To select the target that displays information, set the
cursor to the target, and then push [ENTER]/[
• The corners of a square are displayed on the selected
target.
• The target identification number, position (POSN), course
(CRS), speed (SPD), CPA, TCPA, bearing (BRG), and
distance (DIST) are displayed.
* CPA/TCPA: Closest Point of Approach and Time to
Closest Point of Approach limits are set to give a
warning when a target or targets enter those limits
around your own vessel.
• ATA information box
• ] for 1 sec-
Course
Closest Point of Approach
Information box:
Move the cursor on the title bar, then push [ENTER]/
[
] for 1 sec-
].
ATA OPERATION
Vector mode Identification No.
Bearing
Time to Closest Point of Approach
] to collapse or expand the information box.
6
Speed
Position
Distance
