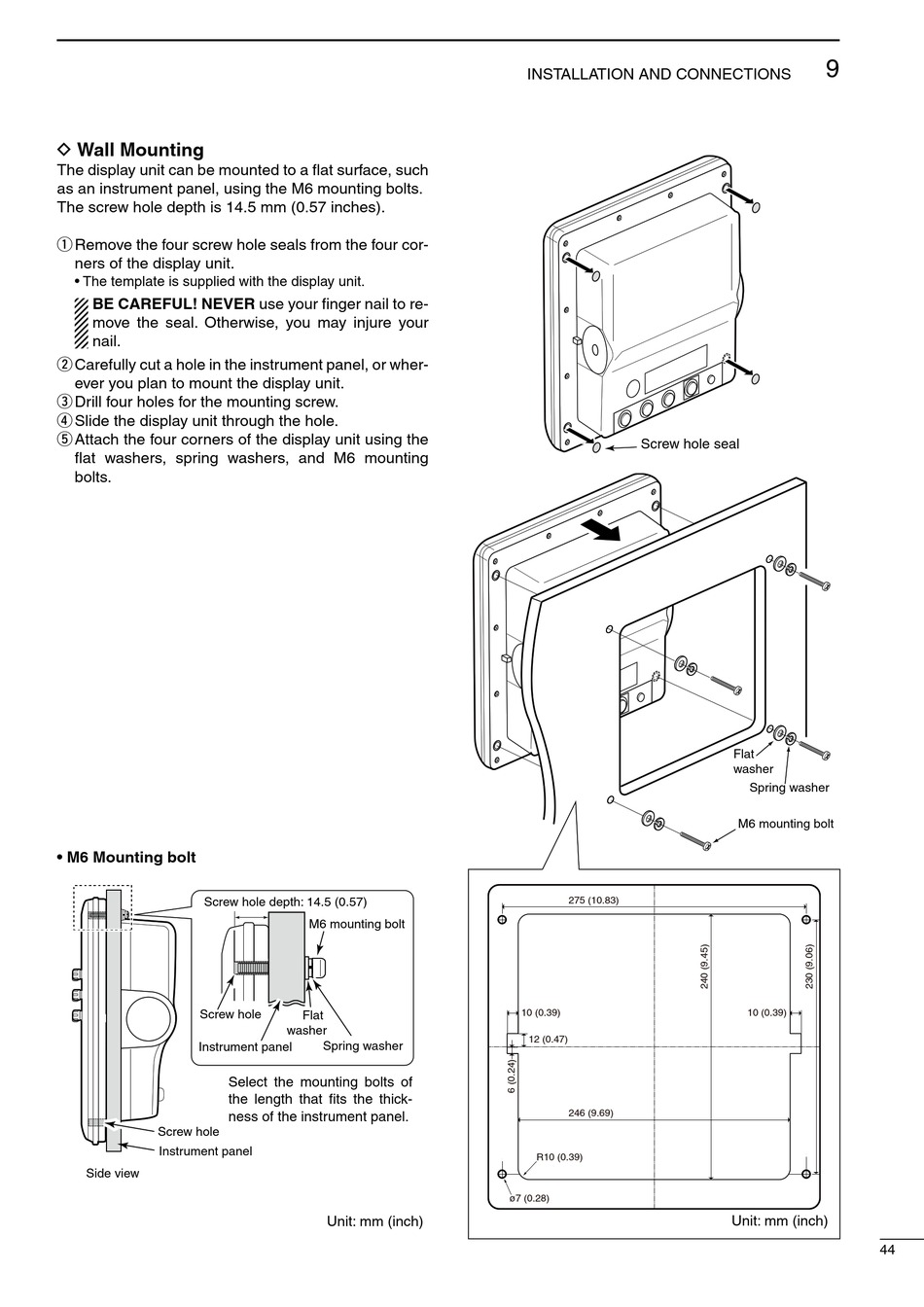

D Wall Mounting
The display unit can be mounted to a flat surface, such
as an instrument panel, using the M6 mounting bolts.
The screw hole depth is 14.5 mm (0.57 inches).
q Remove the four screw hole seals from the four cor-
ners of the display unit.
• The template is supplied with the display unit.
BE CAREFUL! NEVER use your finger nail to re-
move the seal. Otherwise, you may injure your
nail.
w Carefully cut a hole in the instrument panel, or wher-
ever you plan to mount the display unit.
e Drill four holes for the mounting screw.
r Slide the display unit through the hole.
t Attach the four corners of the display unit using the
flat washers, spring washers, and M6 mounting
bolts.
• M6 Mounting bolt
Screw hole depth: 14.5 (0.57)
Screw hole
Instrument panel
Select the mounting bolts of
the length that fits the thick-
ness of the instrument panel.
Screw hole
Instrument panel
Side view
M6 mounting bolt
Flat
washer
Spring washer
Unit: mm (inch)
INSTALLATION AND CONNECTIONS
Screw hole seal
275 (10.83)
10 (0.39)
12 (0.47)
246 (9.69)
R10 (0.39)
ø7 (0.28)
9
Flat
washer
Spring washer
M6 mounting bolt
10 (0.39)
Unit: mm (inch)
