■ Status of the vessel icon

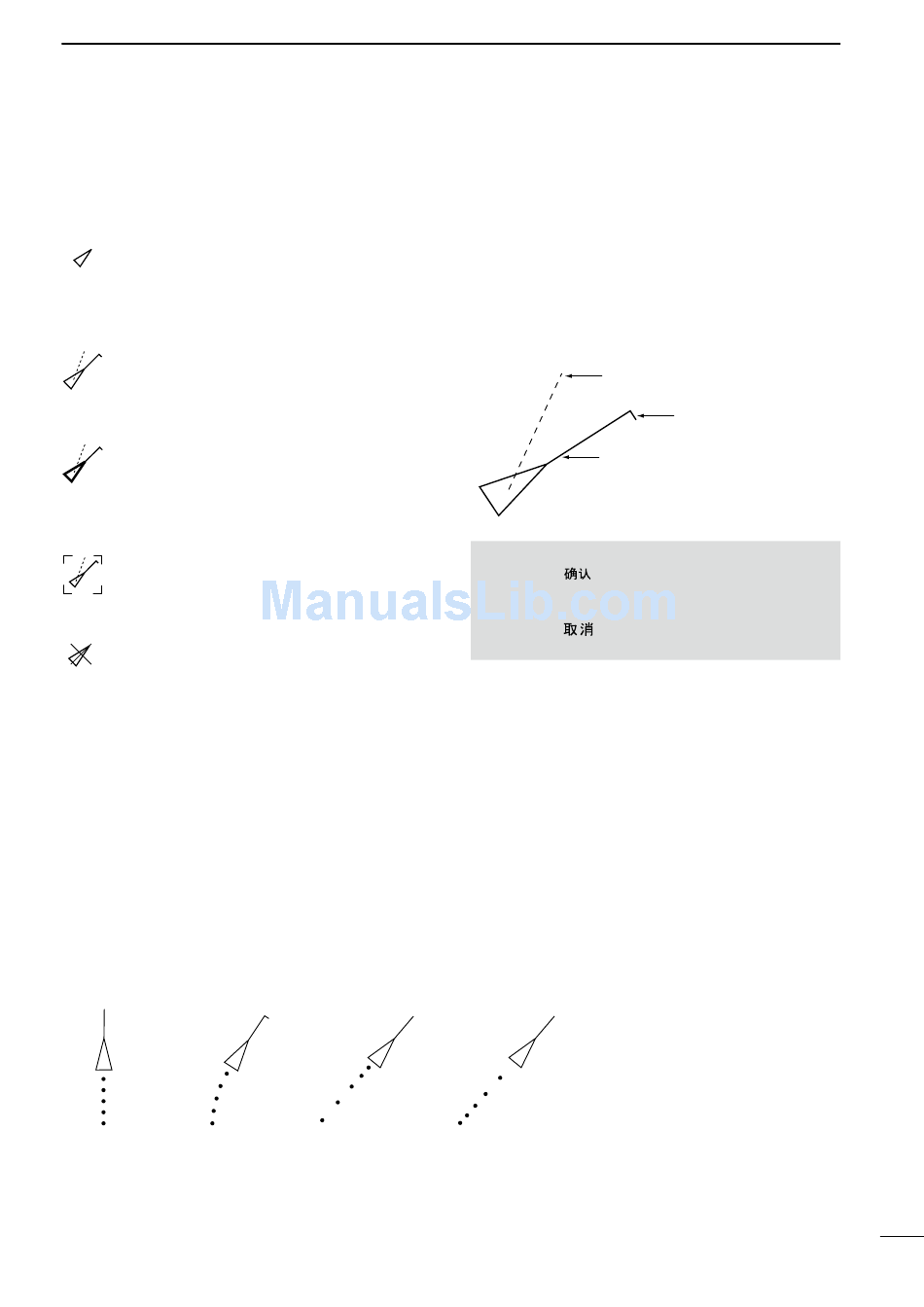

There are 5 kinds of target vessel status.
Sleeping target:
The AIS signal has been updated (received),
but the distance from your vessel is far, or you
set it as 'sleeping.' The target is displayed as
just a triangle without a heading or vector line.
Activated target:
The target is displayed with the heading line,
SOG (Speed Over Ground), COG (Course
Over Ground) vector and ROT (Rate of Turn).
Dangerous target:
Even if the target's status is sleeping or acti-
vated, when it enters your CPA and TCPA limit
settings, the target is displayed with a thick line
and changes its color to red.
Selected target:
The target information is displayed in the AIS
information box.
Lost target*:
When the AIS signal has not been updated
(received) for a specific time period, the target
triangle is marked with a red cross.
If the AIS signal has still not been updated (re-
ceived) for 6 minutes and 40 seconds, the tar-
get icon disappears.
* A vessel is regarded as a "Lost target" after a specified pe-
riod of time has passed since the vessel last transmitted
data. (p. 9)

■ Plots (AIS)

The plot displays the activated target, SAR, SART,
MOB, or EPIRB's past positions as 5 dots, during each
specified tracking interval.
• The target track may change, depending on the setting in
the "Track Interval" item of the Target menu. (p. 7)
Going straight Turning right
• Activated target
➥ When the sleeping target is selected, hold down
[ENTER]/[
the selected target to activated.
➥ When the activated target is selected, hold down
[CLEAR]/[
ed target to sleeping.
Decelerating Accelerating
AIS OPERATION
SOG (Speed Over Ground) and
COG (Course Over Ground) vector
ROT (Rate of Turn)
Heading line
If there is no heading data, the line points
in the direction of the COG.
] for 1 second to manually change
] for 1 second to change the select-
