10
OTHER FUNCTIONS

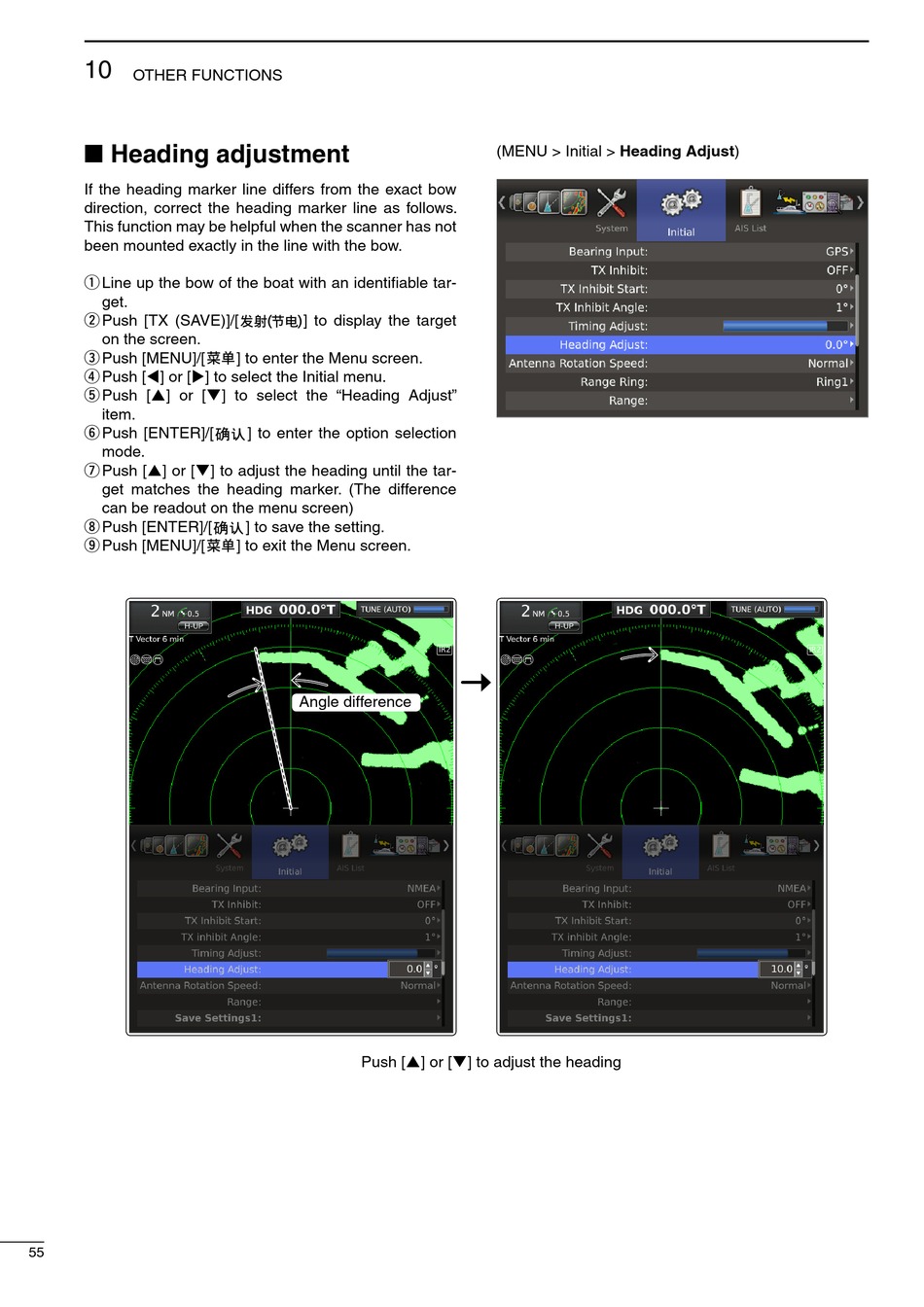

■ Heading adjustment

If the heading marker line differs from the exact bow
direction, correct the heading marker line as follows.
This function may be helpful when the scanner has not
been mounted exactly in the line with the bow.
q Line up the bow of the boat with an identifiable tar-
get.
w Push [TX (SAVE)]/[
on the screen.
e Push [MENU]/[
r Push [t] or [u] to select the Initial menu.
t Push [p] or [q] to select the "Heading Adjust"
item.
y Push [ENTER]/[
mode.
u Push [p] or [q] to adjust the heading until the tar-
get matches the heading marker. (The difference
can be readout on the menu screen)
i Push [ENTER]/[
o Push [MENU]/[
55
] to display the target
] to enter the Menu screen.
] to enter the option selection
] to save the setting.
] to exit the Menu screen.
Angle difference
Push [p] or [q] to adjust the heading
(MENU > Initial > Heading Adjust)
