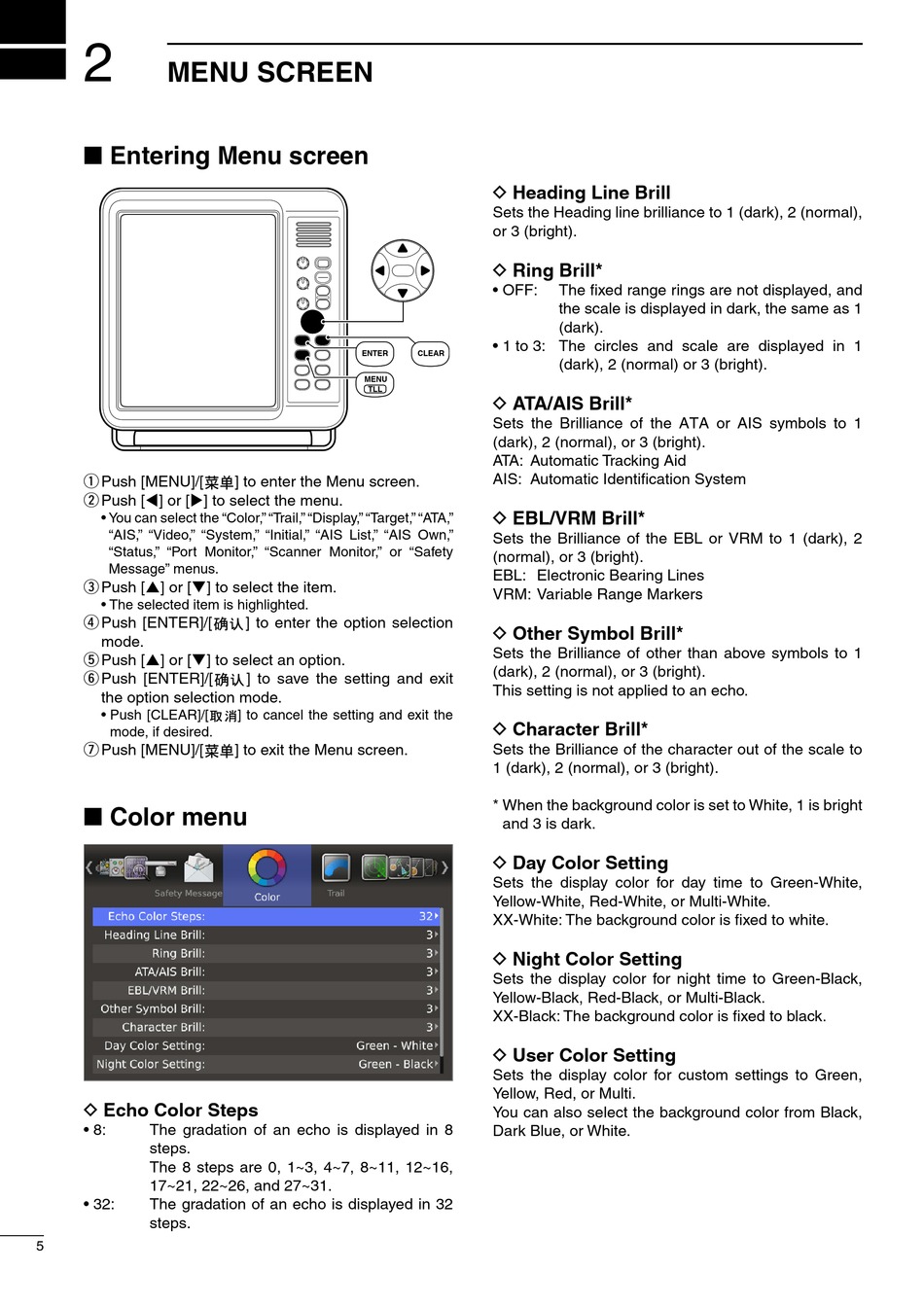

MENU SCREEN

■ Entering Menu screen

q Push [MENU]/[
w Push [t] or [u] to select the menu.
• You can select the "Color," "Trail," "Display," "Target," "ATA,"
"AIS," "Video," "System," "Initial," "AIS List," "AIS Own,"
"Status," "Port Monitor," "Scanner Monitor," or "Safety
Message" menus.
e Push [p] or [q] to select the item.
• The selected item is highlighted.
r Push [ENTER]/[
mode.
t Push [p] or [q] to select an option.
y Push [ENTER]/[
the option selection mode.
• Push [CLEAR]/[
mode, if desired.
u Push [MENU]/[

■ Color menu

D Echo Color Steps
• 8: The gradation of an echo is displayed in 8
steps.
The 8 steps are 0, 1~3, 4~7, 8~11, 12~16,
17~21, 22~26, and 27~31.
• 32: The gradation of an echo is displayed in 32
steps.
5
ENTER CLEAR
ENTER
MENU
TLL
MENU
TLL
] to enter the Menu screen.
] to enter the option selection
] to save the setting and exit
] to cancel the setting and exit the
] to exit the Menu screen.
D Heading Line Brill
Sets the Heading line brilliance to 1 (dark), 2 (normal),
or 3 (bright).
D Ring Brill*
• OFF: The fixed range rings are not displayed, and
the scale is displayed in dark, the same as 1
(dark).
• 1 to 3: The circles and scale are displayed in 1
CLEAR
(dark), 2 (normal) or 3 (bright).
D ATA/AIS Brill*
Sets the Brilliance of the ATA or AIS symbols to 1
(dark), 2 (normal), or 3 (bright).
ATA: Automatic Tracking Aid
AIS: Automatic Identification System
D EBL/VRM Brill*
Sets the Brilliance of the EBL or VRM to 1 (dark), 2
(normal), or 3 (bright).
EBL: Electronic Bearing Lines
VRM: Variable Range Markers
D Other Symbol Brill*
Sets the Brilliance of other than above symbols to 1
(dark), 2 (normal), or 3 (bright).
This setting is not applied to an echo.
D Character Brill*
Sets the Brilliance of the character out of the scale to
1 (dark), 2 (normal), or 3 (bright).
* When the background color is set to White, 1 is bright
and 3 is dark.
D Day Color Setting
Sets the display color for day time to Green-White,
Yellow-White, Red-White, or Multi-White.
XX-White: The background color is fixed to white.
D Night Color Setting
Sets the display color for night time to Green-Black,
Yellow-Black, Red-Black, or Multi-Black.
XX-Black: The background color is fixed to black.
D User Color Setting
Sets the display color for custom settings to Green,
Yellow, Red, or Multi.
You can also select the background color from Black,
Dark Blue, or White.
