BASIC OPERATION

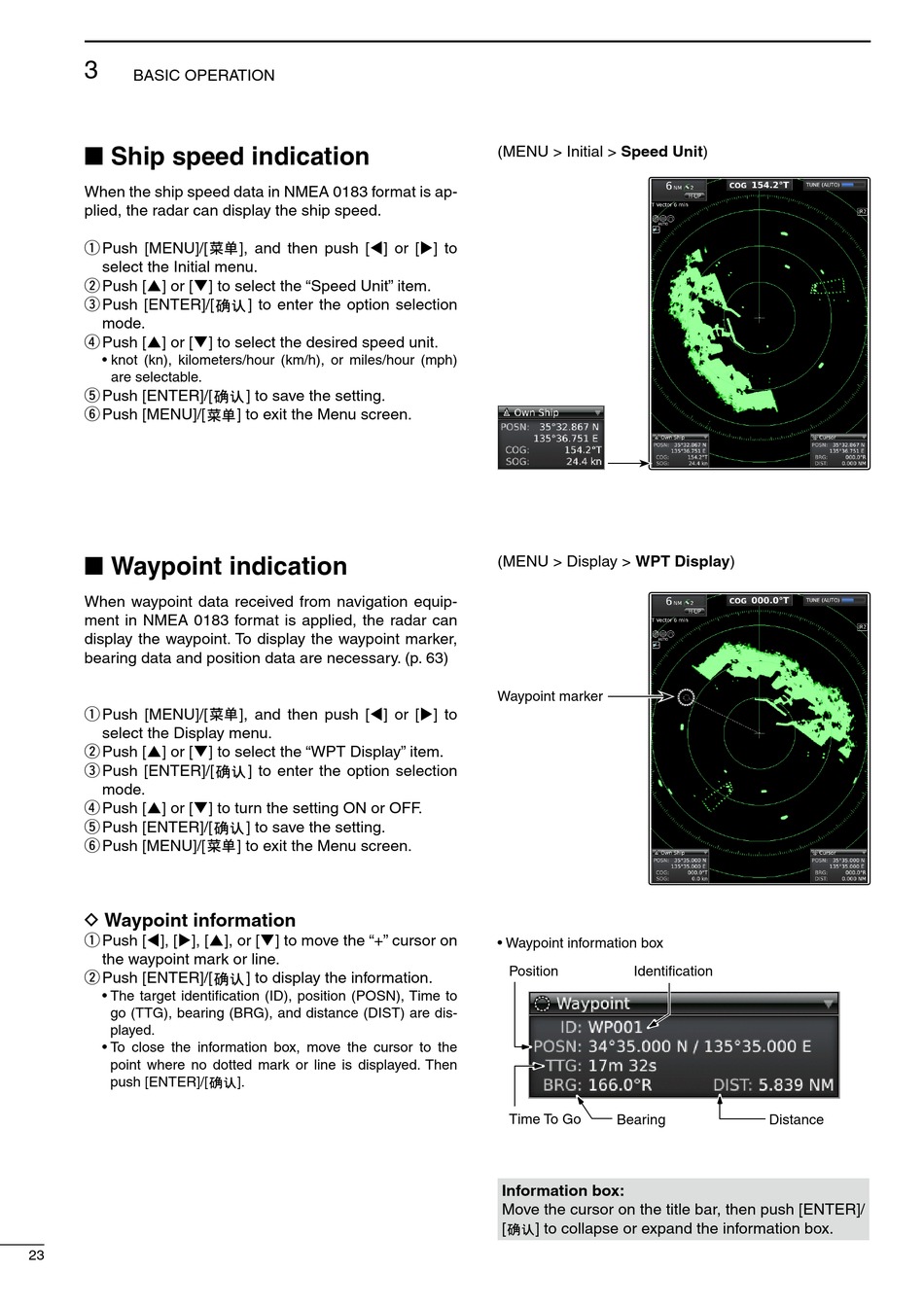

■ Ship speed indication

When the ship speed data in NMEA 0183 format is ap-
plied, the radar can display the ship speed.
q Push [MENU]/[
select the Initial menu.
w Push [p] or [q] to select the "Speed Unit" item.
e Push [ENTER]/[
mode.
r Push [p] or [q] to select the desired speed unit.
• knot (kn), kilometers/hour (km/h), or miles/hour (mph)
are selectable.
t Push [ENTER]/[
y Push [MENU]/[

■ Waypoint indication

When waypoint data received from navigation equip-
ment in NMEA 0183 format is applied, the radar can
display the waypoint. To display the waypoint marker,
bearing data and position data are necessary. (p. 63)
q Push [MENU]/[
select the Display menu.
w Push [p] or [q] to select the "WPT Display" item.
e Push [ENTER]/[
mode.
r Push [p] or [q] to turn the setting ON or OFF.
t Push [ENTER]/[
y Push [MENU]/[
D Waypoint information
q Push [t], [u], [p], or [q] to move the "+" cursor on
the waypoint mark or line.
w Push [ENTER]/[
• The target identification (ID), position (POSN), Time to
go (TTG), bearing (BRG), and distance (DIST) are dis-
played.
• To close the information box, move the cursor to the
point where no dotted mark or line is displayed. Then
push [ENTER]/[
23
], and then push [t] or [u] to
] to enter the option selection
] to save the setting.
] to exit the Menu screen.
], and then push [t] or [u] to
] to enter the option selection
] to save the setting.
] to exit the Menu screen.
] to display the information.
].
(MENU > Initial > Speed Unit)
(MENU > Display > WPT Display)
Waypoint marker
• Waypoint information box
Position Identification
Time To Go
Bearing
Information box:
Move the cursor on the title bar, then push [ENTER]/
[ ] to collapse or expand the information box.
Distance
