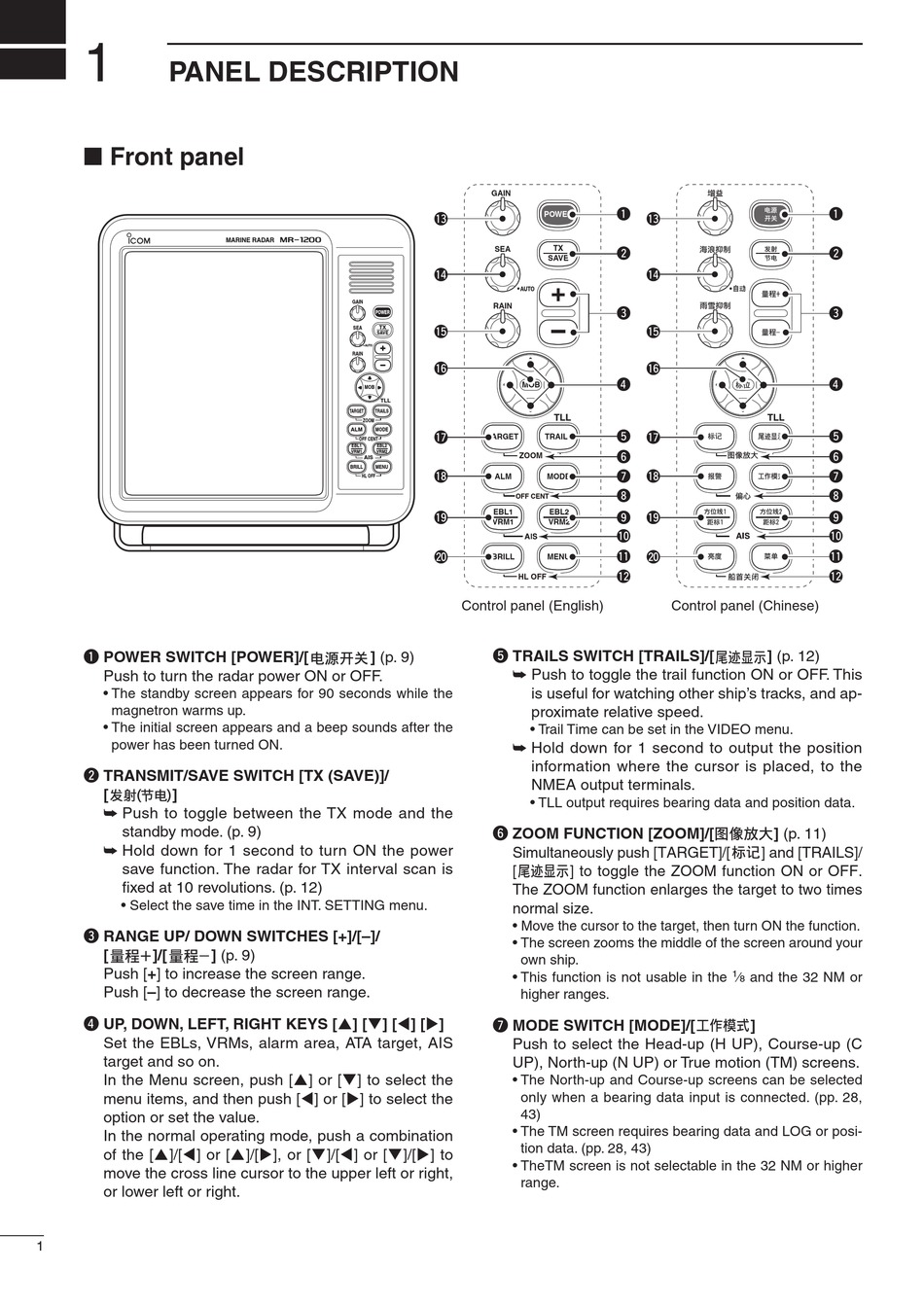

PANEL DESCRIPTION

■ Front panel

q POWER SWITCH [POWER]/[
Push to turn the radar power ON or OFF.
• The standby screen appears for 90 seconds while the
magnetron warms up.
• The initial screen appears and a beep sounds after the
power has been turned ON.
w TRANSMIT/SAVE SWITCH [TX (SAVE)]/
[ ]
➥ Push to toggle between the TX mode and the
standby mode. (p. 9)
➥ Hold down for 1 second to turn ON the power
save function. The radar for TX interval scan is
fixed at 10 revolutions. (p. 12)
• Select the save time in the INT. SETTING menu.
e RANGE UP/ DOWN SWITCHES [+]/[–]/
[ ]/[
Push [+] to increase the screen range.
Push [–] to decrease the screen range.
r UP, DOWN, LEFT, RIGHT KEYS [p] [q] [t] [u]
Set the EBLs, VRMs, alarm area, ATA target, AIS
target and so on.
In the Menu screen, push [p] or [q] to select the
menu items, and then push [t] or [u] to select the
option or set the value.
In the normal operating mode, push a combination
of the [p]/[t] or [p]/[u], or [q]/[t] or [q]/[u] to
move the cross line cursor to the upper left or right,
or lower left or right.
1
MARINE RADAR MR-1200
GAIN
POWER
SEA TX
SAVE
AUTO
RAIN
MOB
TLL
TARGET TRAILS
ZOOM
ALM MODE
OFF CENT
EBL1 EBL2
VRM1 VRM2
AIS
BRILL MENU
HL OFF
] (p. 9)
] (p. 9)
GAIN
POWER
!3
TX
SEA
SAVE
!4
+
RAIN
-
!5
!6
MOB
!7
TARGET TRAILS
ZOOM
!8
ALM MODE
OFF CENT
EBL1 EBL2
!9
VRM1 VRM2
@0
BRILL MENU
HL OFF
Control panel (English)
t TRAILS SWITCH [TRAILS]/[
➥ Push to toggle the trail function ON or OFF. This
is useful for watching other ship's tracks, and ap-
proximate relative speed.
• Trail Time can be set in the VIDEO menu.
➥ Hold down for 1 second to output the position
information where the cursor is placed, to the
NMEA output terminals.
• TLL output requires bearing data and position data.
y ZOOM FUNCTION [ZOOM]/[
Simultaneously push [TARGET]/[
[ ] to toggle the ZOOM function ON or OFF.
The ZOOM function enlarges the target to two times
normal size.
• Move the cursor to the target, then turn ON the function.
• The screen zooms the middle of the screen around your
own ship.
• This function is not usable in the
higher ranges.
u MODE SWITCH [MODE]/[
Push to select the Head-up (H UP), Course-up (C
UP), North-up (N UP) or True motion (TM) screens.
• The North-up and Course-up screens can be selected
only when a bearing data input is connected. (pp. 28,
43)
• The TM screen requires bearing data and LOG or posi-
tion data. (pp. 28, 43)
• TheTM screen is not selectable in the 32 NM or higher
range.
q
!3
w
!4
e
!5
!6
r
t
!7
y
u !8
i
o !9
!0
!1
@0
!2
Control panel (Chinese)
] (p. 12)
] (p. 11)
] and [TRAILS]/
1 ⁄ and the 32 NM or
