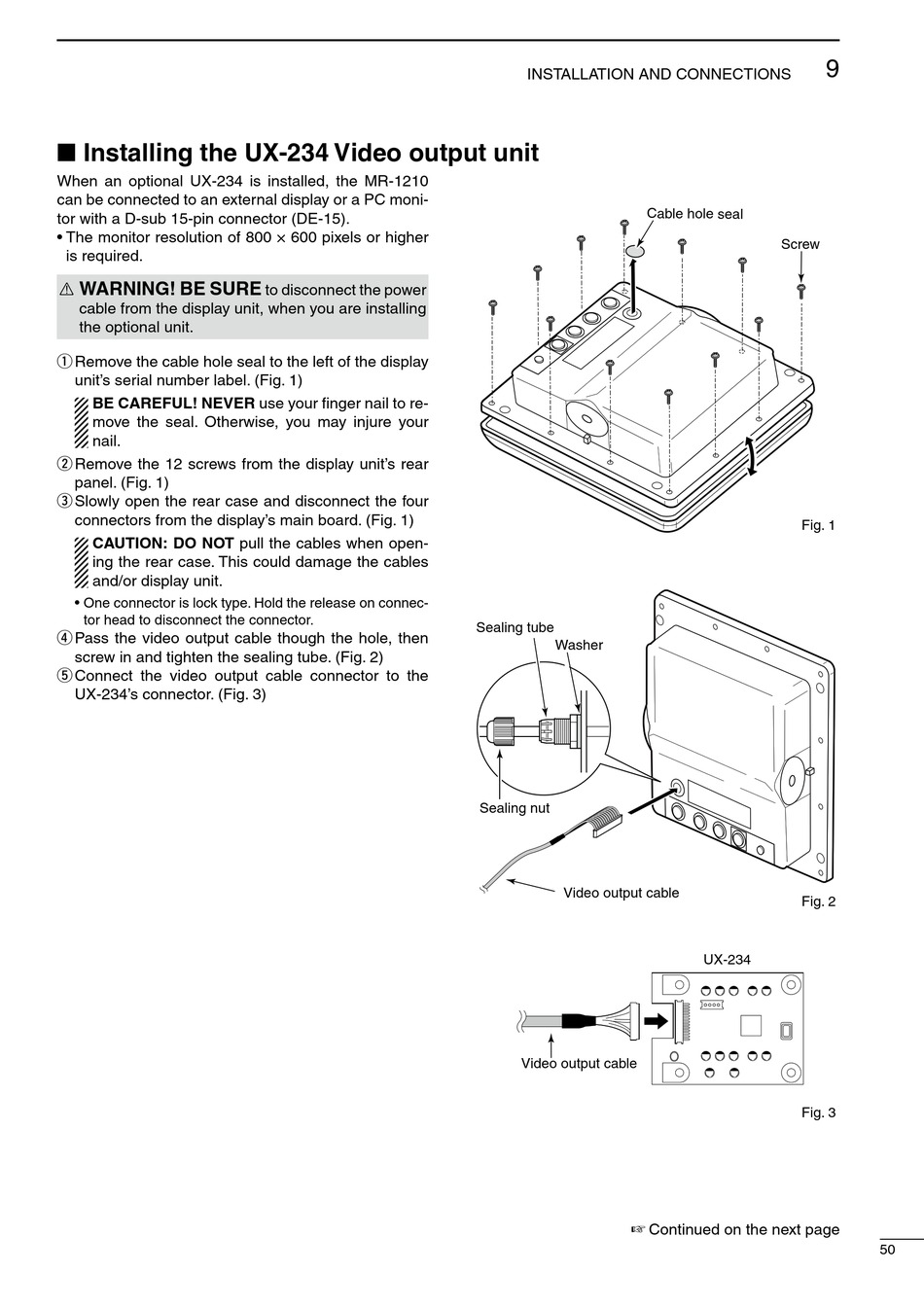

■ Installing the UX-234 Video output unit

When an optional UX-234 is installed, the MR-1210
can be connected to an external display or a PC moni-
tor with a D-sub 15-pin connector (DE-15).
• The monitor resolution of 800 × 600 pixels or higher
is required.
WARNING! BE SURE
R
cable from the display unit, when you are installing
the optional unit.
q Remove the cable hole seal to the left of the display
unit's serial number label. (Fig. 1)
BE CAREFUL! NEVER use your finger nail to re-
move the seal. Otherwise, you may injure your
nail.
w Remove the 12 screws from the display unit's rear
panel. (Fig. 1)
e Slowly open the rear case and disconnect the four
connectors from the display's main board. (Fig. 1)
CAUTION: DO NOT pull the cables when open-
ing the rear case. This could damage the cables
and/or display unit.
• One connector is lock type. Hold the release on connec-
tor head to disconnect the connector.
r Pass the video output cable though the hole, then
screw in and tighten the sealing tube. (Fig. 2)
t Connect the video output cable connector to the
UX-234's connector. (Fig. 3)
to disconnect the power
INSTALLATION AND CONNECTIONS
Sealing tube
Washer
Sealing nut
Video output cable
Video output cable
☞ Continued on the next page
9
Screw
Fig. 1
Fig. 2
UX-234
Fig. 3
50
