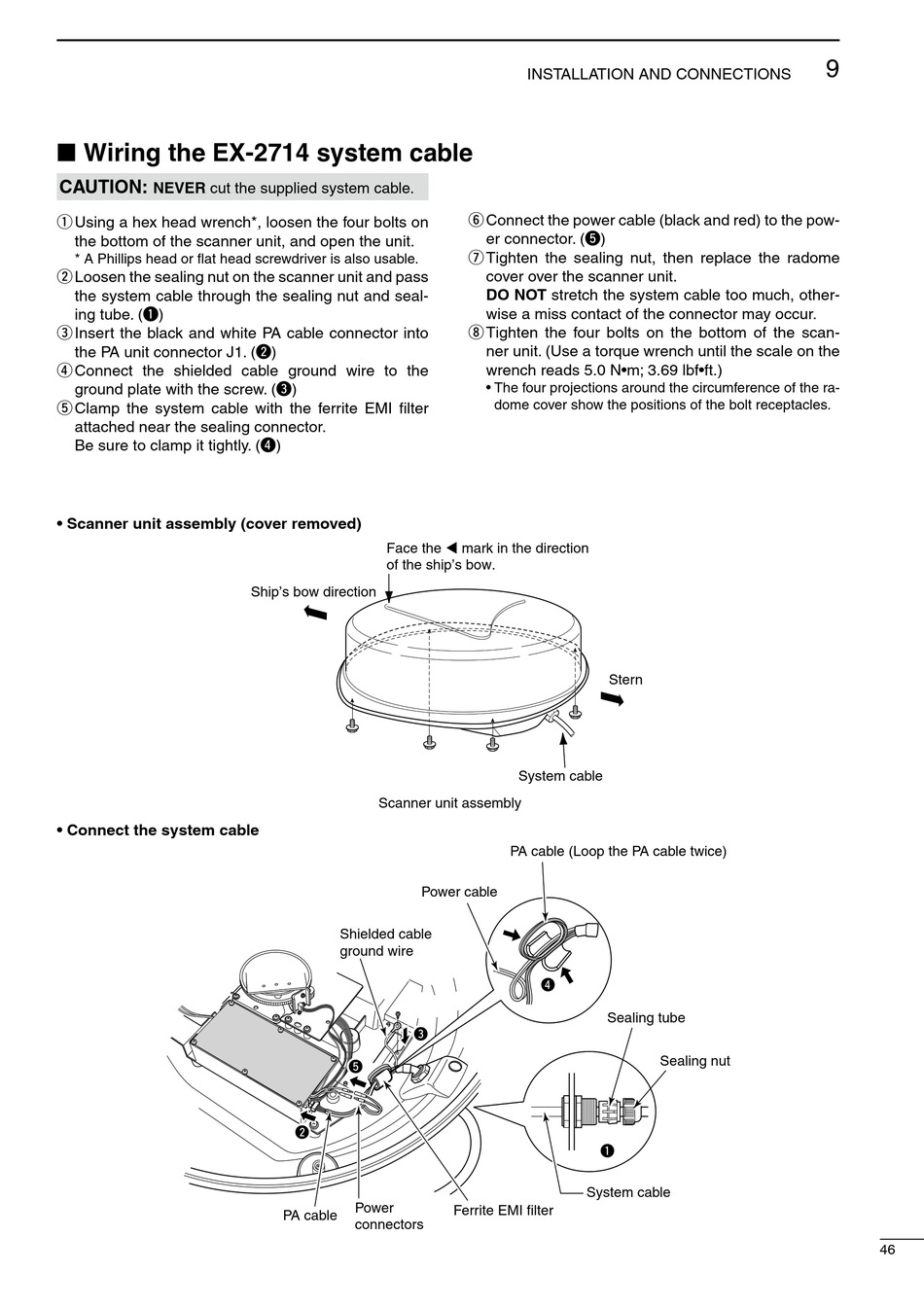

■ Wiring the EX-2714 system cable

CAUTION:
NEVER cut the supplied system cable.
q Using a hex head wrench*, loosen the four bolts on
the bottom of the scanner unit, and open the unit.
* A Phillips head or flat head screwdriver is also usable.
w Loosen the sealing nut on the scanner unit and pass
the system cable through the sealing nut and seal-
ing tube. (q)
e Insert the black and white PA cable connector into
the PA unit connector J1. (w)
r Connect the shielded cable ground wire to the
ground plate with the screw. (e)
t Clamp the system cable with the ferrite EMI filter
attached near the sealing connector.
Be sure to clamp it tightly. (r)
• Scanner unit assembly (cover removed)
• Connect the system cable
Face the
of the ship's bow.
Ship's bow direction
Scanner unit assembly
Power cable
Shielded cable
ground wire
e
t
w
Power
PA cable
connectors
INSTALLATION AND CONNECTIONS
y Connect the power cable (black and red) to the pow-
er connector. (t)
u Tighten the sealing nut, then replace the radome
cover over the scanner unit.
DO NOT stretch the system cable too much, other-
wise a miss contact of the connector may occur.
i Tighten the four bolts on the bottom of the scan-
ner unit. (Use a torque wrench until the scale on the
wrench reads 5.0 N•m; 3.69 lbf•ft.)
• The four projections around the circumference of the ra-
dome cover show the positions of the bolt receptacles.
mark in the direction
Stern
System cable
PA cable (Loop the PA cable twice)
r
Sealing tube
q
System cable
Ferrite EMI filter
9
Sealing nut
