9
INSTALLATION AND CONNECTIONS

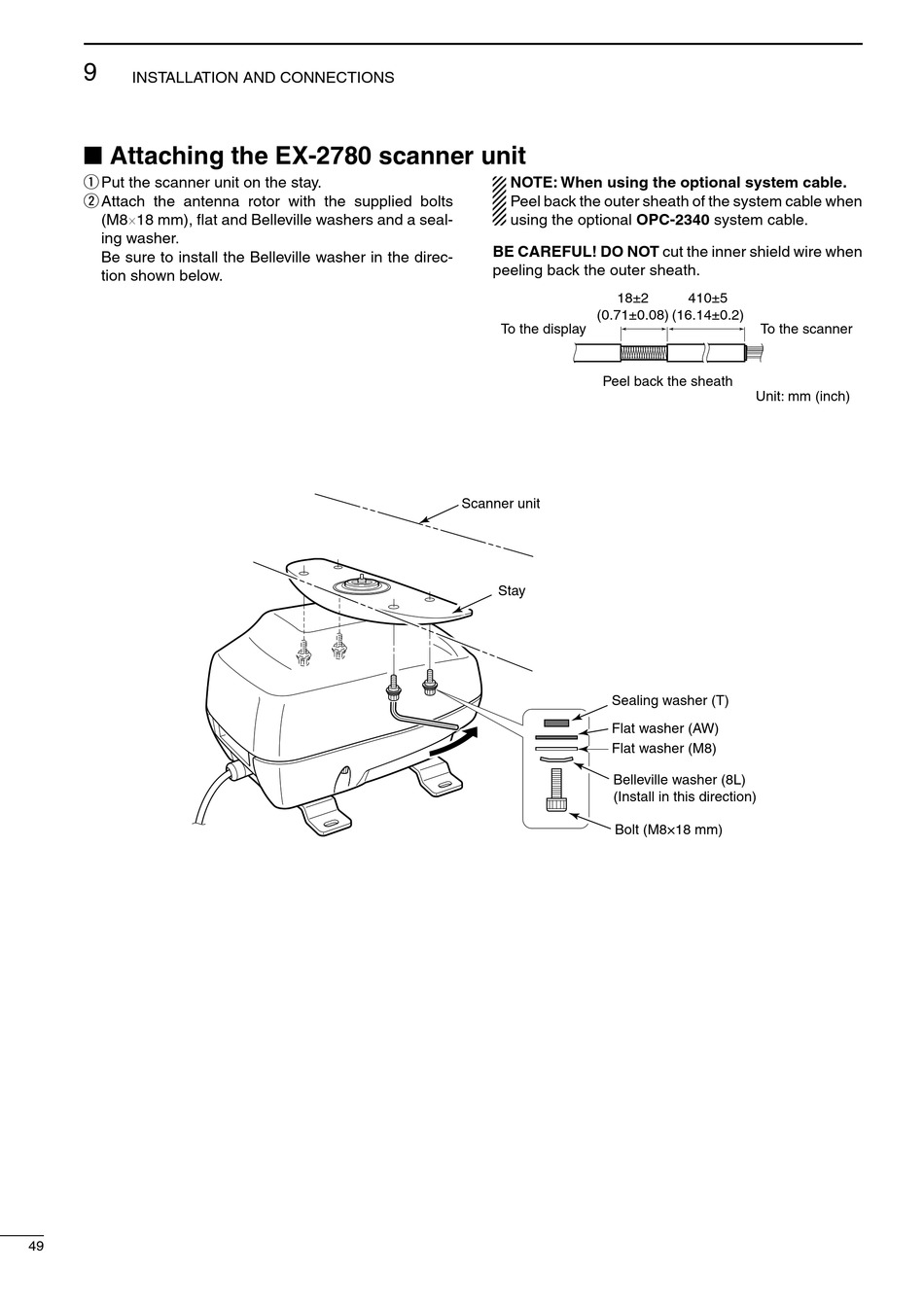

■ Attaching the EX-2780 scanner unit

q Put the scanner unit on the stay.
w Attach the antenna rotor with the supplied bolts
(M8×18 mm), flat and Belleville washers and a seal-
ing washer.
Be sure to install the Belleville washer in the direc-
tion shown below.
49
NOTE: When using the optional system cable.
Peel back the outer sheath of the system cable when
using the optional OPC-2340 system cable.
BE CAREFUL! DO NOT cut the inner shield wire when
peeling back the outer sheath.
18±2
(0.71±0.08)
To the display
Peel back the sheath
Scanner unit
Stay
Sealing washer (T)
Flat washer (AW)
Flat washer (M8)
Belleville washer (8L)
(Install in this direction)
Bolt (M8×18 mm)
410±5
(16.14±0.2)
To the scanner
Unit: mm (inch)
