Easy-to-See Large 12.1-inch TFT Display
Assists Your Safe Navigation
• Three Types of Scanner Units
MR-1200RII :
36NM range, 4kW radome scanner
MR-1200TII :
48NM range, 4kW open array scanner
MR-1200TIII:
72NM range, 6kW open array scanner
2-feet (60cm) radome scanner
for MR-1200RII
• 12.1-inch Large TFT Display
Slim Depth
(119.2mm)
• AIS Overlay Function
• Simplified ATA
(Automatic Tracking Aid)
• English and Korean Indication
• Improved STC and Sidelobe
for Small Target Detection
4-feet (120cm) open array scanner
for MR-1200TII/TIII
(600×800 dots)
and Light Weight
(4.3kg)
(AIS data required separately)
Function
MARINE RADARS
( 12.1-inch TFT, 4kW Radome Scanner )
( 12.1-inch TFT, 4kW Open Array Scanner )
( 12.1-inch TFT, 6kW Open Array Scanner )
Selectable Green or Red Rader Image
Green
Red
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Icom MR-1200RII
Summary of Contents for Icom MR-1200RII

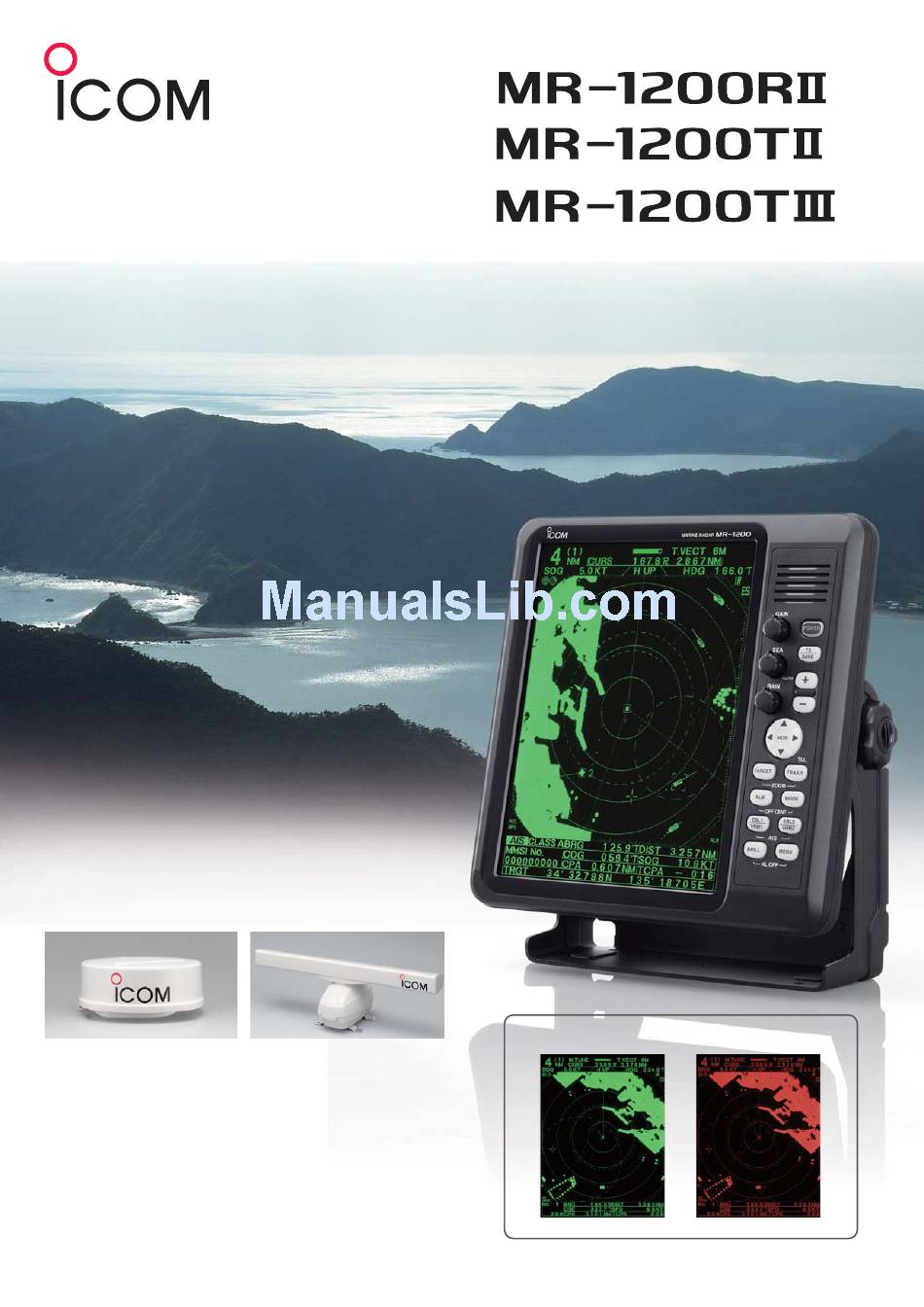

- Page 1 ( 12.1-inch TFT, 4kW Open Array Scanner ) ( 12.1-inch TFT, 6kW Open Array Scanner ) Easy-to-See Large 12.1-inch TFT Display Assists Your Safe Navigation • Three Types of Scanner Units MR-1200RII : 36NM range, 4kW radome scanner MR-1200TII : 48NM range, 4kW open array scanner MR-1200TIII:...
-
Page 2: Specifications
OPC-1077A * AIS data input: IEC 61162-2 38400bps Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia, Japan and/or other countries. Count on us! www.icom.co.jp/world...
