3 Components and Power Supply
APP CODE DUMP...........................................
APP DATA DUMP...........................................
Running application at: 0x00200140
Flash configuration read
Parsing text mode configuration ...
Empty configuration used
Initializing
Press any key to get started
• On reaching this point, put micro-switch '5' in the OFF position (it's not necessary to turn off the device). This way,
the saved configuration will run the next time you restart the device.
• Lastly, close the device.

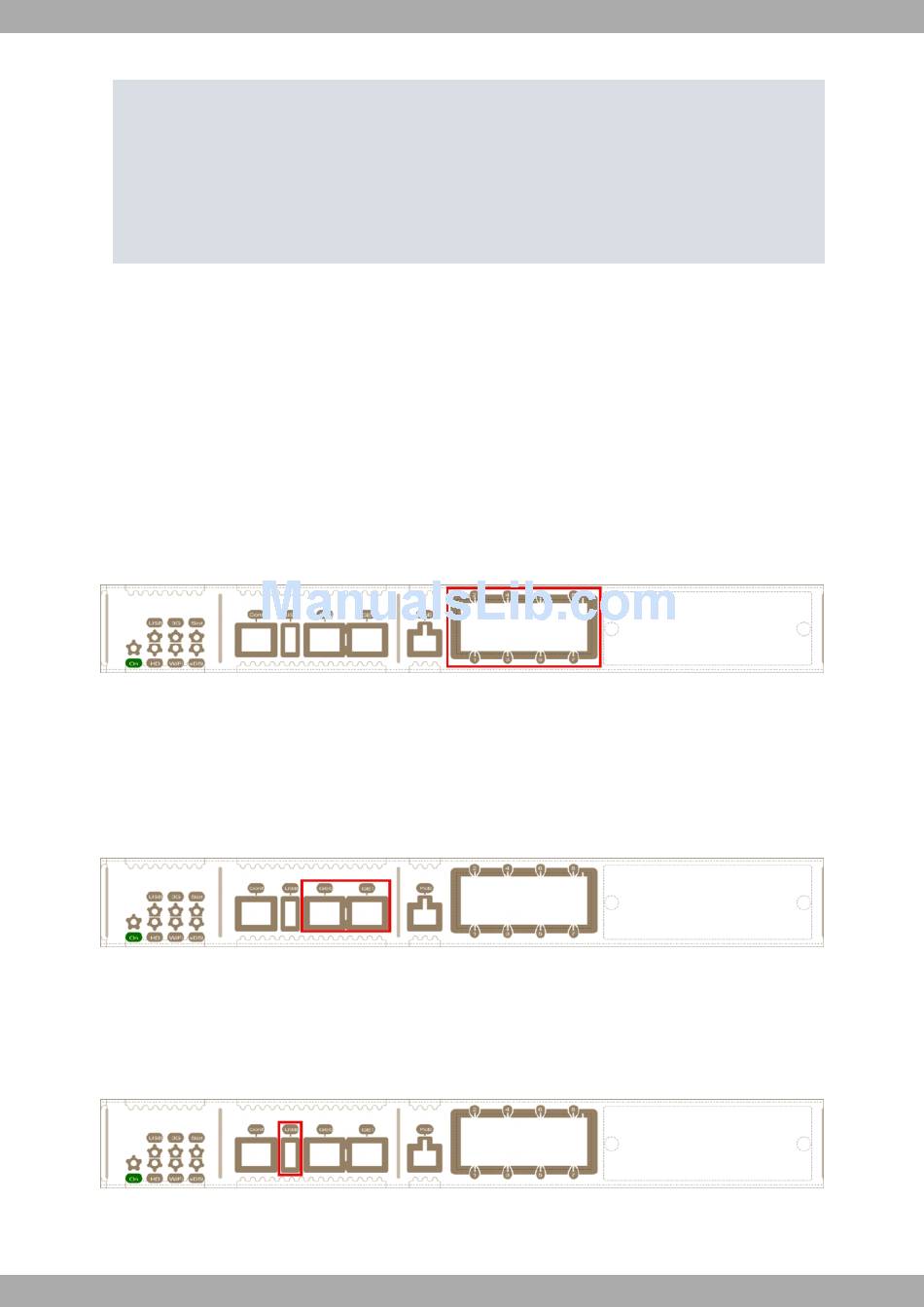

3.6 Data Connection
The ATLAS 60 NW router has the following data connections:
3.6.1 8-port Ethernet Switch
The ATLAS 60 NW router incorporates an 8-port 10/100BaseT Switch with automatic MDI/MDIX to connect to a loc-
al area network (LAN).
Please pay careful attention to the labeling so you do not mix this switch with other types of ports:
LAN Switch ports
Fig. 33:
3.6.2 GE0/GE1Connections
The ATLAS 60 NW router has two interfaces to connect to Ethernet networks. Each interface has a metallic connect-
or (10/100/1000 Base-T). The GE0/GE1ports are independent from the Switch.
Please pay careful attention to the labeling so you do not mix this switch with other types of ports:
Giga Ethernet connectors
Fig. 34:
3.6.3 Connecting a USB 3G device (USB connector)
The ATLAS 60 NW router has a USB HOST 2.0 interface with a type A connector that allows USB 3G modems to be
connected. The interface is activated through the corresponding software license.
USB 3G Connector
Fig. 35:
22
Teldat S.A.
ATLAS 6x/i6x NW Router
