4.8 Software module "PhotoLab"

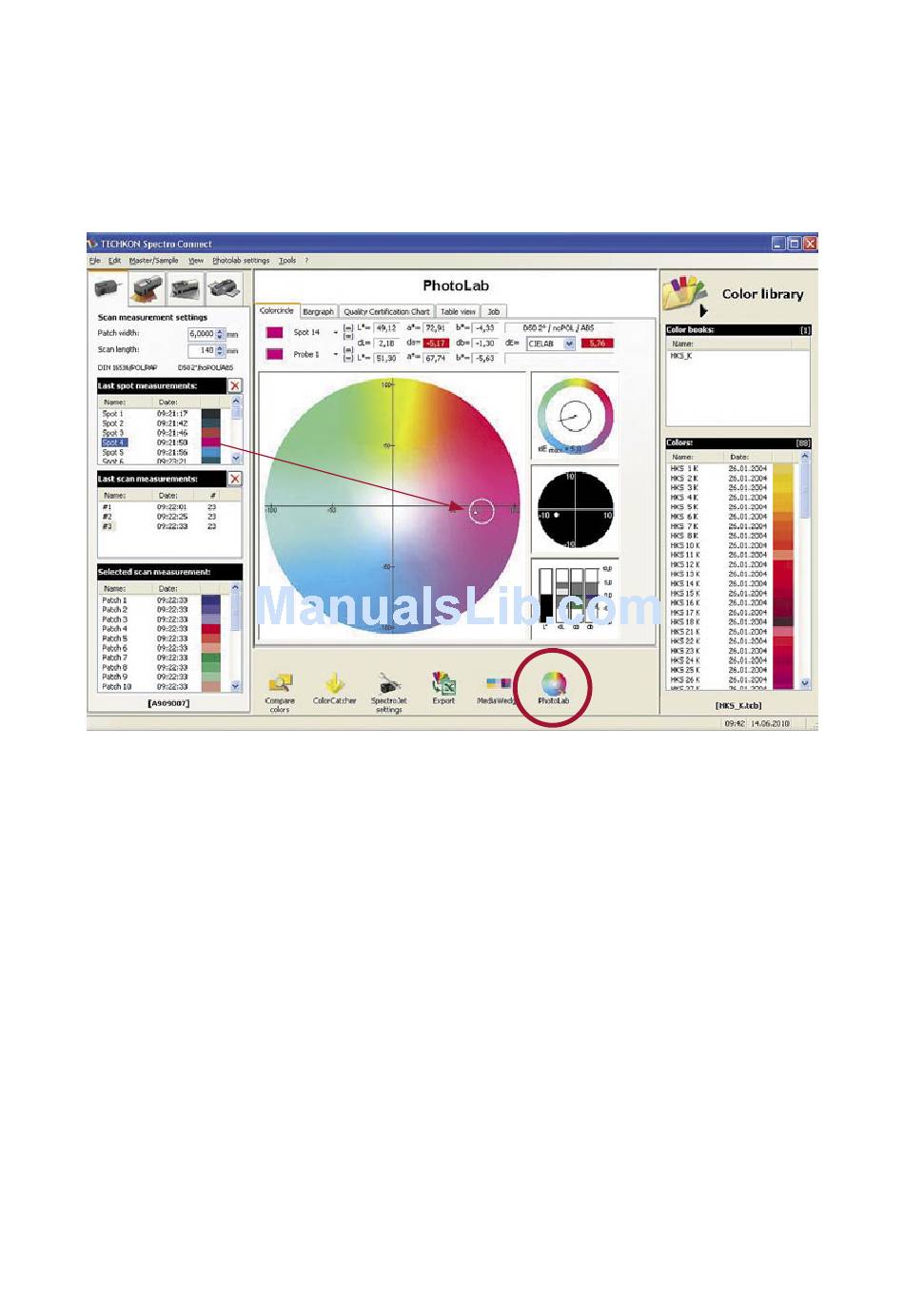

TECHKON PhotoLab is a program module for evaluating and displaying L*a*b*
color data graphically. Selected measurements can be displayed and analyzed.
1. In the upper section of the module win-
dow, the color differences between sample
and reference are shown numerically.
2. Reference: viewfinder with tolerance circle
Sample: bold point
The current selected value is marked in
white.
3. Color samples and references are directly
imported into PhotoLab by making measure-
ments with SpectroJet having it connected to
the PC via the USB-cable
Page 68
1.
2.
3.
Manual TECHKON SpectroJet Chapter 4 – SpectroConnect
4.
Furthermore, color values and complete
color books from the device memory or out
of the PC color library can be selected and
be moved by drag-and-drop with the mouse
pointer directly to the center of the display
where the L*a*b*-color circle is.
A pop-up window will ask, if the values
should be used as sample or as reference
values.
4. A mouse click on the program symbol
will start the plug-in PhotoLab within the
SpectroConnect environment.
