Guiding track SpectroJet Track (Accessory)
Guiding track SpectroJet Track
Adjustment of the tracking wheels
1.
Manual TECHKON SpectroJet Chapter 3 – How to use SpectroJet

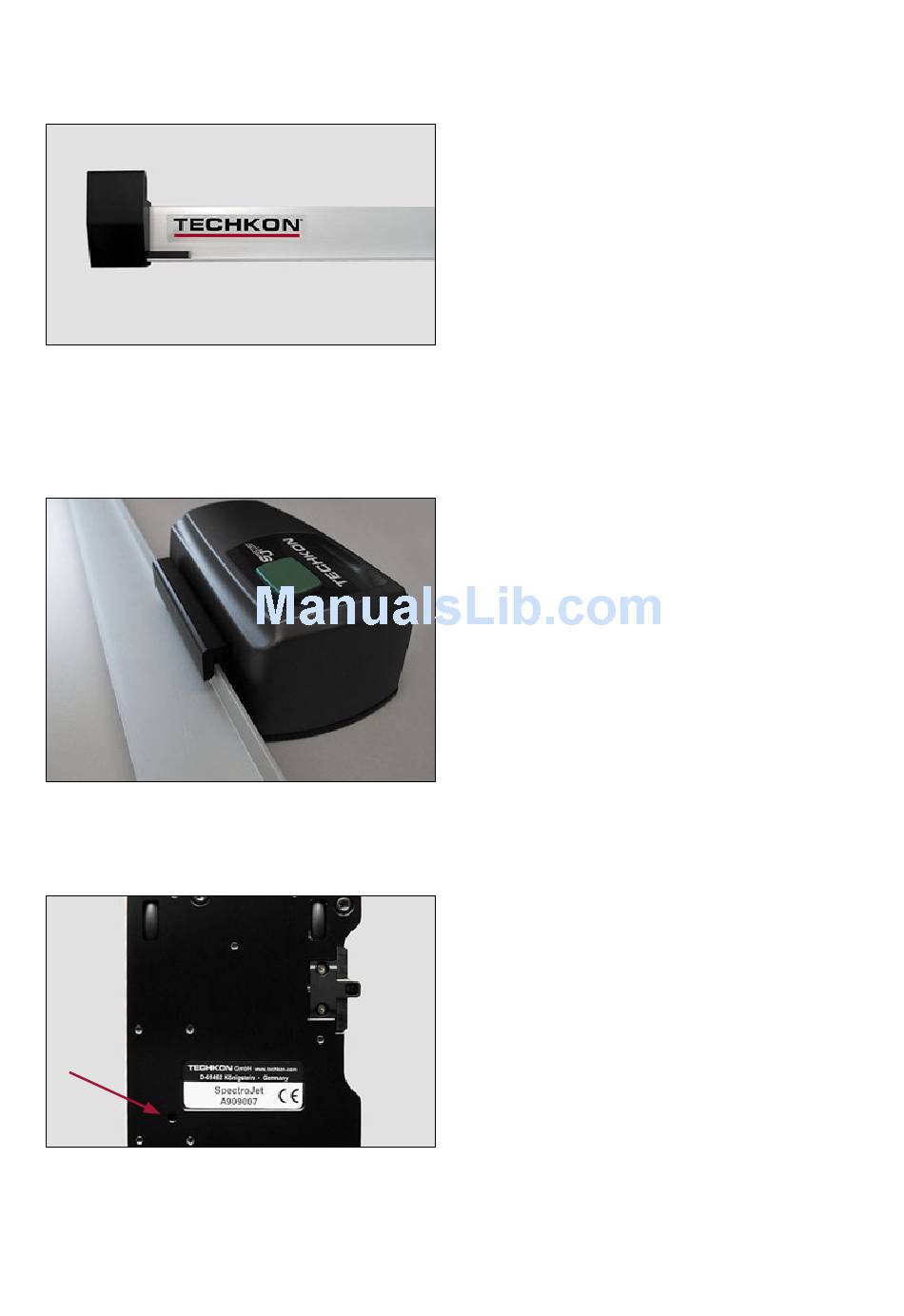

TECHKON offers optionally the guiding track
SpectroJet Track in different lengths, which
matches to the most current printing sheet
formats.
For the installation you need the holder, the
guiding track and the two metal bars.
• First take the included screw driver and at-
tach the holder to the stop rail at the back of
the SpectroJet device.
• Now the two vertical metal bars, having
self-adhesive tape on the backside, are at-
tached to the table or console.The distance
of the metal bars from each other is given by
the length of the guiding track.The vertical
bars should at one side preferably flush with
the lay-on edge of the table.
• Make sure, that the vertical bars are paral-
lel and well aligned in order to hold the left
and right end of the guiding track, which will
attach magnetically to the vertical bars.
• Finally mount SpectroJet with the fixed
holder onto the guiding track.
The resistance of the tracking wheels at the
bottom of the device can be adjusted.
• Insert an Allen key (1,5) into the little
hole (1.) which is located near the device
label with the serial number at the bottom
of SpectroJet.When you turn the screw key
clockwise you will decrease the resistance.
Turning the screw key anticlockwise will re-
sult in a higher resistance.
Thus you can customize the movement char-
acteristics of SpectroJet to your preferred
way of working when using the device in
scanning mode.
Page 13
