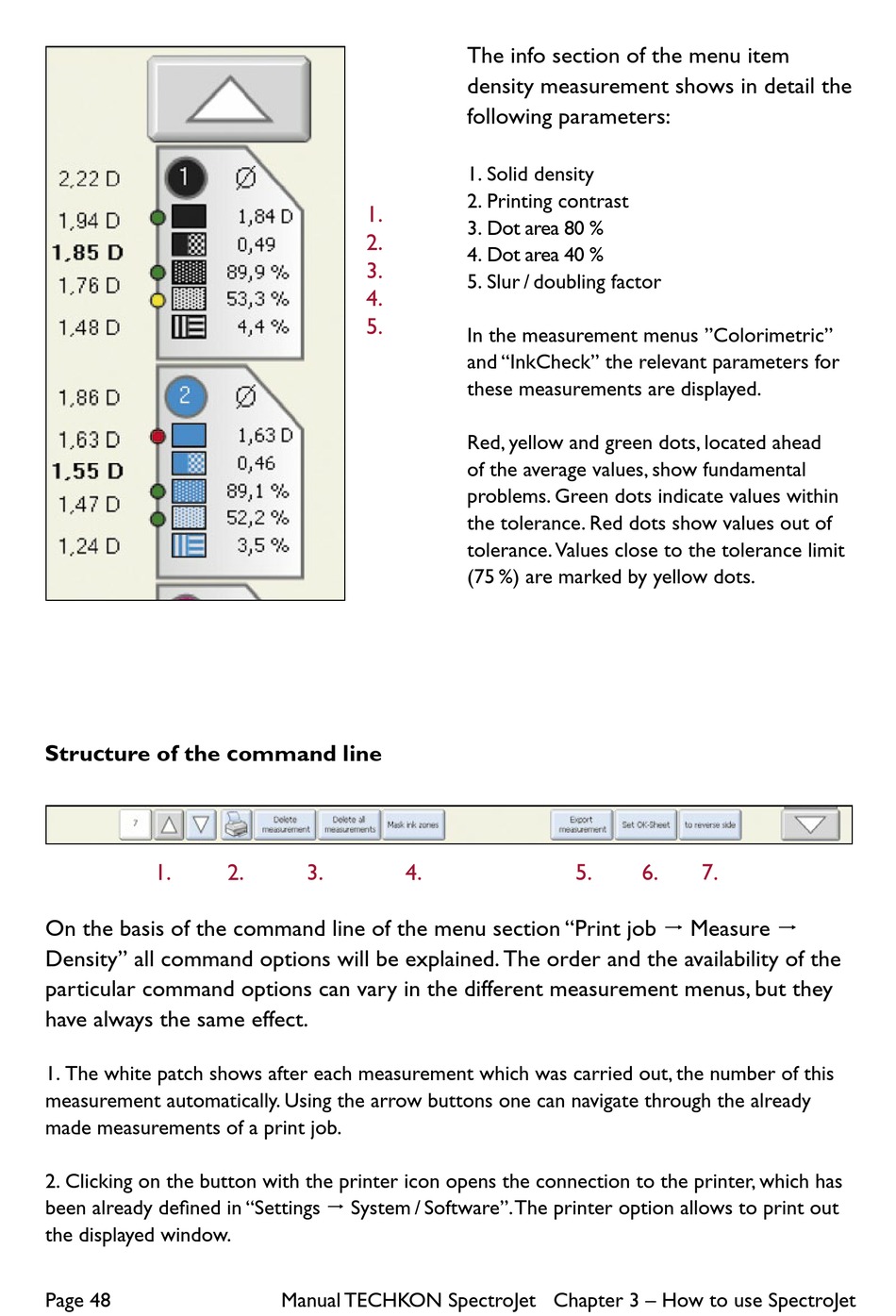

Structure of the command line
1.
On the basis of the command line of the menu section "Print job  Measure 
Density" all command options will be explained. The order and the availability of the
particular command options can vary in the different measurement menus, but they
have always the same effect.
1. The white patch shows after each measurement which was carried out, the number of this
measurement automatically. Using the arrow buttons one can navigate through the already
made measurements of a print job.
2. Clicking on the button with the printer icon opens the connection to the printer, which has
been already defined in "Settings  System / Software".The printer option allows to print out
the displayed window.
Page 48
1.
2.
3.
4.
5.
2. 3.
Manual TECHKON SpectroJet Chapter 3 – How to use SpectroJet
The info section of the menu item
density measurement shows in detail the
following parameters:
1. Solid density
2. Printing contrast
3. Dot area 80 %
4. Dot area 40 %
5. Slur / doubling factor
In the measurement menus "Colorimetric"
and "InkCheck" the relevant parameters for
these measurements are displayed.
Red, yellow and green dots, located ahead
of the average values, show fundamental
problems. Green dots indicate values within
the tolerance. Red dots show values out of
tolerance. Values close to the tolerance limit
(75 %) are marked by yellow dots.
4. 5. 6. 7.
