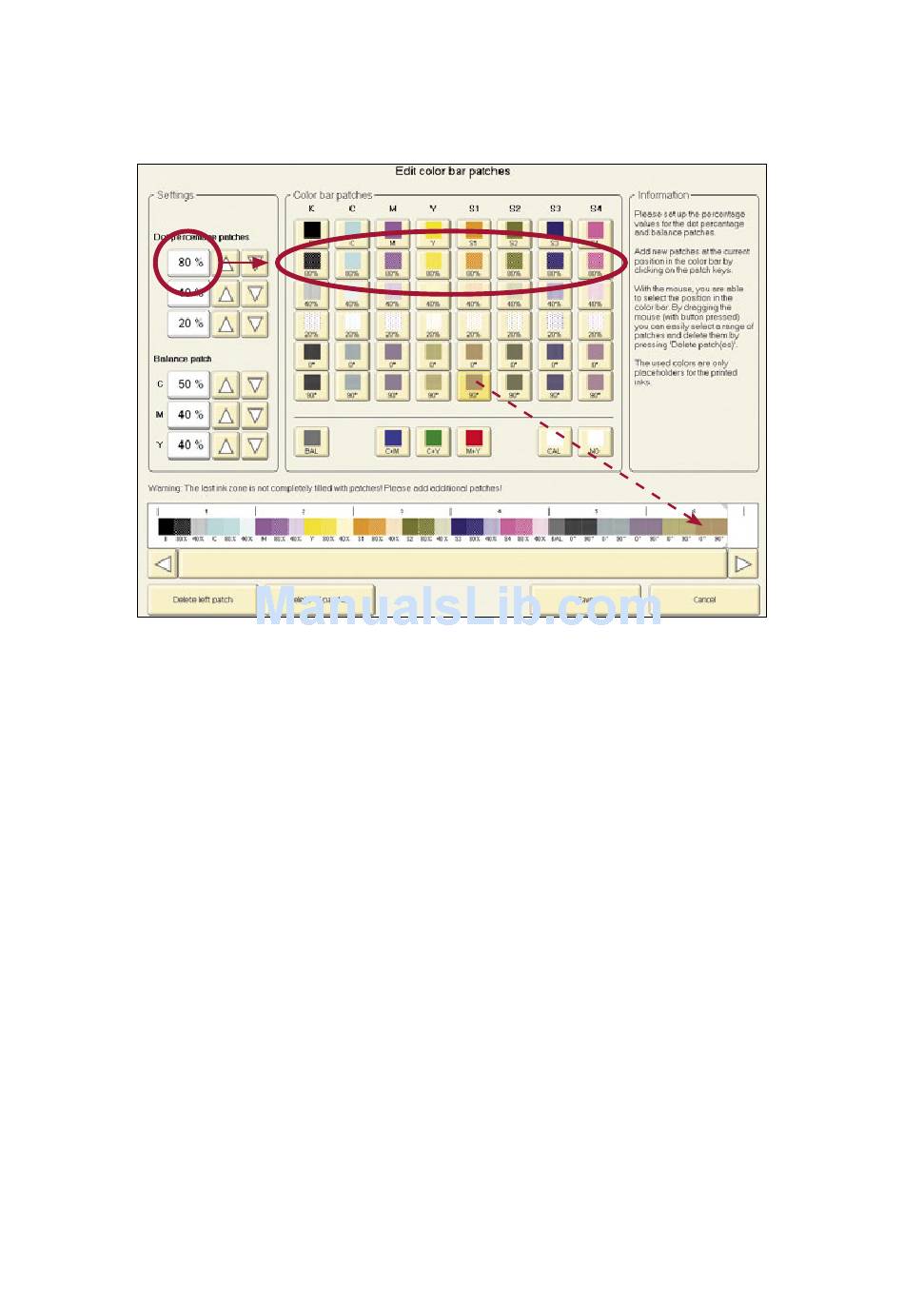

The window "Edit color bar patches" opens, which is divided into the three sections
"Settings" (1.),"Color bar patches" (2.) and "Information" (3.).
1. 2. 3.
4.
5.
6.
• First define three percentage values for the dot percentage patches and three for the bal-
ance patch (4.), which both are listed in "Color bar patches".
• In the section "Color bar patches" now successively compile your individual color bar by
clicking on the color bar patches.The color bar which you are creating is displayed in the lower
part of the window (5.).
• If you edited 8 in "Number of inks" in the previous "New color bar" window, now you have
the four process colors C, M,Y, K as well as 4 spot colors at your disposal. Each of these colors
is given as solid ink, dot percentage value and slur / doubling patches.The bottom line offers a
balance patch (BAL), the trapping patches (C+M, C+Y and M+Y), a calibration patch (CAL) and
an empty patch (NO).
• Accidentally set color bar patches can be marked directly in the color bar (by sliding over
them with the mouse button pressed) and then deleted by clicking on the "Delete selected
patches" button.To add patches later, you can set with a mouse click a marker in the color bar.
To the left of this marker the new patches will be filled in.
• Finally the "Save"-button will save the currently generated color bar (6.) and it will be listed
automatically in the first place of the already existing color bars.
Page 30 Manual TECHKON SpectroJet Chapter 3 – How to use SpectroJet
