Measurement of a print job

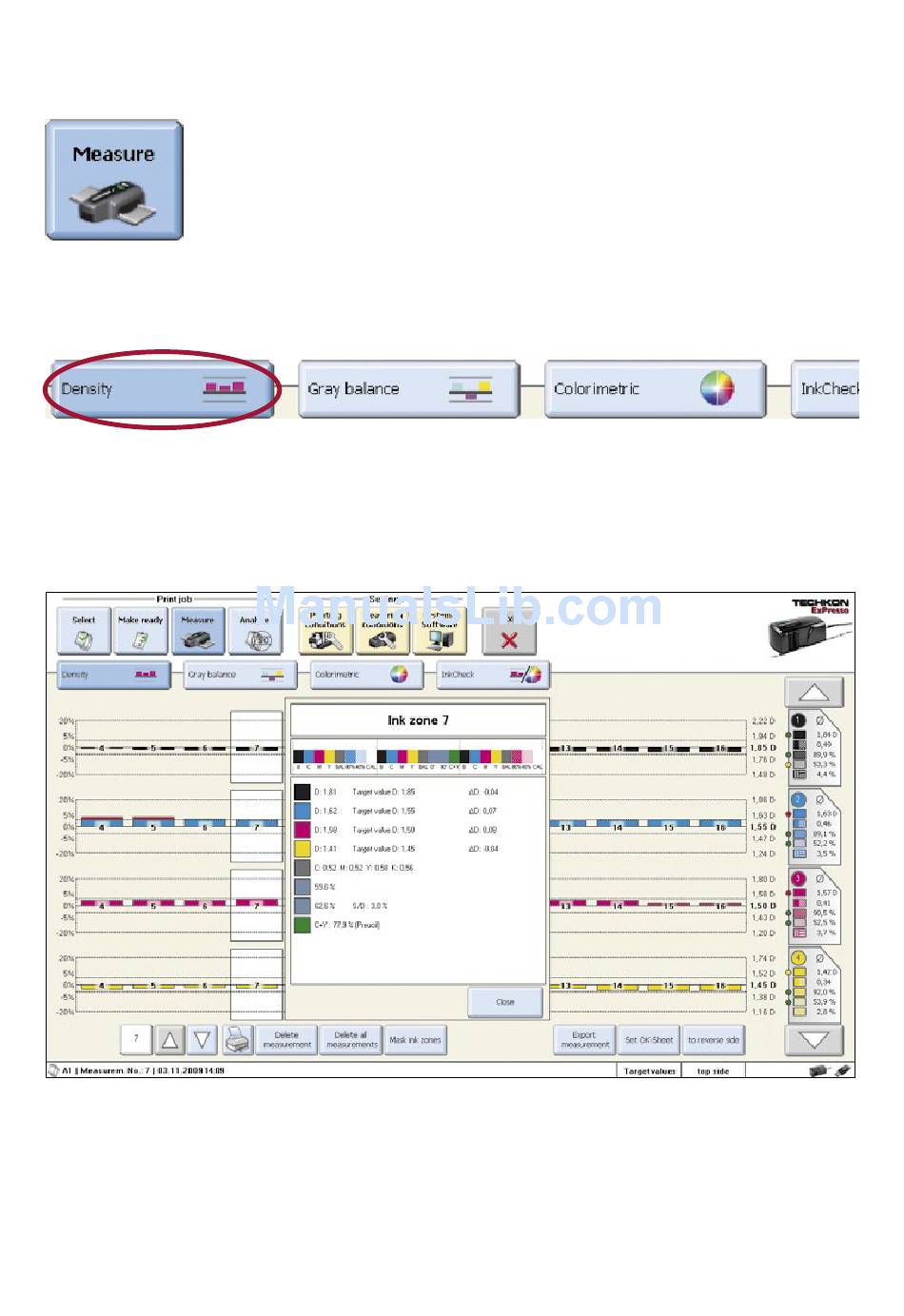

Measure – Density
This screen will display all relevant information after a scan measurement.The scan
measurement can be started by pressing the green measurement button on the
device.
1.
3.
2.
1. Detailed information for every ink zone by pointing on the bar graph.
2. Measurement values out of tolerance will be marked with red top.
3. This section displays in detail the average values of the measurement parameters of the
single printing units.
Manual TECHKON SpectroJet Chapter 3 – How to use SpectroJet Page 47
