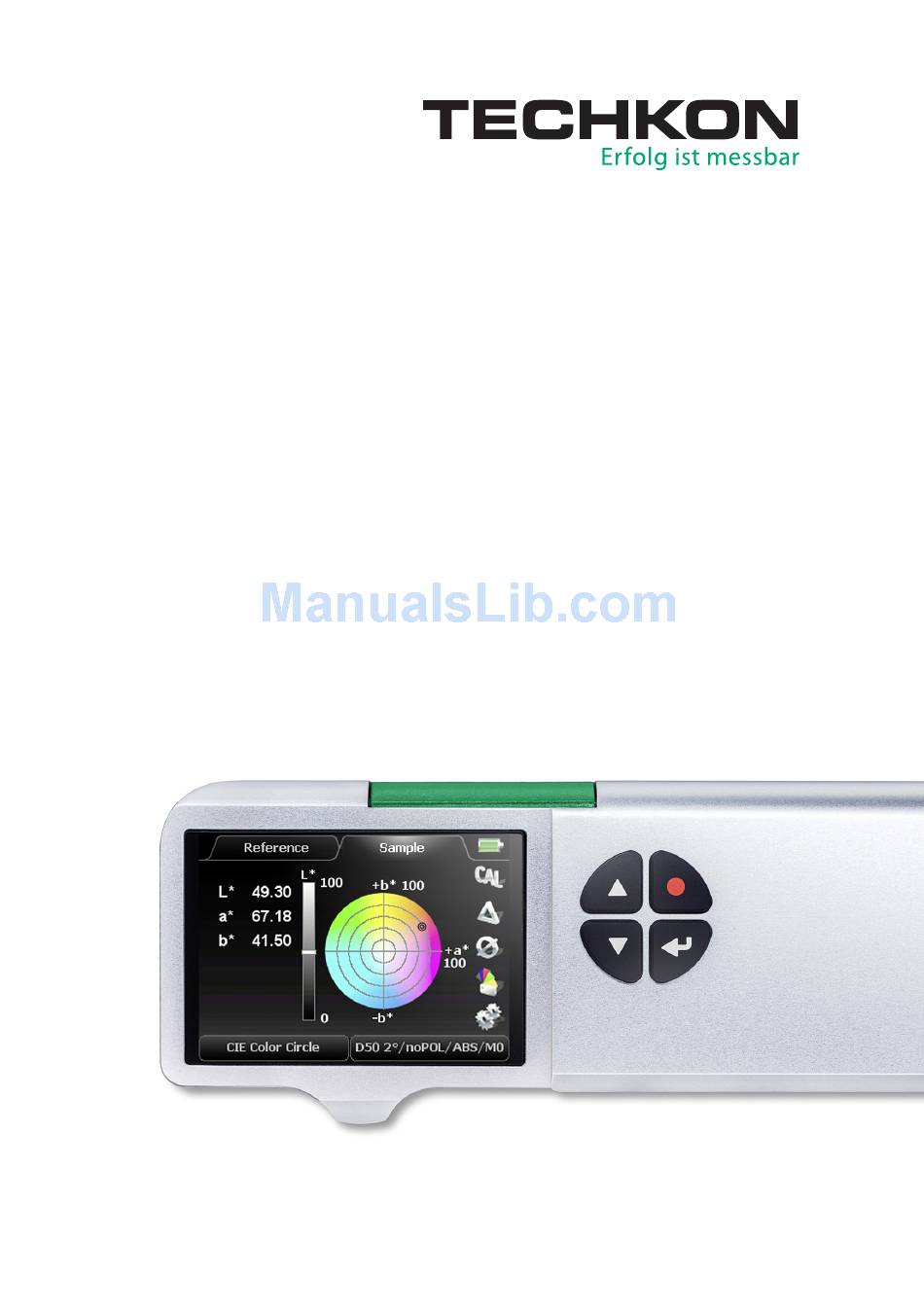

  • Page 1 Spectro-Densitometer SpectroDens Software SpectroConnect Manual...
  • Page 2 Purchase of the software grants the user a license for the use on one computer only. Programs may only be copied for back-up purposes. TECHKON can not be held liable for any damages that may occur by the use of TECHKON products.
  • Page 3 Please get the device registered by using the registration card, which you will find in the appendix of this manual. That way we can keep you updated about product news. Please visit us as well on internet at www.techkon.com. You will find useful information about the complete product range and new software versions.

  • Page 4: Table Of Contents

    Description of the measurement functions Measurement functions of SpectroDens Basic ..............33 2.2 Additional functions of SpectroDens Advanced ............51 2.3 Additional functions of SpectroDens Premium ............. 63 Storage of measurement values ....................77 CHAPTER 3: How to use the Windows software SpectroConnect Software description ........................

  • Page 5: Product Description

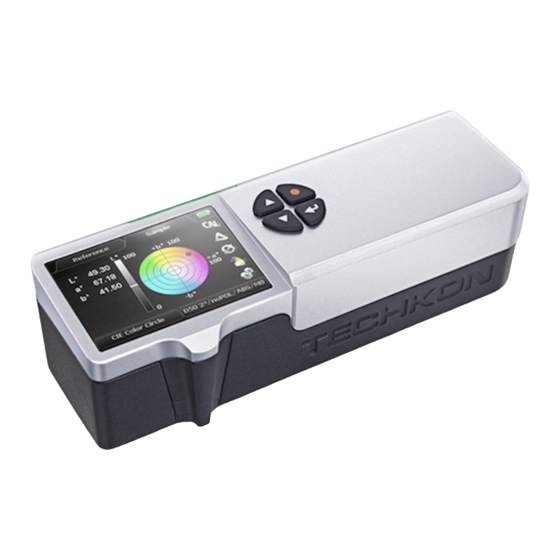

    1.1 Product description With the new SpectroDens generation TECHKON continues the success story of the SpectroDens hand-held devices in the long term. The dictum during product development was: Pursue proven concepts and integrate new meaningful tech- nologies. The result sets a new standard.
  • Page 6 Select different status filters for density measurement in the device settings. A special technical feature is the polarization filter which can be switched on and off by a push of a button and makes SpectroDens par- ticularly good at evaluating the Ugra/Fogra media wedge.
  • Page 7 The fully equipped flagship model SpectroDens Premi- um meets all demands with regard to quality control. All SpectroDens devices can also be used for scans and feature a brilliant color display. Optionally data transmission by means of a WLAN module is possible.

  • Page 8: Packing List

    Optional accessories Exchangeable apertures  Print control strips TECHKON TCS  (the digital print control strips TECHKON TCS can be downloaded free of charge at www.techkon.com) Device upgrades for Basic- or Advanced models to higher functionality  Color reference SpectroCheck ...

  • Page 9: Design Of Spectrodens

    – How to use TECHKON SpectroDens 1.3 Design of SpectroDens SpectroDens is a solidly designed measurement device which is very functional and easy to use. It is compact in size; the buttons can be reached with the right index finger when the device is held with the right hand.
  • Page 10 Connect the mains plug to the power socket. The socket must be located near the facility and must be easily accessible. Do not use the power plug if the power cord is damaged. Always use the original TECHKON SpectroDens AC adapter. The use of other power sources is hazardous. Europe...

  • Page 11: Working With Spectrodens

    1.4 Working with SpectroDens Switching on and off SpectroDens is switched on by pressing the green measurement button. It is immedi- ately ready to measure. In this state power consumption is very low. If no button is pressed within one minute, the device will switch off automatically.
  • Page 12 Manual TECHKON SpectroDens How to measure After switching on SpectroDens, it is instantly ready to measure. Just position the mea- surement aperture on top of the measurement sample and press shortly with the in- dex finger the green measurement button. Within one second the resulting measure- ment value will appear on the display of the device.
  • Page 13 Some menu items or “soft keys” might be shaded in appearance and can not be selected, because they are only active in a higher perfor- mance package (Advanced or Premium) of SpectroDens. Pressing the red, round escape button will always bring you one step back in the menu or will close a menu window.
  • Page 14 Within this window you can navigate with the arrow buttons and select with the enter button. The red escape button brings you back to the measurement mode. 1. The SpectroDens INFO screen informs 2. Sound will activate an acoustic signal after about the type of device (Basic, Advanced each measurement.
  • Page 15 5. SpectroDens can be connected to a WLAN PC if necessary, by using the Windows soft- ware SpectroConnect. network to send information via wireless data transmission to the PC.
  • Page 16 Manual TECHKON SpectroDens Menu: Measurement functions When the “soft key” in the left section of the lower bar is activated, a window opens where you can select the measurement functions. The measurement functions listed below are described in detail in chapter 2.
  • Page 17 CHAPTER 1 – How to use TECHKON SpectroDens Menu: Measurement conditions When the “soft key” in the right section of the lower bar is activated, a window opens where you can set the measurement conditions which define the parameters of the measurement, e.
  • Page 18 Manual TECHKON SpectroDens Menu: Calibration Prior to every series of measurements a calibration should be carried out. After a cali- bration the device is long term stable, however it is recommended to perform a cali- bration before starting a new measurement task just to be sure the device is working properly.

  • Page 19: Care And Maintenance

    – How to use TECHKON SpectroDens 1.5 Care and maintenance SpectroDens is a highly-precise optical instrument. It is designed to work in harsh, industrial environments. However, it should be handled with care. Avoid mechanical shocks, heat, dusty or humid environments! Keep it always at a safe place, for example in the carrying case.
  • Page 20 (SLOPE) and the Absolute white reference values influence the measure- ment result. Setting of the Density adjustment (SLOPE) With the SLOPE correction values it is possible to adjust SpectroDens to the density values of other devices. Activate the “soft key” with the cogwheel icon and select the menu item Density adjust- ment (SLOPE).
  • Page 21 CHAPTER 1 – How to use TECHKON SpectroDens Select the menu item Make SLOPE calibra- tion. Carry out a paper white calibration as de- scribed in the device display. Now measure consecutively the solid patches of Cyan, Magenta, Yellow and Black.
  • Page 22 Manual TECHKON SpectroDens Setup of the SpectroDens WLAN connection To be able to use the WLAN function in SpectroDens, a WLAN module has to be installed. The module is available as accessory from TECHKON. It is a small electronic board which can be inserted into the instrument easily.
  • Page 23 CHAPTER 1 – How to use TECHKON SpectroDens The slot into which the WLAN module has to be inserted is located on the main board. Due to its reverse battery protection the board cannot be inserted in a wrong way.
  • Page 24 Notice: To save power, it is recommended to turn off WLAN if not required. After a successful connection with the soft- ware SpectroConnect, the WLAN information can be checked in the SpectroDens INFO window.
  • Page 25 – How to use TECHKON SpectroDens Setup of the WLAN connection Start the software SpectroConnect, select SpectroDens settings, turn on the instrument and connect it with the USB cable to the PC. The symbol to the right of the serial number indicates the type of connection; in this example it is an USB connection.
  • Page 26 Manual TECHKON SpectroDens The WLAN wizard will guide you trough the setup process. Make sure you have all information about your WLAN network available. Two types of WLAN connections are possible: Infrastructure and Ad-Hoc. Infrastructure should be selected if a WLAN network is already installed in the working area.
  • Page 27 CHAPTER 1 – How to use TECHKON SpectroDens The wizard will show all WLAN networks which are available. Select your network and click on the Next button. Should your network not be listed you can try again by clicking on Search again using SpectroDens.
  • Page 28 Manual TECHKON SpectroDens SpectroDens is now looking for the WLAN network and if available will establish a connection. The gray color of the symbol is indicating the search function. Once the WLAN network is found and the connection is established, the color of the symbol will change to blue.
  • Page 29 – How to use TECHKON SpectroDens The settings will be applied and shown in the WLAN settings. By activating the function Automatically search for WLAN SpectroDens the connection will be established automatically when used next time. Now you can disconnect the USB cable.
  • Page 30 Manual TECHKON SpectroDens Ad-Hoc connection To establish an Ad-Hoc network select this function during the wizard setup. The IP-Address, the netmask and the name (SSID) of the network are predefined in this case and will be shown for your information.
  • Page 31 CHAPTER 1 – How to use TECHKON SpectroDens Use the software of your WLAN network card or WLAN USB stick to setup the WLAN connection to your device Select the WLAN network named after the serial number of your device.
  • Page 32 Inspection intervals TECHKON SpectroDens is maintenance free. We recommend to validate the com- plete functionality of the devices in a 24 months time interval in the TECHKON ser- vice center. Please send the device always securely in the carrying case with complete accessories.

  • Page 33: Measurement Functions Of Spectrodens Basic

    2.1 Measurement functions of SpectroDens Basic Automatic Density SpectroDens Basic comprises all functions related to density measurement. A very practical feature is the Automatic Density mode. By a push of the green measure- ment button the relevant measurement values are displayed. Depending on the type...
  • Page 34 Manual TECHKON SpectroDens For the display of dot area (or dot percent- age) in %, two measurements have to be made: First the solid density patch and then the %-patch, which is in this example a 80 %- patch. The resulting dot percentage is in this case 91.9 %;...
  • Page 35 CHAPTER 2 – Measurement functions In DELTA Mode (= comparison mode) the measured values are compared to reference values. The mode is activated by navigating to the “soft key” with the triangle symbol and selecting it. In the example on the left side a Yellow patch was measured.
  • Page 36 Manual TECHKON SpectroDens Densities CMYK In the measurement function Densities CMYK all four partial densities for Cyan, Ma- genta, Yellow and Black are displayed. In this example, a solid Magenta patch was measured. The solid density is: M = 1.47 But why are densities for the other colors shown as well ? Shouldn’t they have a value of...
  • Page 37 CHAPTER 2 – Measurement functions Dot Area For the function Dot Area (= dot percentage) two measurements have to be carried out. First a measurement on a solid patch and then a measurement on a %-patch (= screen patch). The dot area value is calculated with the Murray-Davies formula. 1.
  • Page 38 80% 40% BAL 2. 3. The setting for the %-patches to be measured is done in Dot Gain Setup. Up to three percentage values can be edited. The TECHKON TCS print control strips include two different %-patches; 80 % and 40 %.
  • Page 39 SCTV The Spot Colour Tone Value (SCTV) function, which is defined in ISO 20654:2017, pro- vides a precise colorimetric quality inspection for spot colors. SpectroDens supports SCTV for single tone value measurements and the SCTV printing curve (see page 42).
  • Page 40 Typical values for standardized print with Paper Class 1 (glossy, coated) are: C+M > 60 %, M+Y > 72 % and C+Y > 85 %. SpectroDens offers extended trapping calculation according to Professor Ritz and Fe- lix Brunner, which ensure a better comparison between C+M, M+Y and C+Y measure- ments.
  • Page 41 3. Increments of the wedge to be measured, e. g. in 5 % steps In the first step a 100 %-(solid) patch is mea- sured. SpectroDens recognizes automatically the color and displays the solid density. In this case D = 1.50 for Cyan.
  • Page 42 Manual TECHKON SpectroDens Now the corresponding current dot area is indicated in the lower right section of the dis- play. In this case: + 7.3 % dot gain is displayed at 90 % dot percentage. The shaded area close to the curve shows the tolerance range.
  • Page 43 Beside energy and focus of the laser, dot gain is the most important information which has to be checked in plate exposure. Special plate measuring instruments working with video analysis have been developed for this application; for example TECHKON SpectroPlate. Compared to densitometers and colorimeters they offer big advantages.
  • Page 44 2. Now measure a dark, 100 %-imaged patch. SpectroDens will select one of the four CMYK channels where the contrast signal is highest depending on the color shade of the plate. In this case the Cyan channel gave the highest signal, because the plate is blue/violet.
  • Page 45 To make the slur and doubling measurement possible, it is necessary to have on the color bar vertical and horizontal lined patches with identical line thickness as it is the case with the print control strip TECHKON TCS. Three measurements have to be carried out: 1.
  • Page 46 Manual TECHKON SpectroDens 3. The third measurement on a vertical lined patch. After the measurement of the vertical lines again the dot area of the patch is calcu- lated and stored (see the following figure). Y BAL As a result the so-called slur/doubling factor in % is displayed.
  • Page 47 Cyan, Magenta, Yellow and Black. Thanks to the spectral measurement of SpectroDens, a virtual spectral density characteristic for any spot color can be ob- tained. The great advantage is that the process control of spot colors can now be as easily achieved as known from the four process colors.
  • Page 48 Advanced functions for the fast and comprehensive control of the printing quality during the printing process features the software TECHKON ExPresso 4.0 in connec- tion with the automatic measurement system TECHKON SpectroDrive.
  • Page 49 CHAPTER 2 – Measurement functions In ExPresso Mini the Delta Mode can be ac- tivated. Taken measurements will then be compared to reference densities, pre-set in the Density Reference Setup. The reference data and the result will be dis- played. The reference line is always the refer- ence value and the corresponding tolerance.
  • Page 50 The following measurement conditions are selectable in the measurement parameter menu of the SpectroDens color measurement device. Measurement condition M0 is used when the printing substrate contains no or only little optical brighteners.

  • Page 51: Additional Functions Of Spectrodens Advanced

    CIE L*a*b* The previously described measurement functions all were based on densitometry. Thanks to the spectral performance of SpectroDens it is possible to calculate and dis- play colorimetric values as well. Measurements in colorimetry modes have the advan- tage of an absolute description of color based on characteristic values.
  • Page 52 In colorimetry the white reference is absolute in contrary to densitometry where the white is usually referenced to paper white. Before making colorimetric measurements, an absolute white calibration has to be carried out by placing SpectroDens on the charging console and calibrating on the round, white ceramic standard.
  • Page 53 CHAPTER 2 – Measurement functions CIE Color Circle The function CIE Color Circle shows the L*a*b*-color values as well. Optionally L*C*h*- values can be displayed. Additionally there is a graphic display and a color is shown as a spot within the color circle. Select the CIE Color Circle Setup function out of the list of measurement conditions.
  • Page 54 Manual TECHKON SpectroDens G7™ The measurement function G7™ supports the calibration of presses and proofs ac- cording to the method developed by the IDEAlliance (International Digital Enterprise Alliance). The G7™ mode can be selected out of the list of measurement functions.
  • Page 55 CHAPTER 2 – Measurement functions In order to take correct measurements an ab- solute white calibration must be performed and will be confirmed in the display when done. A measurement of the paper white is neces- sary for correct calculations. Now the instrument is ready to measure.
  • Page 56 Manual TECHKON SpectroDens The ∆E*-value is calculated as long as the dif- ference is in a reasonable range. If the difference exceeds a limit, then only the measured density value is displayed without comparison. This procedure works for all CMYK colors.
  • Page 57 CHAPTER 2 – Measurement functions If a gray balance patch is measured all four densities are displayed in a bar chart. If the value is close to the SC_cmy “neutral density” target it will be displayed with rec- ommended adjustments. SC stands for “Shadow Contrast”.
  • Page 58 Manual TECHKON SpectroDens 1. Detected color 2. Measured density 3. ∆E*-difference compared to ISO reference 4. Indication in/out tolerance 5. Paper type 1. Detected color 2. Direction of adjustment 3. Recommended adjustment 4. Detected patch type 5. Measured value 6. Paper type 1.
  • Page 59 It is called SCCA (Substrate Corrected Colori- metric Aims). Techkon became aware of this new specifica- tion and implemented the ability to measure the paper and based on those measurements and using the SCCA formula calculates new aim points right on the instrument.
  • Page 60 Manual TECHKON SpectroDens InkCheck The measurement function InkCheck combines in a very easy way the advantages of colorimetry with the familiar densitometry. Thanks to this helpful function, working with the process standard ISO 12647 is simply achieved. The colorimetric deviations are reported and additionally recommendations for amounts of ink supplied in terms of density values are given.
  • Page 61 CHAPTER 2 – Measurement functions Now the device is ready for measurements on solid color patches. In this case a yellow patch was measured. Density trend: It is recommended to increase the density by 0.11. Color deviation: The color distance to the ref- erence is 4.8 ∆E*.
  • Page 62 Manual TECHKON SpectroDens CIE XYZ The CIE XYZ will display standard color values. XYZ standard color values are (beside L*a*b*- values) a different way of describing the color values. They are not as practical to use and therefore not as widely used in the printing industry.

  • Page 63: Additional Functions Of Spectrodens Premium

    You can select the control strip and the pa- per type. If you choose the TECHKON print control strip you can select two dot values additionally. ISO 12647-2 defines the following standards: ...
  • Page 64 Manual TECHKON SpectroDens When the solid density is measured, the com- pliance with the tolerances is checked. In this example the measurement has been taken on a black solid patch. At the same time the recommendation how to adjust the density is calculated.
  • Page 65 CHAPTER 2 – Measurement functions After the measurement of the solid patch, you can measure the %-patch, which you have defined in the setup. The dot gain is checked in regard to its con- formity to the ISO-standards. Concerning the midtone the spread will be displayed additionally (CMY).
  • Page 66 10 in the secondary colors, which corresponds with the sum of the permitted ∆E*-deviations of the primary colors. Instead of scanning the TECHKON strip the measurement function ISO-Check can also capture the ECI/bvdm Gray Control Strip ver- sion tvi 10 (i1) and (M i1).
  • Page 67 SCCA function on page 59. CIE L*u*v*, CIE L*C*h* uv, CIE xyY and DIN Lab99 The Premium-version of SpectroDens enables the display of additional color spaces, which might be used mainly in industries outside printing: CIE L*u*v*, CIE L*C*h* uv, CIE xyY and DIN Lab99.
  • Page 68 Manual TECHKON SpectroDens Metamerism-Index Metamerism is the visual phenomenon that two colors match under certain light con- ditions and differ under different light conditions. Colorimetry offers the possibility to detect this effect by measuring the color distance between the two color samples under two exactly defined light sources. The result of this operation is the Metamerism-Index.
  • Page 69 Whiteness / Yellowness Whiteness- and Yellowness-indices are quality parameters important for the paper industry. SpectroDens Premium will display the whiteness and yellowness indices ac- cording to the following standards: Whiteness: E 313, Berger, Stensby, TP 425 – Yellow- ness: E 313, D 1925.
  • Page 70 Manual TECHKON SpectroDens Brightness T (TAPPI 452) Like whiteness, paper brightness is also a measurement of the amount of light reflected from paper. Unlike whiteness, it is focused on a narrow wavelength of blue light as opposed to all wavelengths in the spectrum. The higher the number on the brightness scale, the more light a particular sheet reflects.
  • Page 71 Just keep the green start-button pressed during the whole scanning procedure. SpectroDens recognizes the version 2 as well as the version 3 of the media wedge by the different number of reference values. The Windows software SpectroConnect allows to analyze the measured data in detail and to print a report (see p.
  • Page 72 Manual TECHKON SpectroDens Scan The measurement function Scan provides the scanning of individual control elements. The scanning procedure is very easy. Choose the measurement function SCAN in the device menu. Then place the measurement device on the print control strip. Take care that the measurement aperture is positioned on the first measurement patch (= start position) and that the device edge is aligned to the print control strip (see picture).
  • Page 73 The SpectroDens enhanced scanning feature includes: Define the color bar by uploading a color  library to the SpectroDens or by scanning a color bar with the instrument. Advanced pattern recognition algorithm’s  that automatically detect that the color bar...
  • Page 74 Manual TECHKON SpectroDens Opacity Opacity refers to the transparency or opaqueness of paper. Papers with lower opac- ity tend to let text and images show through more than papers with higher opacity. Opacity is expressed as a percentage in paper. For example, paper with 98 % opacity means that 98 % of light is not allowed to pass through the paper.
  • Page 75 First you have to switch to the „soft-key“ CAL to carry out a calibration on the absolute white standard. SpectroDens performs the OBA-Check ap- plying the measurement conditions M1 and M2, i. e. with and without stimulation through UV light (see p. 50). The difference between the two CIEb*-values leads to the final mea- surement result.
  • Page 76 Manual TECHKON SpectroDens Average values From a series of single measurements Average values can be calculated and dis- played. This function may be used when the surface of the sample has no even distri- bution of color. By selecting the “soft key” with the average...

  • Page 77: Storage Of Measurement Values

    CHAPTER 2 – Measurement functions 2.4 Storage of measurement values The versions SpectroDens Advanced and Premium include a Color library. This is a digital memory for storing color values, which can be compared or exchanged with the Windows software SpectroConnect.
  • Page 78 Manual TECHKON SpectroDens 3. By activating Save automatically all future reference measurements will be stored auto- matically. 4. By activating Search automatically Refer- ence Mem the closest matching reference color when making a sample measurement will be displayed. This feature is active in the sample mode with DELTA Mode on.
  • Page 79 SpectroConnect. New color books can easily be edited and transferred into the device. Up to 20 color books can be stored in SpectroDens; there is no limitation of storing color books in the Windows software SpectroConnect.

  • Page 80: Software Description

    Color information is displayed, colors can be compared and data can be exported into other software applications, e. g. Microsoft Excel™. When using SpectroDens Basic the device has to be connected via the USB cable to the PC when working with SpectroConnect. When performing a measurement with the device, the value will be displayed immediately on the computer screen.

  • Page 81: Overview / Software Module: Compare Colors

    Advanced and Premium available. 3. The window References shows stored ref- 7. This bar shows the list of available program erences. Only in SpectroDens Advanced and modules. They can be selected from this bar Premium available. directly via mouse click and the application will appear in the middle of the display.

  • Page 82: Software Module: Spectrodens Settings

    New device software can be uploaded into the device. There are two different types of files to upload: Device update: loads the new version of device software  Device upgrade: upgrades to SpectroDens Advanced or  Premium (must be purchased) 4. Device screenshot: This shows the device display on the computer screen.

  • Page 83: Device Update And Device Upgrade

    – Software SpectroConnect 3.5 Device update and device upgrade By the application of this module SpectroDens can be loaded with a new internal firmware which is selected by Device update or SpectroDens can be expanded in functionality by Device upgrade.

  • Page 84: Software Module: Export

    Excel™, Word™ or other programs which can handle color data, e.g. a RIP calibration software. SpectroDens works like the keyboard: Pressing the measurement button will place the measurement value automatically at the location where the cursor is. 1. Here is defined, which data will be trans- 2.

  • Page 85: Software Module: Colorcatcher

    – Software SpectroConnect 3.7 Software module: ColorCatcher The program module ColorCatcher is available in the models SpectroDens Advanced and Premium. Based on a L*a*b*-measurement and referring to selected ICC profiles this program module displays the conversion into the color models L*C*h*, RGB and CMYK.

  • Page 86: Software Module: Photolab

    TECHKON PhotoLab is an optionally available program module for evaluating and displaying L*a*b* color data graphically. Color differences between sample and refer- ence colors can be analyzed. PhotoLab is only available in the SpectroDens Premium version. 1. In the upper section of the module win-...
  • Page 87 CHAPTER 3 – Software SpectroConnect 1. Samples and references can be selected di- 2. Different modes of the L*a*b*-display can rectly with a mouse click or by choosing from be selected: the “pull-down” menu. The modes Bargraph and Quality Certifi- ...
  • Page 88 Manual TECHKON SpectroDens PhotoLab settings When you open the pop-up window PhotoLab settings in the menu bar of the pro- gram module PhotoLab, you can select and edit three areas. 1. General settings: This is the window for setting the dimensions of the L*a*b* color circle and the ∆L*a*b* color...

  • Page 89: Software Module: Mediawedge

    Color differences between the Fogra target values and the measured samples will be clearly represented in this program module. The software module Media Wedge is only available in the SpectroDens Premium version. 1. Manual selection of the media wedge ver- gets connected later, the measured data will sion.
  • Page 90 Manual TECHKON SpectroDens Media Wedge evaluation: Label and details After the import of the media wedge a short protocol will be generated and can be printed on a self-adhesive label with a Dymo label printer. The software supports the Ugra / Fogra Media Wedge in version 3.0 as well.

  • Page 91: Software Module: Transfer Curve

    CHAPTER 3 – Software SpectroConnect 3.10 Software module: Transfer curve Using the software module Transfer curve you can fast and easily determine transfer characteristics on prints and check the compliance of the dot gain according to ISO 12647 targets or individual standards. The software calculates at the same time com- pensation values for the adjustment during plate exposure.
  • Page 92 Manual TECHKON SpectroDens In the section Target values the target values can be edited. Furthermore settings for the assignments of the targets can be defined.

  • Page 93: Software Module: Iso-Report

    CHAPTER 3 – Software SpectroConnect 3.11 Software module: ISO-Report The software module ISO-Report allows a fast and comprehensive documentation according to the ISO standard. The ISO-Report can be printed out. ISO-Report is only available in the SpectroDens Premium version.

  • Page 94: Software Module: Spectrochart

    ECI 2002, IT8.7/3, Fogra27L, Fogra39L and others. Related target templates in .ttg-format are deposited in the folder User  Public  Public Documents  TECHKON GmbH  TECHKON SpectroConnect. The measurement results are saved in ISO-format. This way they can be imported into common ICC profile generator software.

  • Page 95: Software Module: Spectrocheck

    SpectroCheck will now lead you step by step through the checking procedure of the measurement device. The information, whether the device corre- sponds to the technical specifications, can also be printed out. Note: The checking of the TECHKON SpectroDens has to be made with 3.0 mm stan- dard aperture.

  • Page 96: Specifications

    Accessories, spare parts and contents of delivery: see page 8 Specifications can be subject to change without notice. Specifications valid for standard device with 3 mm aperture. All mentioned trademarks and copyrights are recognized. SpectroPlate, SpectroDens, SpectroJet, SpectroDrive, DENS, SpectroCheck, InkCheck and TECHKON are registered trademarks of TECHKON GmbH.
  • Page 97 It can be cleaned with clean, compressed air and an optics brush. We recommend a functionality check-up every 24 months at the TECHKON service center, which includes the issue of a new Manu- facturer certificate.
  • Page 98 Warranty: The warranty for TECHKON products is 24 months starting with the date of purchase. The warranty is invalid if the damage is caused by improper use of the device. Only original TECHKON spare parts and accessories are to be used.
  • Page 99 EU-Konformitätserklärung EC-Declaration of Conformity Déclaration de Conformité de la CE Dichiarazione di conformità CE Hersteller: TECHKON GmbH Manufacturer / constructeur / costruttore Adresse: Wiesbadener Str. 27 Address / adresse / indirizzo erklärt, dass die Produkte: D-61462 Königstein Declares that the products / déclare, que le produits / si dichiara che il prodotto...
  • Page 101 Erfolg ist messbar TECHKON GmbH Wiesbadener Str. 27 ∙ D-61462 Königstein T +49 (0) 6174 / 92 44 50 ∙ F +49 (0) 6174 / 92 44 99 info@techkon.com ∙ www.techkon.com...
