Techkon Spectro Jet Manual page 57

"ISO-report single measurement" includes two sections:
DE* a*b* -solid density and dot gain.The dot gain is documented for 40 % and 80 % and
the midtone spread is visualized graphically.
1. Green dots indicate that the values are within tolerance
2. Display of the color gamut
3. Tonal % curves
4. Selection of measurement to be analyzed
5. Function "Mask ink zone" (see p. 49)
6. Switch between top side and reverse side (if available)
7. Prints reports

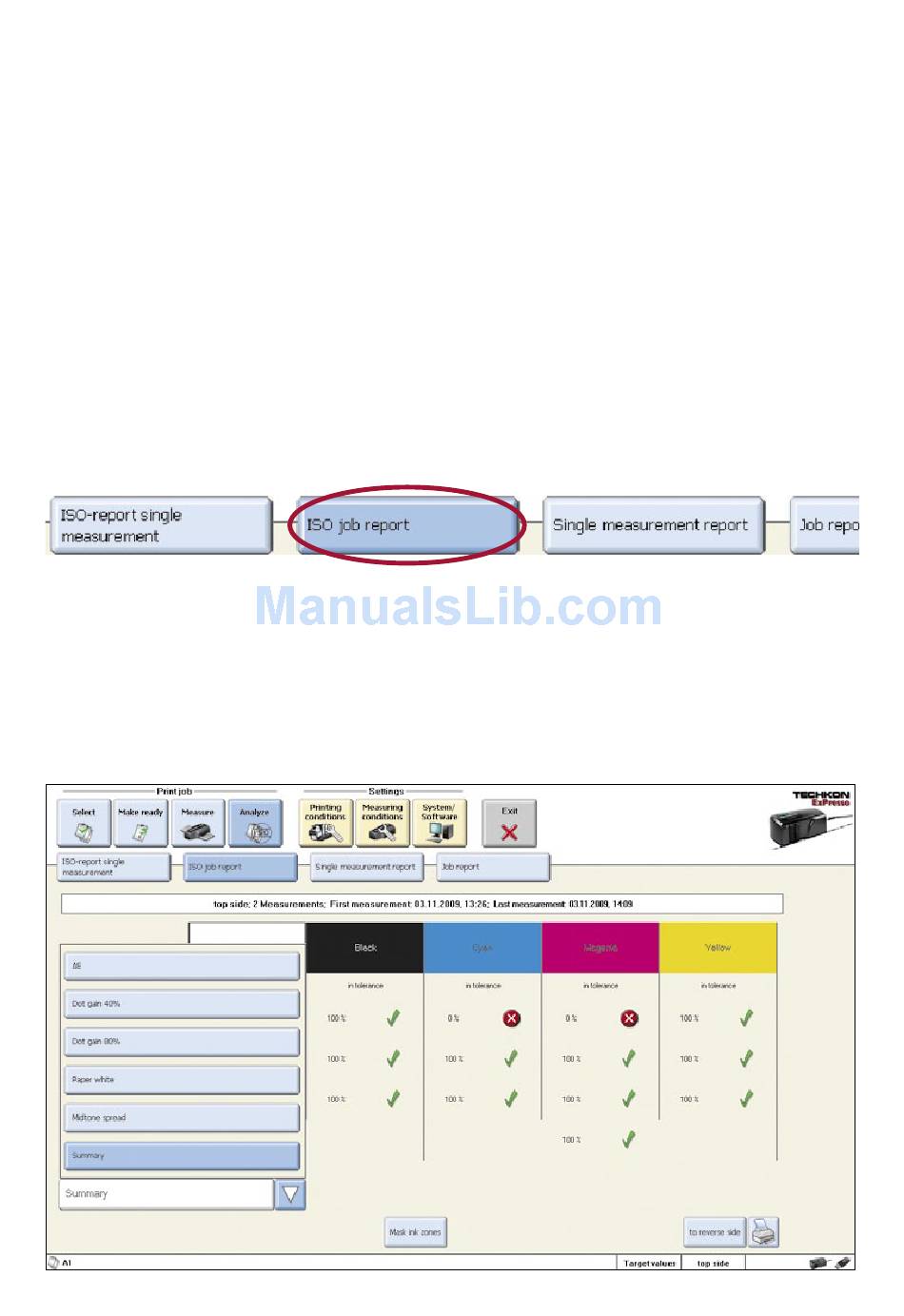

Analyze – ISO job report (ExPresso Pro)
The job report according to the ISO standard allows the documentation of the whole
printing process during the entire print job.You can choose between a summary (1.)
and the display of detailed reports of single parameters, which you can select from
the pull-down-window in the lower left corner of the menu window.
1.
Manual TECHKON SpectroJet Chapter 3 – How to use SpectroJet Page 57
