Manual TECHKON SpectroDens

3.8 Software module: PhotoLab

TECHKON PhotoLab is an optionally available program module for evaluating and
displaying L*a*b* color data graphically. Color differences between sample and refer-
ence colors can be analyzed. PhotoLab is only available in the SpectroDens Premium
version.

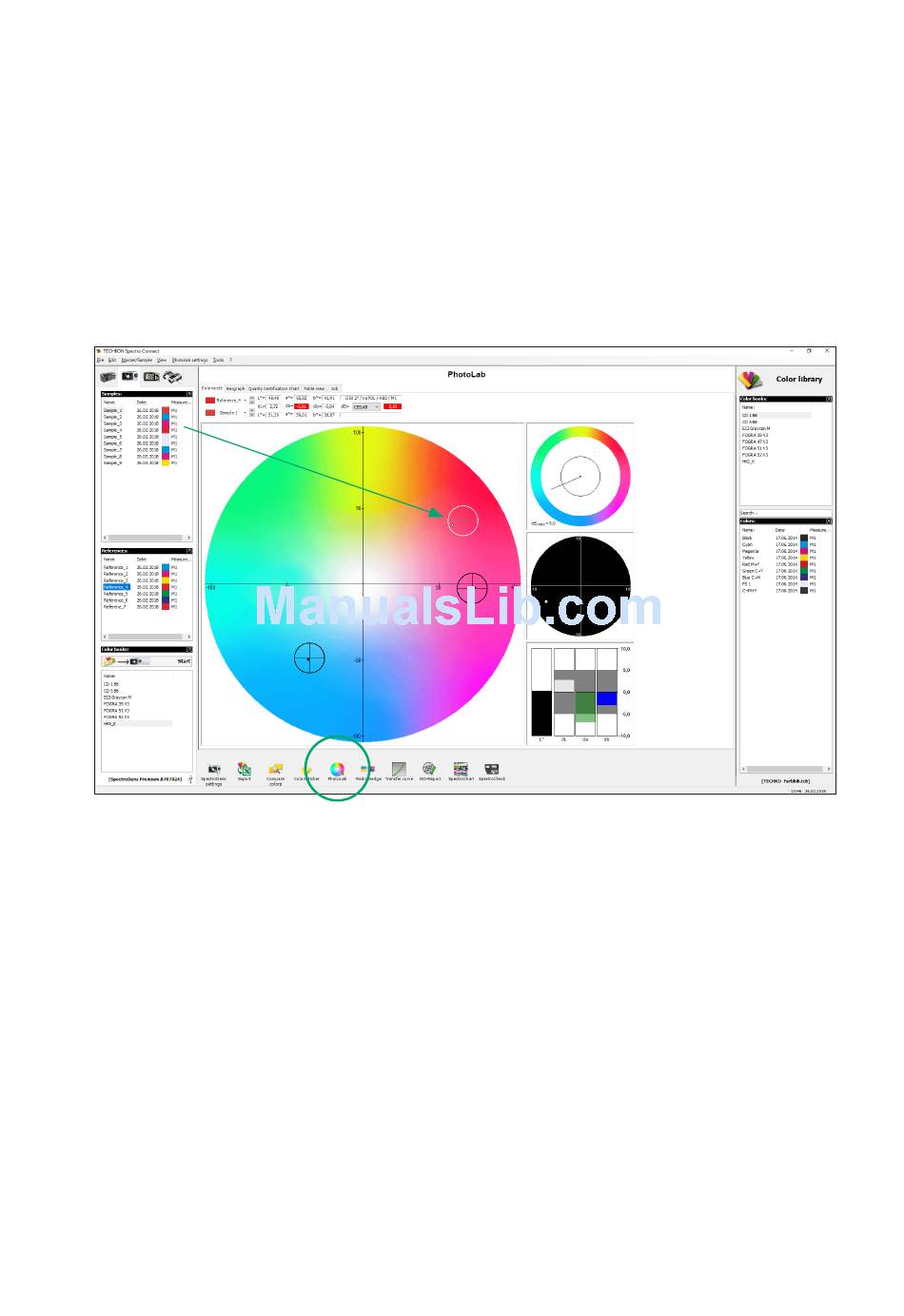

1. In the upper section of the module win-
dow, the color differences between sample
and reference are shown numerically.
2. Reference: viewfinder with tolerance circle
Sample: bold point
The current selected value is marked in white.
3. Color samples and references are directly
imported into PhotoLab by making measure-
ments with SpectroDens having it connected
to the PC via the USB-cable.
86
1.
2.
3.
4.
Furthermore, color values and complete color
books from the device memory or out of
the PC color library can be selected and be
moved by drag-and-drop with the mouse
pointer directly to the center of the display
where the L*a*b* color circle is.
A pop-up window will ask, if the values should
be used as sample or as reference values.
4. A mouse click on the program symbol
will start the plug-in PhotoLab within the
SpectroConnect environment.
