By clicking on the device icon in the right section of the menu bar (1.), one gets a
direct access to important device settings. A window is displayed with the submenus
"Measurement device / Update","Measurement settings" and "Export to other appli-
cations" (see p. 33 – 35).
Below the menu bar the program window (2.) is displayed which is activated by the
appropriate menu item.

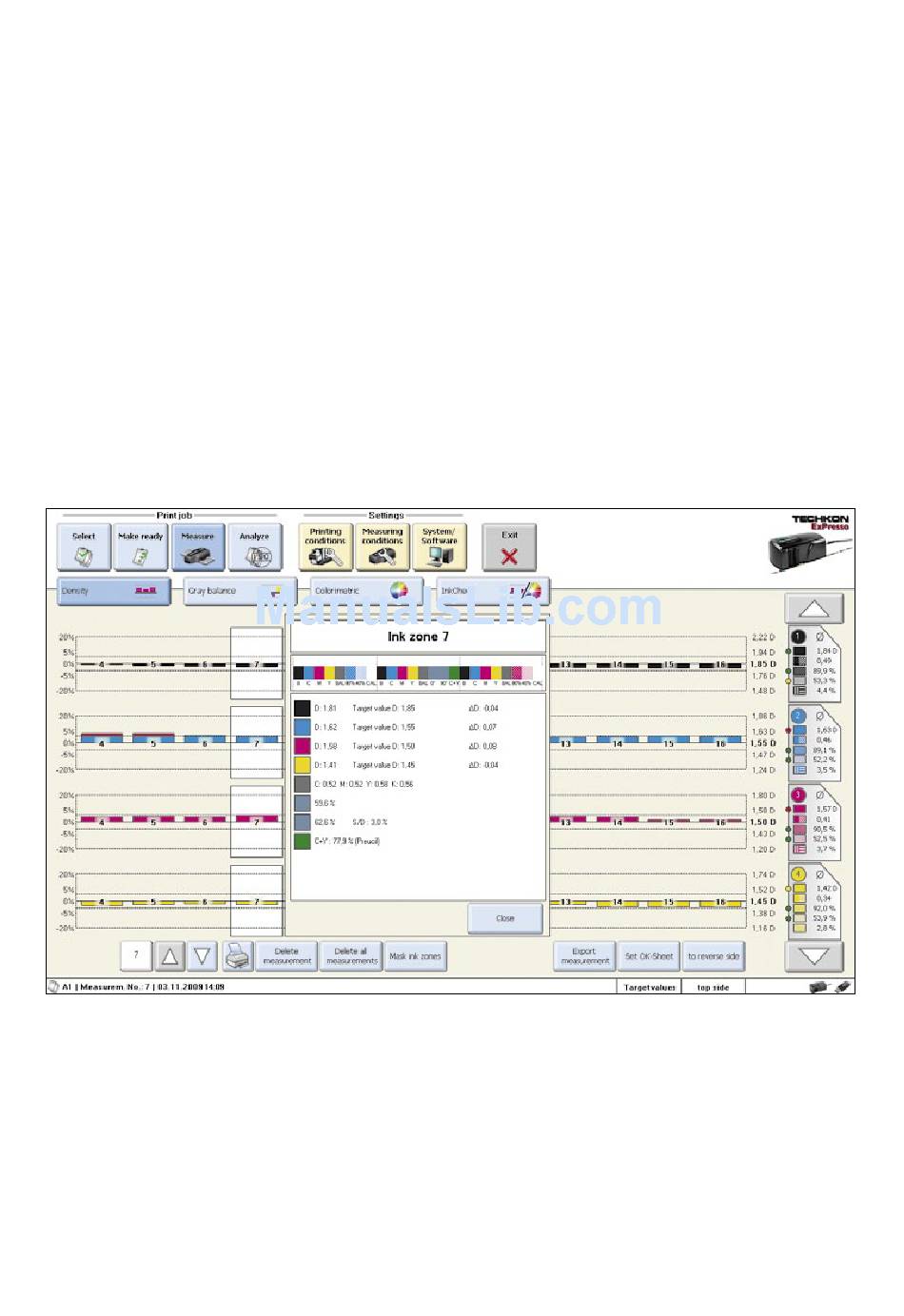

The following example shows the program window "Density" after a measurement
was carried out. In this program window a click on the bar graph opens a second
window displaying detailed measurement data of the ink zones.
The command line (3.) of the active program window is located at the bottom of
the program window.
2.
3.
The bottom area of the screen is a status line (4.), showing the connection status of
the measurement device (SpectroDrive, SpectroDrive Simulator or SpectroJet) and
of the USB-dongle at the right side. When moving the mouse pointer on the icons
of one of these components, you get additional information, e. g. the density- and
colorimetric-settings of the device or the software version.
